The UltraTech 8938 Drain Guard Economy Frame Model is an adjustable catch basin insert designed to capture sediment, debris, oil, and hydrocarbons from stormwater runoff before contaminants enter drainage systems. Its expandable metal frame adjusts to fit drain openings ranging from 16" x 20" to 28" x 36", reducing the need for multiple drain guard sizes across a facility. This version does not include overflow ports, providing maximum filtration area while retaining sediment, dirt, and other pollutants within the catch basin.
- Adjustable Economy Frame Design – Expandable metal frame adjusts from 16" x 20" up to 28" x 36" to accommodate a wide range of catch basin sizes without trimming or custom fitting
- No Overflow Port Configuration – Provides maximum available filtration surface area for pollutant capture where overflow bypass functionality is not required
- Oil and Sediment Capture – Filters sediment, dirt, sand, debris, oil, and hydrocarbons from stormwater runoff before entering drainage systems
- Nonwoven Geotextile Construction – Manufactured from durable polypropylene geotextile fabric designed for stormwater filtration and sediment control applications
- Multi-Drain Coverage – Supplied as a 10-pack for facilities, municipalities, and construction projects requiring filtration at multiple storm drain locations
Product Specifications:
| Model Number | 8938 |
| Product Type | Ultra-Drain Guard® Economy Frame Model – No Overflow Port |
| Drain Opening Range | 16" x 20" to 28" x 36" (406 x 508 mm to 711 x 914 mm) |
| Overall Depth | 18" (457 mm) |
| Oil Capture Capacity | Up to 0.87 Gallons (3.3 L) |
| Sediment Capacity | Up to 40 lbs. (18 kg) |
| Flow Rate | 650 GPM |
| Filter Material | Nonwoven Polypropylene Geotextile with Adjustable Metal Frame |
| Contaminants Captured | Oil, Hydrocarbons, Dirt, Sand, Sediment, Trash, and Debris |
| Frame Type | Adjustable Economy Metal Frame |
| Overflow Protection | No Overflow Port |

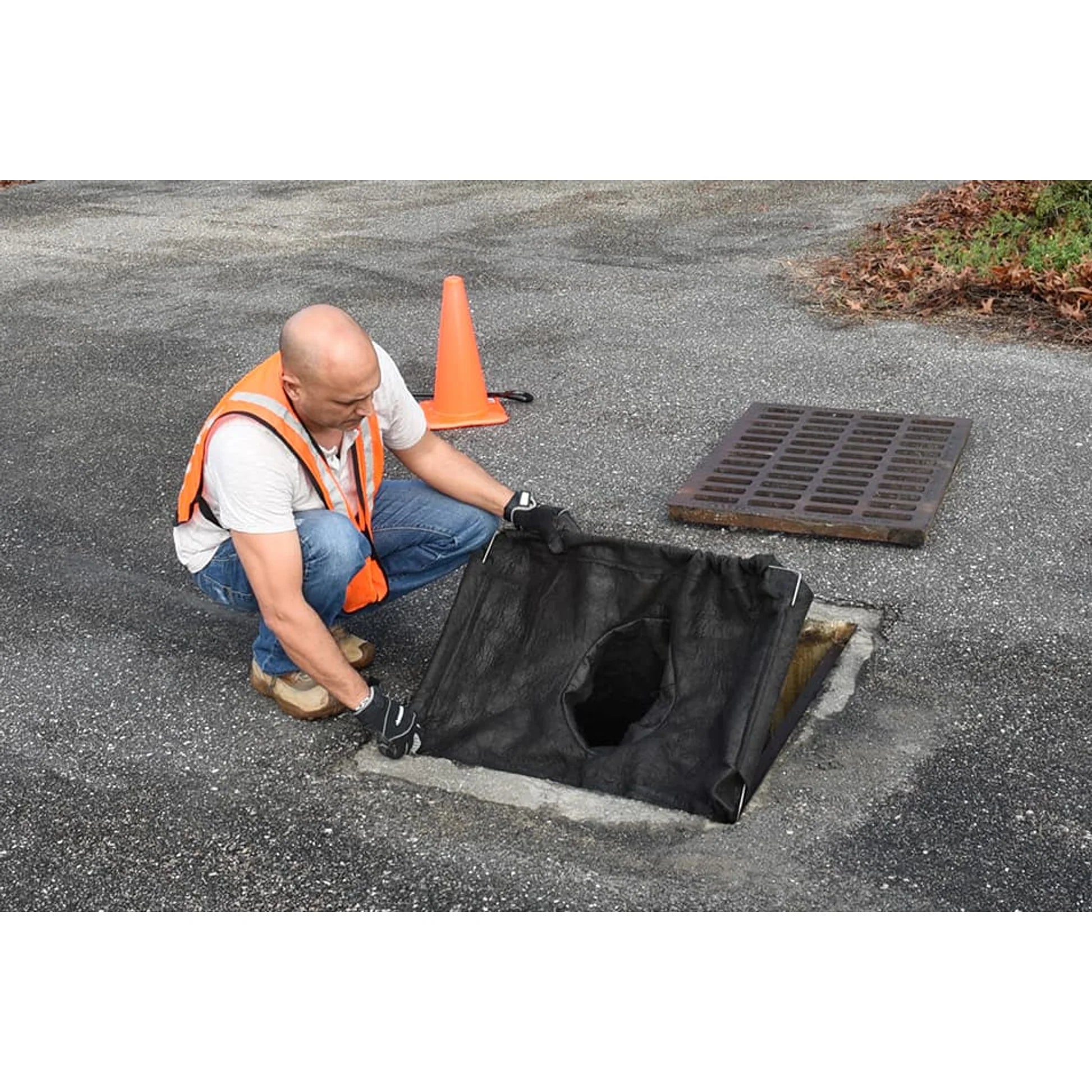

| Installation Method | Under Grate |
| Sediment Removal Efficiency | Greater Than 80% |
| Weight | 20 lbs. (9.1 kg) – Pack of 10 |
| Color | Black |
| Package Quantity | 10-Pack |
| Compliance | NPDES 40 CFR 122.26, SPCC, TMDL |
| UPC | 808416089387 |
| Country of Origin | Guatemala |
| Brand | UltraTech International |
