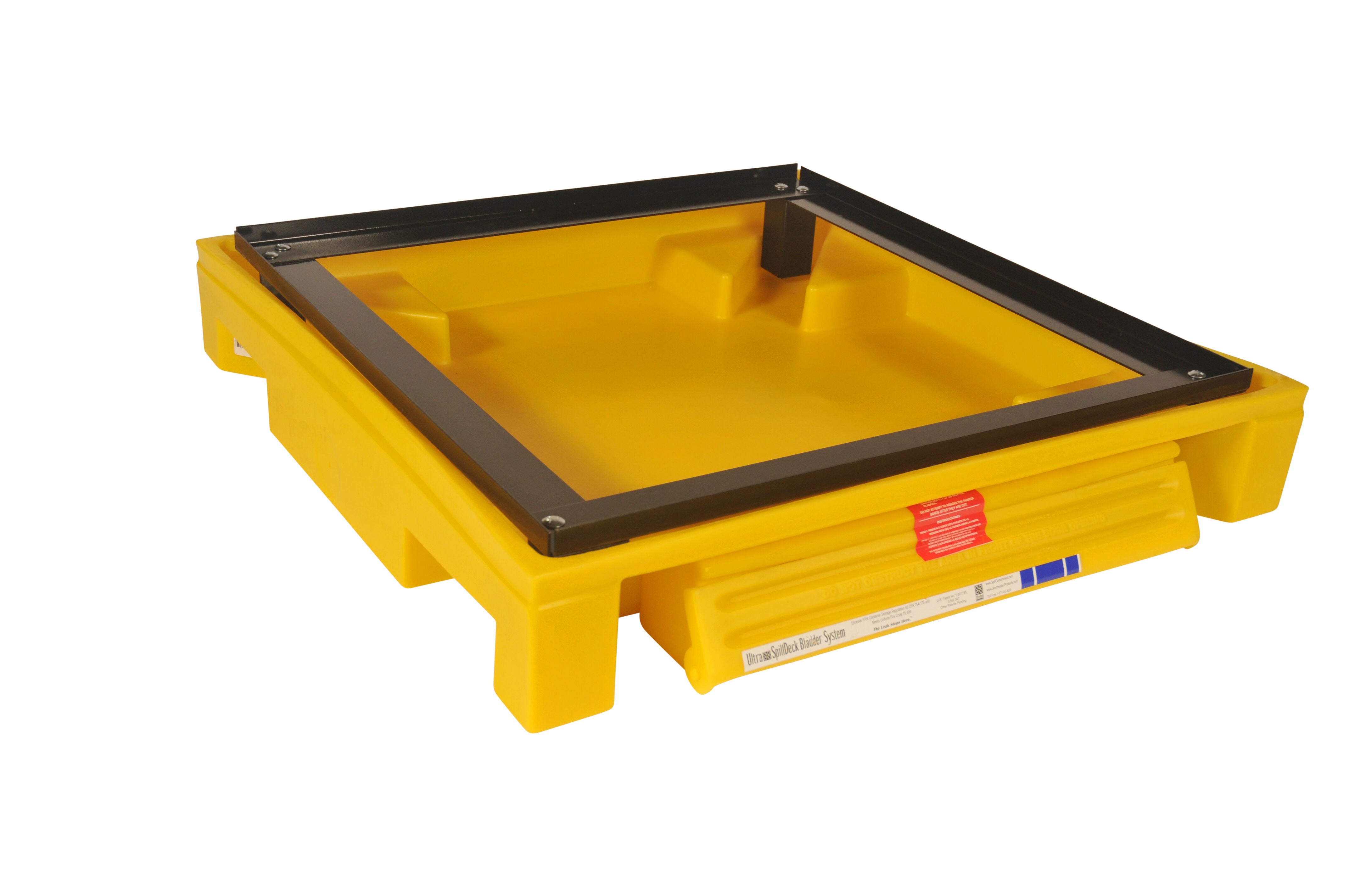

The UltraTech 2420 Safety Cabinet Bladder System is a compact secondary containment unit designed for installation beneath single-drum vertical safety cabinets. In the event of an internal leak or structural drum compromise, escaping liquids drain through the cabinet floor directly into a low-profile basin which deploys a hidden, heavy-duty polyethylene bladder once the primary sump capacity is reached. This deployment mechanism adds critical overflow containment volume to catch catastrophic releases without taking up additional permanent facility floor space.
Key Features
-
Automated Bladder Deployment: Features a concealed, industrial-grade polyethylene bladder that automatically unrolls and expands via hydrostatic pressure during a large-scale liquid breach.
-
Low-Profile Workspace Footprint: Keeps the safety cabinet baseline close to the ground, maintaining ergonomic loading heights and preventing overhead clearance issues.
-
Rigid Polyethylene Basin: The main structural containment frame is molded from high-density polyethylene (HDPE) to withstand mechanical impacts and resist aggressive industrial chemicals.
-
Universal Single-Drum Allocation: Form-engineered to sit precisely under standard one-drum vertical safety cabinets to maximize layout efficiency.
-
Compliance-Focused Architecture: Engineered to help facility installations satisfy EPA, SPCC, and local secondary containment codes for hazardous chemical storage.
| Specification | Data |
|---|---|
| Part Number | 2420 |
| Product Type | Safety Cabinet Bladder Containment System |
| Cabinet Compatibility | One-Drum (Vertical) Safety Cabinets |
| Material (Basin) | High-Density Polyethylene (HDPE) |
| Material (Bladder) | Heavy-Duty Polyethylene Film |
| Total Containment Capacity | Up to 65 Gallons (246.1 Liters) including bladder deployment |
| Rigid Basin Capacity | 15 Gallons (56.8 Liters) |
| Dimensions | 38 1/4" x 37 1/4" x 6 1/4" (972 x 946 x 159 mm) |
| Weight | 31.0 lbs (14.1 kg) |
