UltraTech 2396 Rack Sump, With Drain / Ball Valve Assembly

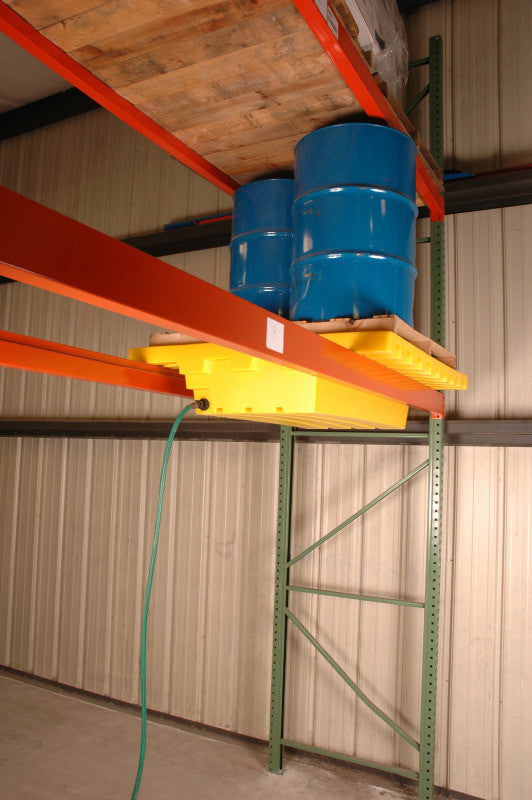

The UltraTech 2396 Ultra-Rack Sump with Drain and Ball Valve Assembly provides secondary spill containment for standard industrial warehouse racking systems. Fabricated from heavy-duty, corrosion-proof polyethylene, this low-profile containment unit intercepts drips, leaks, and catastrophic container failures before they can reach the warehouse floor. The integrated bottom-mounted ball valve assembly allows technicians to attach a standard 3/4-inch hose and safely drain captured fluids from elevated rack positions without displacing the sump.
Key Features
-

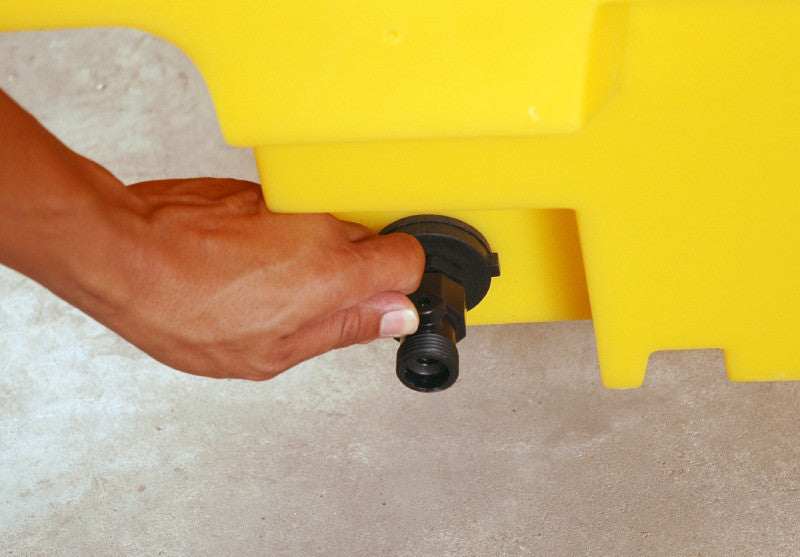

Integrated Drain & Ball Valve Assembly: Equipped with a bottom-mounted 3/4" ball valve that permits fluid extraction via standard industrial hoses, removing the need to dismount the sump during spill responses.
-

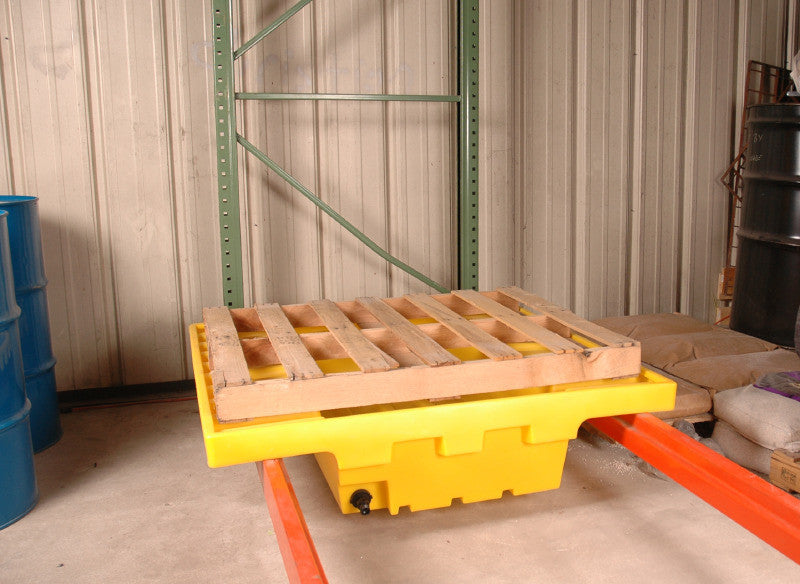

Low-Profile Racking Integration: Designed with a compact profile that fits cleanly into standard warehouse rack configurations, minimizing obstruction to adjacent storage tiers and allowing direct forklift access to wooden pallets.
-
All-Polyethylene Construction: Molded entirely from chemical-resistant, high-density polyethylene that will not rust, corrode, or degrade when exposed to aggressive industrial chemicals, acids, and fuels.
-
Translucent Inspection Walls: Formulated with a bright yellow translucent wall design to facilitate immediate visual inspection and leak detection from ground level.
-

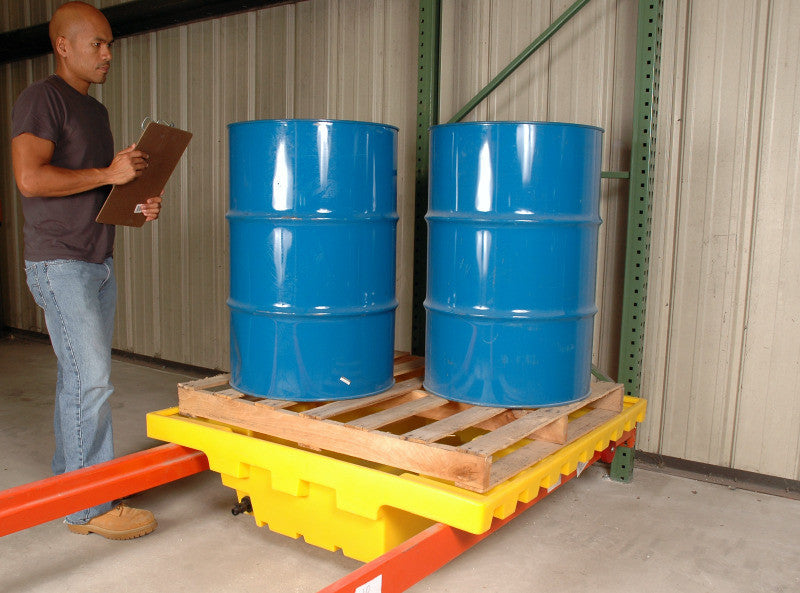

Regulatory Environmental Compliance: Engineered with a 66-gallon containment capacity that meets EPA Container Storage Regulation 40 CFR 264.175 and SPCC requirements for holding up to four 55-gallon drums.
- Manufacturer
- UltraTech International
- Part Number
- 2396
- Model Type
- Ultra-Rack Sump with Drain / Ball Valve
- Material Construction
- High-Density Polyethylene (HDPE)
- Containment Capacity
- 66.00 gal (250.0 L)
- Overall Dimensions
- 53.00" L x 49.00" W x 11.00" H (1,346 mm x 1,245 mm x 279 mm)
- Drain Connection
- 3/4" (19 mm) NPT Ball Valve Assembly
- Load Capacity (Static)
- Supports standard 4-drum pallet configurations
- Net Weight
- 36.00 lbs (16.3 kg)
- Color / Transparency
- Translucent Safety Yellow
- Regulatory Standards
- EPA 40 CFR 264.175, SPCC Compliant
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
