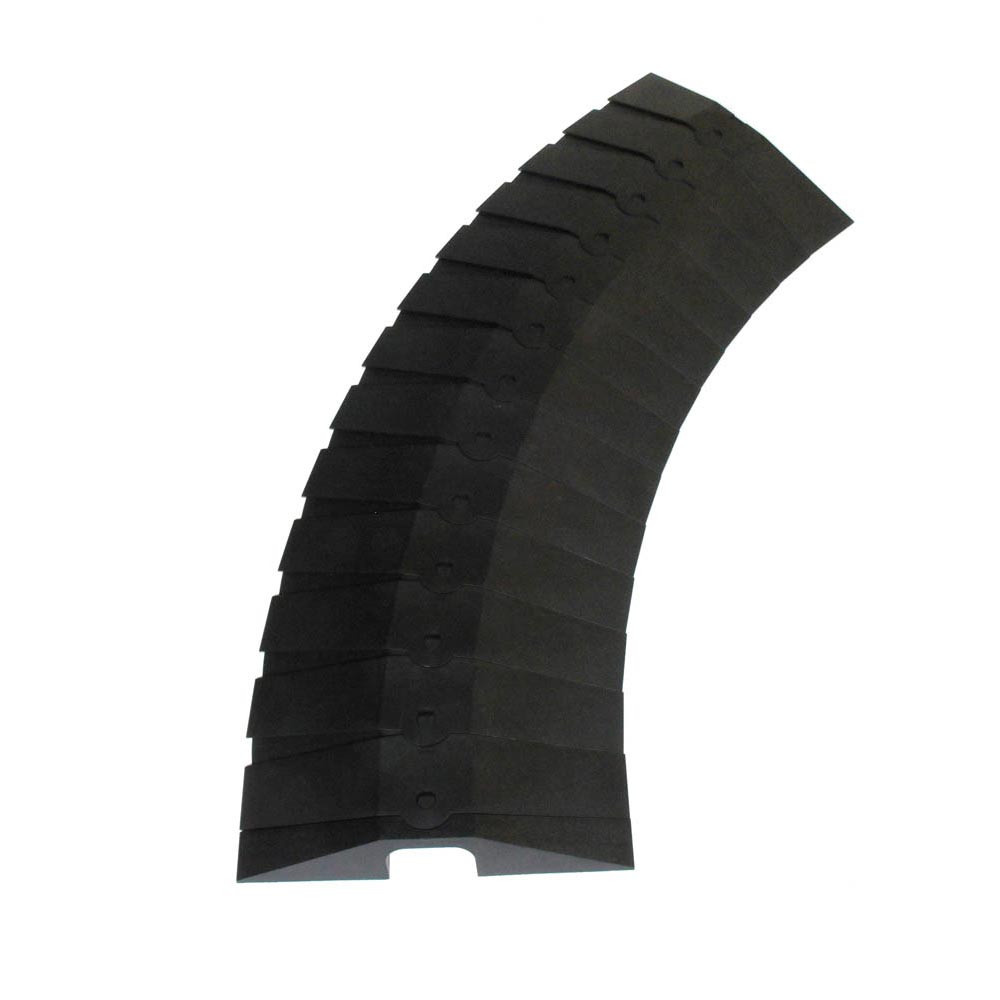

The UltraTech 1842 Sidewinder System (Large, Black) is an articulating cable protection track engineered to shield large-diameter wiring and hoses from high-volume industrial floor traffic. This modular system links together to form a flexible, custom-length run that curves dynamically around machinery and structural layout barriers. Supplied complete with matching end caps, it ensures a tapered, code-compliant transition at both ends of the run to prevent tripping hazards and preserve cable integrity under heavy rolling loads.
Key Features
-
Articulating Flexible Design: Intricate interlocking segments pivot smoothly, allowing the protection system to safely curve around obstacles and maintain full floor contact.
-
High-Impact Polyolefin Construction: Engineered from heavy-duty polymer materials that withstand crushing forces, mechanical abrasions, and aggressive shop chemicals.
-
Integrated End Cap Set: Includes tapered terminal end caps to provide a smooth ramp down to the floor, optimizing safety for wheeled carts and industrial personnel.
-
Heavy Industrial Load Rating: Robust internal structure supports recurring rolling warehouse traffic, including hand trucks, heavy-duty utility dollies, and pallet jacks.
-
Tool-Free Assembly: Modular design allows for rapid manual adjustment, expansion, or reconfiguration to match shifting facility floor layouts.
| Specification | Data |
|---|---|
| Part Number | 1842 |
| Product Type | Articulating Cable Protection System |
| System Size | Large Profile |
| Material | High-Impact Polyolefin |
| Color | Black |
| Dimensions (Full Assembly) | 40" x 13" x 2 1/4" (1,016 x 330 x 57 mm) |
| Internal Channel Dimensions | 3" W x 1 1/2" H (76 x 38 mm) |
| Components Included | Sidewinder Track Segments, (1) Male End Cap, (1) Female End Cap |
| Weight | 10.0 lbs (4.5 kg) |
