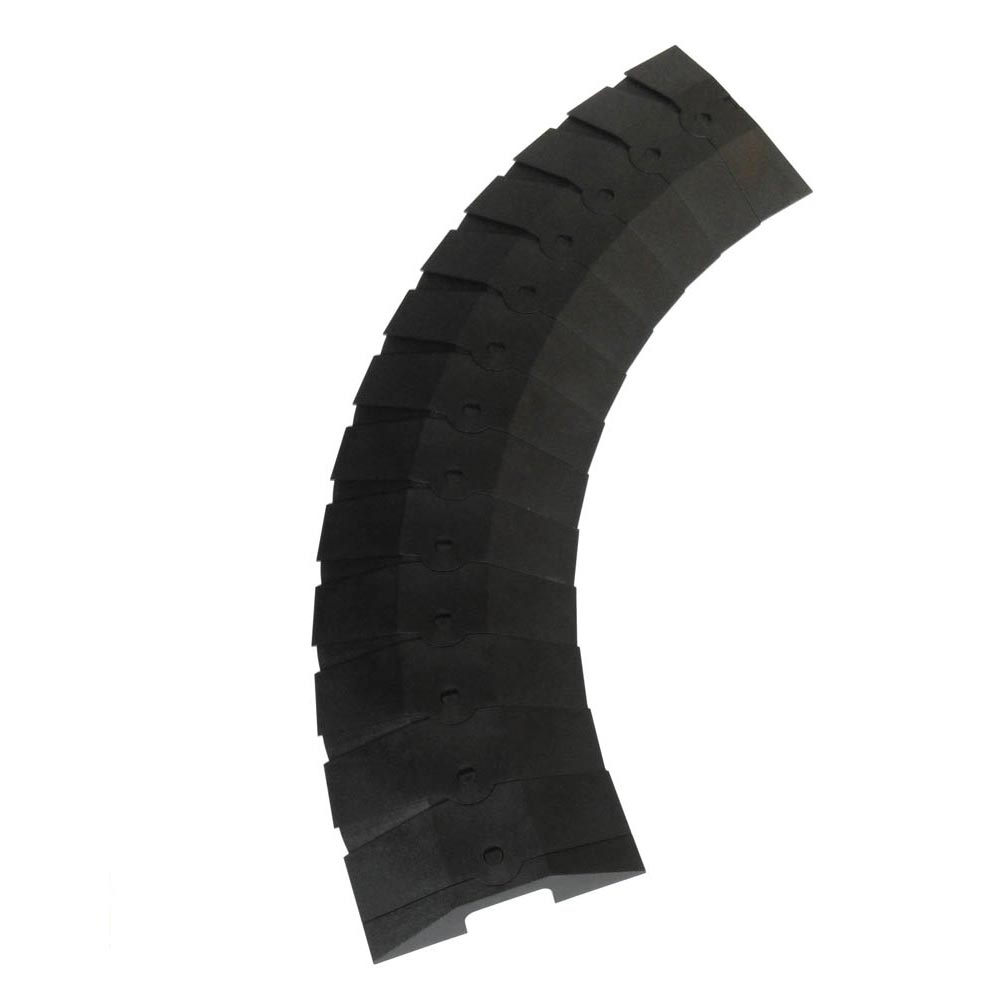

The UltraTech 1832 Sidewinder System (Medium, Black) is an articulating cable protection track engineered to shield medium-profile wiring, power cords, and hoses from industrial floor traffic. This modular system utilizes interlocking segments that pivot smoothly, allowing facilities to create a flexible, custom-length track that curves dynamically around machinery, columns, and work cells. Supplied complete with matching terminal end caps, it ensures a tapered, code-compliant transition that minimizes tripping hazards while maintaining systemic infrastructure integrity.
Key Features
-
Articulating Flexible Design: Precision-molded interlocking segments pivot smoothly, enabling the protection system to safely curve around pillars, equipment foundations, and tight corners.
-
High-Impact Polyolefin Construction: Engineered from heavy-duty polymer materials that withstand crushing forces, mechanical abrasions, and aggressive shop chemicals.
-
Integrated End Cap Set: Includes tapered terminal end caps to provide a smooth ramp down to the floor substrate, optimizing safety for rolling carts and foot traffic.
-
Industrial Load Capacity: Robust internal architecture supports recurring rolling warehouse traffic, including hand trucks, parts carts, and light-duty material handling dollies.
-
Tool-Free Assembly: Modular design allows for rapid manual adjustment, expansion, or reconfiguration to match shifting facility floor layouts.
| Specification | Data |
|---|---|
| Part Number | 1832 |
| Product Type | Articulating Cable Protection System |
| System Size | Medium Profile |
| Material | High-Impact Polyolefin |
| Color | Black |
| Dimensions (Full Assembly) | 40" x 10" x 1 5/8" (1,016 x 254 x 41 mm) |
| Internal Channel Dimensions | 3" W x 3/4" H (76 x 19 mm) |
| Components Included | Sidewinder Track Segments, (1) Male End Cap, (1) Female End Cap |
| Weight | 7.5 lbs (3.4 kg) |
