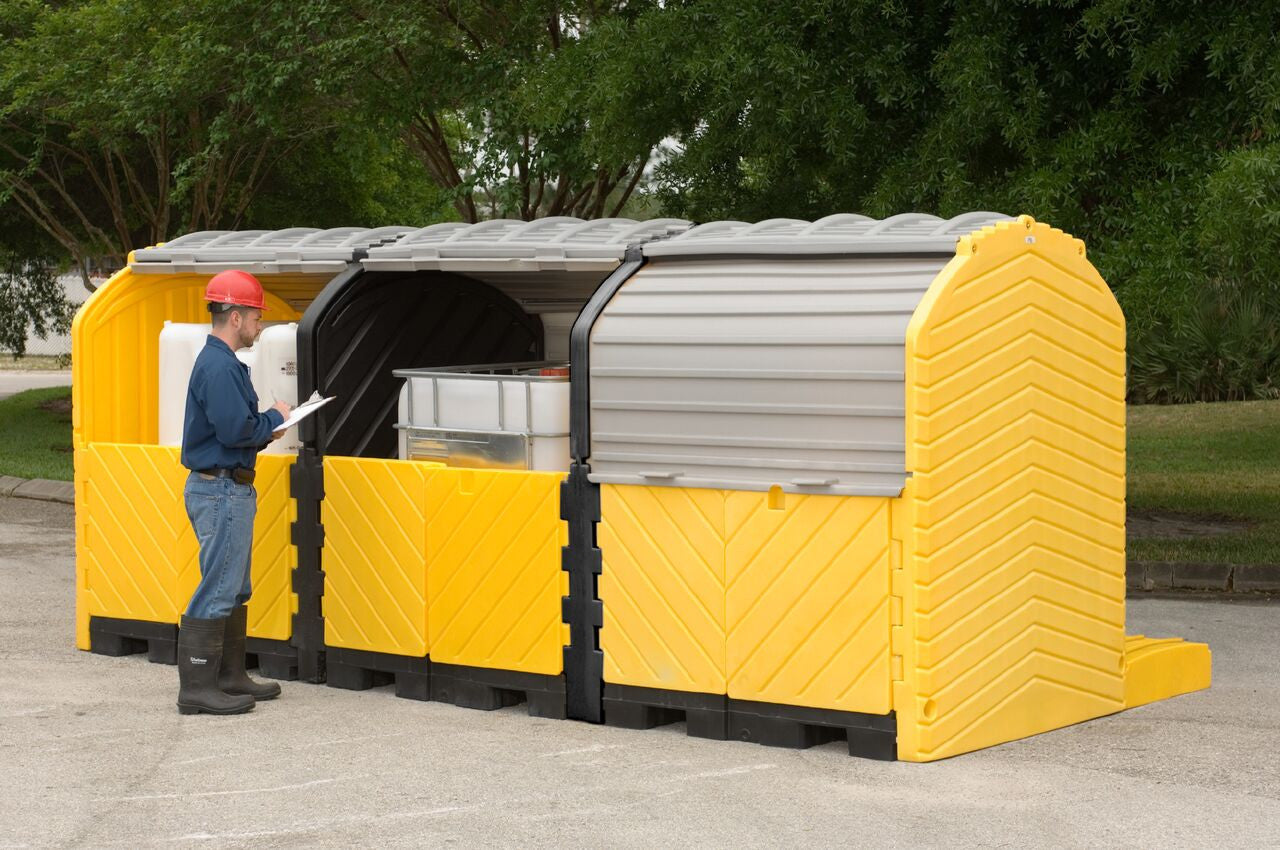

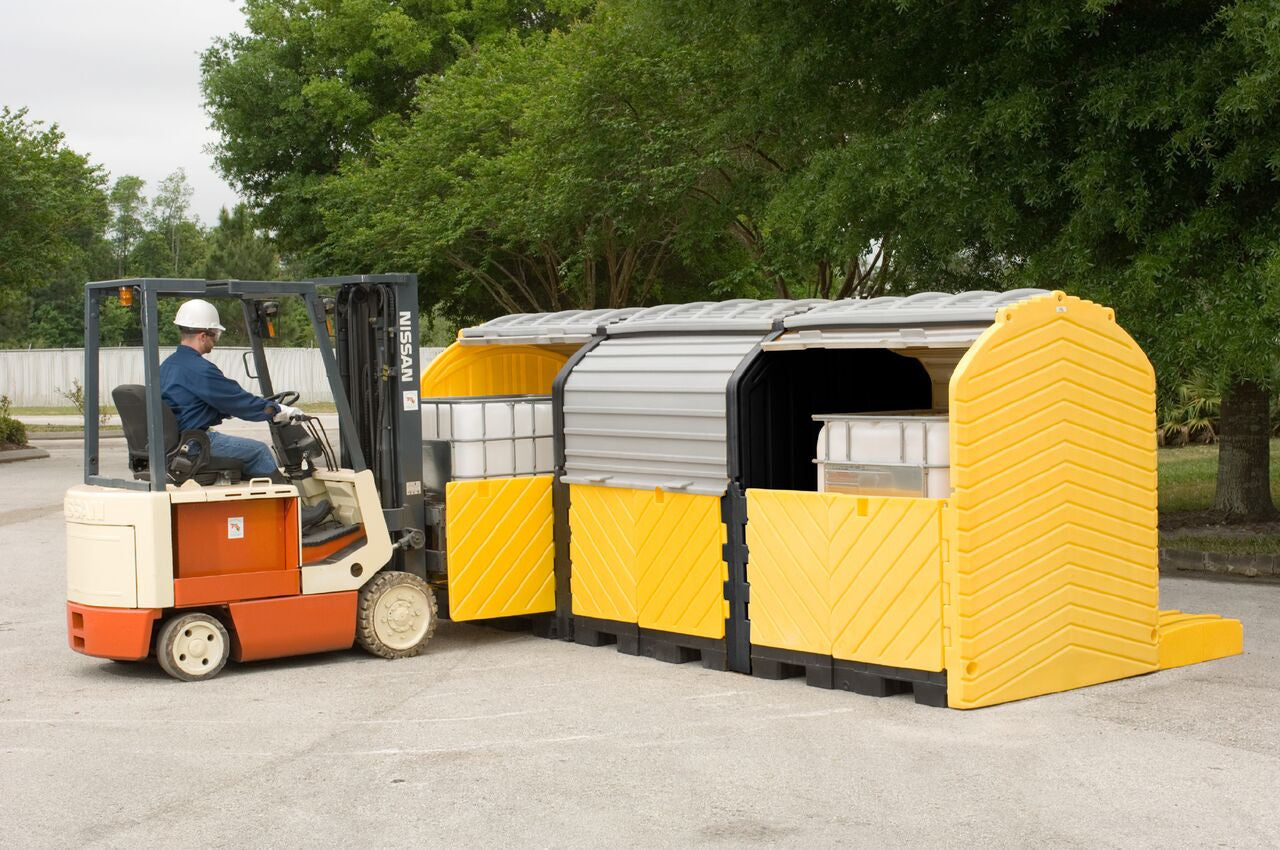

The UltraTech 1166 is a 3-tank outdoor modular spill containment system designed for facilities storing multiple IBC tanks in open or exposed environments. All-polyethylene construction resists UV rays, rust, corrosion, and most chemicals for a long, trouble-free service life. It meets SPCC and EPA Container Storage Regulation 40 CFR 264.175 and helps meet Stormwater Management Regulations NPDES 40 CFR 122.26, and is considered a Best Management Practice (BMP) for effective stormwater management.
- 3-Tank Outdoor Configuration – Combines a 225-gallon Hard Top Plus unit with two 65-gallon expansion tanks into a modular system with a total containment capacity of 355 gallons (1,344L).
- Heavy-Duty Load Rating – Each individual spill pallet supports a Uniformly Distributed Load of 9,000 lbs, rated for fully loaded IBC tanks in continuous service.
- Flow-Through Bulkhead System – Flow-through bulkhead fittings (1.25" diameter) connect spill pallets together, channeling spills throughout the system and borrowing containment capacity from adjacent units.
- Expandable Configuration – Optional Extender Kits (Part# 9658) allow the addition of one tank per kit to scale the system as storage needs grow.

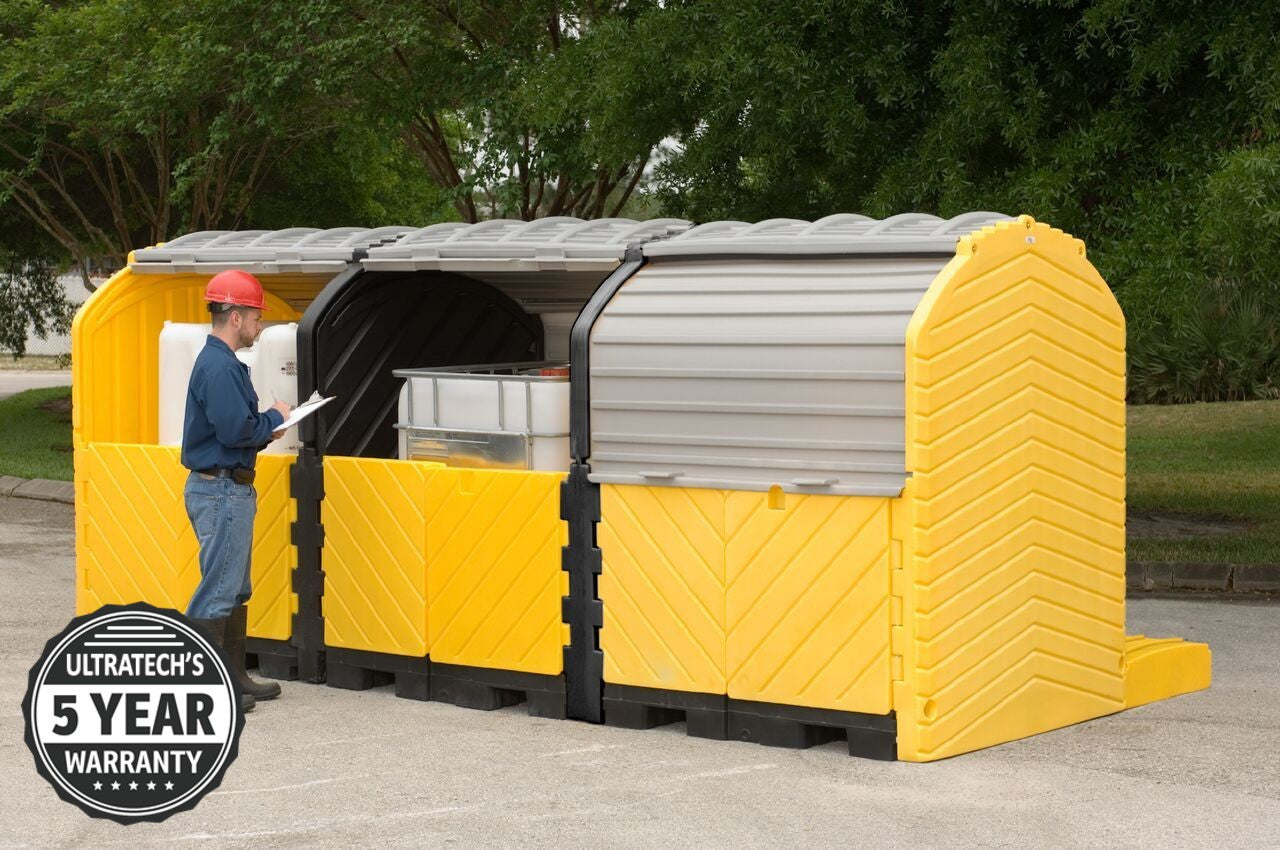

- 5-Year Warranty – Protected by a 5-year warranty against material or workmanship defects, made in the USA
Product Specifications:
| Model Number | 1166 |
| Product Type | Modular IBC Spill Pallet – 3-Tank, Outdoor Model |
| Dimensions | 188" L x 93" W x 79" H (4,776 x 2,363 x 2,007 mm) |
| Containment Capacity | 355 Gallons (1,344 L) |
| Per-Pallet Capacity | 75 Gallons per Unit (62" x 62" x 8.75"H) |
| Uniformly Distributed Load | 9,000 lbs (4,083 kg) per Pallet |
| Weight | 1,258 lbs (571 kg) |
| Material | 100% Polyethylene (HDPE) |
| Fitting Size | 1.25" Diameter Flow-Through Bulkhead Fittings |
| Required Accessory | Part #1118 Assembly Kit (Hole Saw, Arbor, 2x Tightening Tools) |
| Optional Accessories | Part #9658 Extender Kit / Part #1124 Expansion Tank / Part #1117 Bulkhead Fittings |
| Compliance | EPA 40 CFR 264.175 / SPCC / NPDES 40 CFR 122.26 |
| Warranty | 5 Years Against Material or Workmanship Defects |
| Color | Yellow |
| Country of Origin | USA |
| Brand | UltraTech International |
