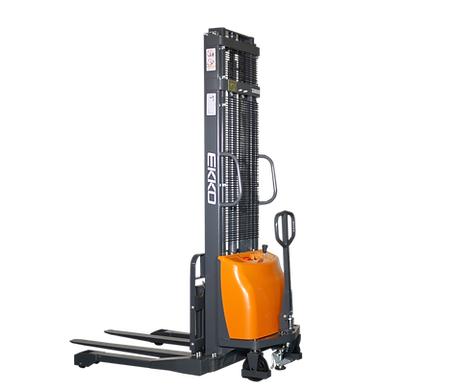

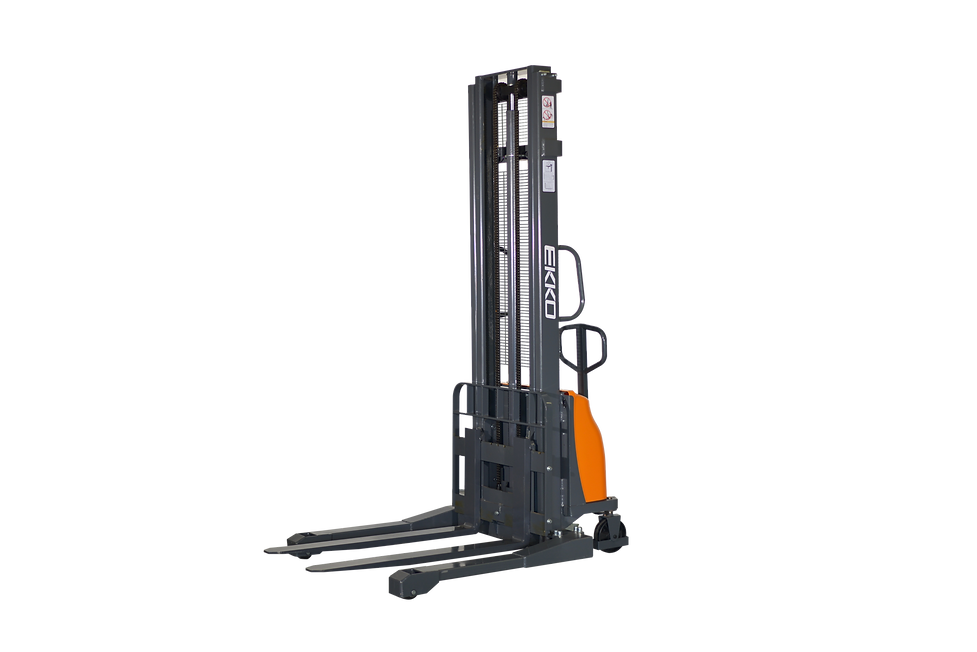

The EKKO EA15A-138 Semi-Electric Straddle Stacker. A true hybrid, offering both forklift and pallet stacker functionality. It's your all in one solution for efficient truck loading, dock work, stockroom organization, and warehouse operations
Built for dependable performance, this machine features a durable steel frame and high quality drive components. It's designed to handle any terrain, withstand continuous use, absorb impacts, and adapt to directional changes
- Load Capacity 3300lbs.
- Raised Height 138" (11.5ft)
- Adjustable Forks 8.66-32”
- Adjustable Legs 35-51”
- Fork Length 45"
- Power Lifting
- Manual Drive
- Internal Charger 12V/15A Included
- Battery 12V 120Ah Included
- Ergonomic Handle
- Steel Construction
- Robotic Welding
Specifications
|
Model |
|
EA15A-138 |
|
Load Capacity |
(lbs) |
3300 |
|
Lifting height Max. |
(in) |
138 |
|
Load center distance |
(in) |
20 |
|
Fork length |
(in) |
45 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.66-32 |
|
Lowered fork height |
(in) |
2.6 |
|
Adjustable legs |
(in) |
35-51 |
|
Turning radius |
(in) |
59 |
|
Overall length |
(in) |
70 |
|
Overall width max |
(in) |
59 |
|
Extended mast height |
(in) |
167 |
|
Lowered mast height |
(in) |
95 |
|
Battery Voltage |
(in) |
12V/120AH |
|
On-Board Charger |
|
12V/15A |
|
Lift Motor |
KW |
2.2 |
|
Service Weight |
(lbs) |
1234 |
