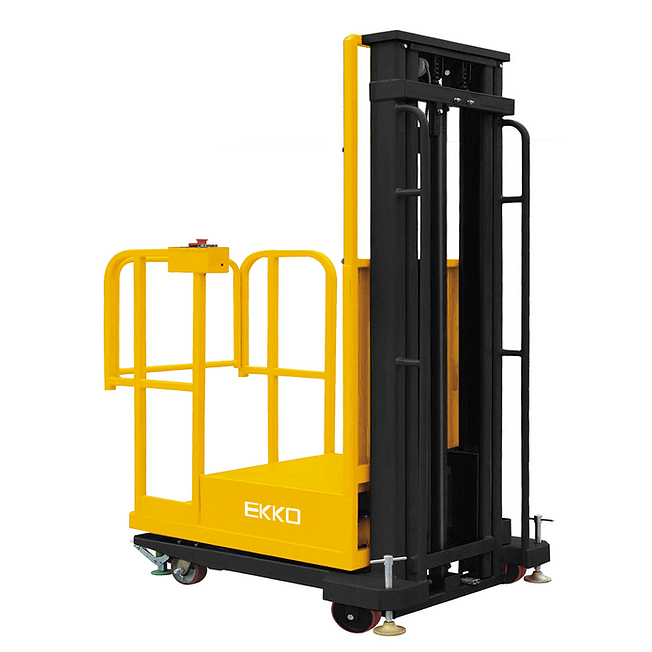

EKKO EOPS20-177 Semi-Electric Order Picker, 177" Lift Height
The EKKO EOPS20-177 is a semi-electric stand-on order picker designed for warehouses, distribution centers, retail stockrooms, and storage facilities requiring access to elevated racking up to 177 inches without ladders or manual lifting platforms. The unit uses electric lift powered by an onboard 12V / 120Ah lead acid battery with an internal charger, while floor travel is manually propelled, offering a cost-effective and low-maintenance solution for light-duty picking operations at the top tier of the EOPS20 series lift range. Rated for 440 lbs with a service weight of 925 lbs, it features overload protection, dual brakes, an emergency stop/down button, safety brackets, and polyurethane wheels on a robotically welded steel frame. Battery and internal charger are included standard with a 3-year limited warranty.
- 440 lb. Load Capacity with 177 in. Maximum Lift Height - Rated for 440 lbs with a maximum lift height of 177 in. (14.75 ft.), the highest lift variant in the EOPS20 series, suited for retrieving items from upper-level warehouse racking systems
- Semi-Electric Operation with Internal Charger Included - Electric lift powered by a 1.6 kW lift motor and 12V / 120Ah lead acid battery with an included internal charger; floor travel is manual, eliminating drive motor complexity and reducing maintenance requirements
- Integrated Safety Systems - Equipped with overload protection, dual brakes, safety brackets, and an emergency stop/down button as standard features to support safe operator positioning during elevated order picking cycles
- Compact Footprint for Narrow Aisle Use - At 33.46 in. overall width, 51.18 in. overall length, and a 53.46 in. wheelbase, the EOPS20-177 fits standard warehouse aisle configurations and retail backroom environments without modification
- Polyurethane Wheels on Robotic Welded Steel Frame - Polyurethane drive and bearing wheels provide smooth floor movement and long service life on finished concrete surfaces, supported by a robotically welded steel frame and a 3-year limited warranty
- Model Number
- EOPS20-177
- Product Type
- Semi-Electric Stand-On Order Picker
- Load Capacity
- 440 lbs
- Lift Height
- 177 in.
- Overall Height (Lowered)
- 78.54 in.
- Overall Length
- 51.18 in.
- Overall Width
- 33.46 in.
- Wheelbase
- 53.46 in.
- Track Width
- 37.8 in.
- Service Weight
- 925 lbs
- Max Travel Speed
- 8 km/h (manual propulsion)
- Power Type
- Semi-Electric (Electric Lift / Manual Travel)
- Battery
- 12V / 120Ah Lead Acid (Included)
- Charger
- Internal (Included)
- Lift Motor
- 1.6 kW
- Drive Wheel Size
- 9.84 in. x 5 in.
- Bearing Wheel Size
- 5.9 in. x 3.23 in.
- Tire Type
- Polyurethane
- Safety Features
- Overload Protection, Dual Brakes, Safety Brackets, Emergency Stop/Down Button
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
