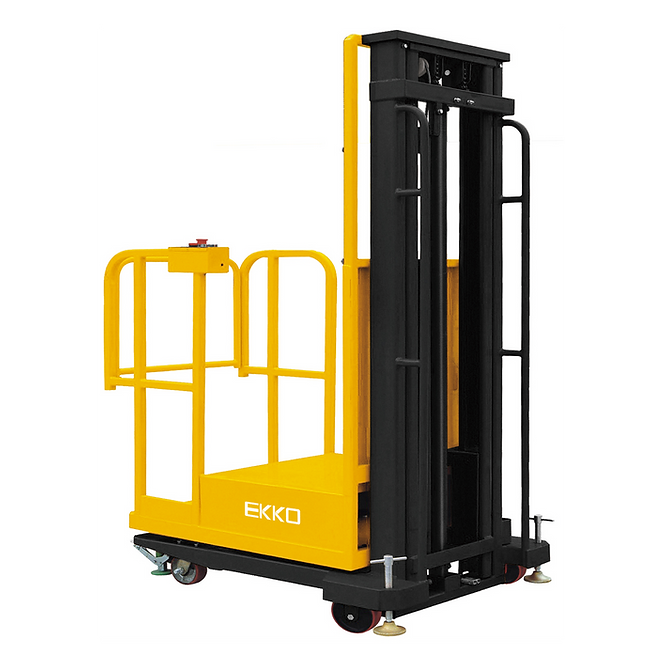

The EKKO EOPS20-157 is a semi-electric stand-on order picker designed for warehouses, distribution centers, retail stockrooms, and storage facilities where operators need to retrieve items from elevated racking up to 157 inches without ladders or manual lifting. The unit uses electric lift powered by an onboard 12V / 120Ah lead acid battery with an internal charger, while floor travel is manually propelled, providing a low-cost, low-maintenance solution for light-duty picking operations. Rated for 440 lbs with a service weight of 837 lbs, it features overload protection, dual brakes, an emergency stop/down button, safety brackets, and polyurethane wheels on a robotically welded steel frame. Battery and internal charger are included standard with a 3-year limited warranty.
- 440 lb. Load Capacity with 157 in. Maximum Lift Height - Rated for 440 lbs with a maximum lift height of 157 in. (13.1 ft.), providing access to upper-level warehouse racking where the EOPS20-130 variant's 130 in. reach is insufficient
- Semi-Electric Operation with Internal Charger Included - Electric lift powered by a 1.6 kW lift motor and 12V / 120Ah lead acid battery with an included internal charger; floor travel is manual, reducing drivetrain complexity and long-term maintenance costs
- Integrated Safety Systems - Equipped with overload protection, dual brakes, safety brackets, and an emergency stop/down button as standard features to support safe operation during elevated order picking cycles
- Compact Footprint for Narrow Aisle Use - At 33.46 in. overall width, 51.18 in. overall length, and a 53.46 in. wheelbase, the EOPS20-157 is sized for standard warehouse aisle configurations and retail backroom environments
- Polyurethane Wheels on Robotic Welded Steel Frame - Polyurethane drive and bearing wheels provide smooth floor movement and long service life, supported by a high-strength steel frame built with robotic welding and a 3-year limited warranty
Product Specifications:
| Model Number | EOPS20-157 |
| Product Type | Semi-Electric Stand-On Order Picker |
| Load Capacity | 440 lbs |
| Lift Height | 157 in. |
| Overall Height (Lowered) | 71.85 in. |
| Overall Length | 51.18 in. |
| Overall Width | 33.46 in. |
| Wheelbase | 53.46 in. |
| Track Width | 37.8 in. |
| Service Weight | 837 lbs |
| Max Travel Speed | 8 km/h (manual propulsion) |
| Power Type | Semi-Electric (Electric Lift / Manual Travel) |
| Battery | 12V / 120Ah Lead Acid (Included) |
| Charger | Internal (Included) |
| Lift Motor | 1.6 kW |
| Drive Wheel Size | 9.84 in. x 5 in. |
| Bearing Wheel Size | 5.9 in. x 3.23 in. |
| Tire Type | Polyurethane |
| Safety Features | Overload Protection, Dual Brakes, Safety Brackets, Emergency Stop/Down Button |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
