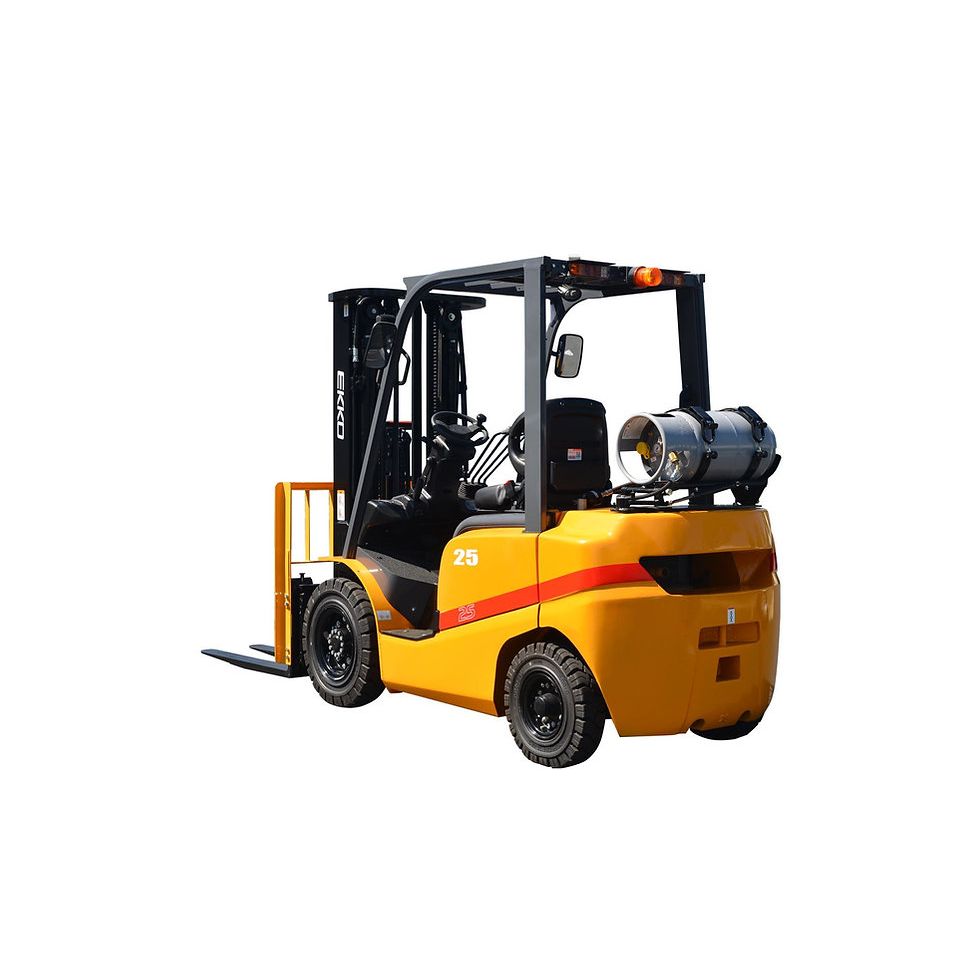

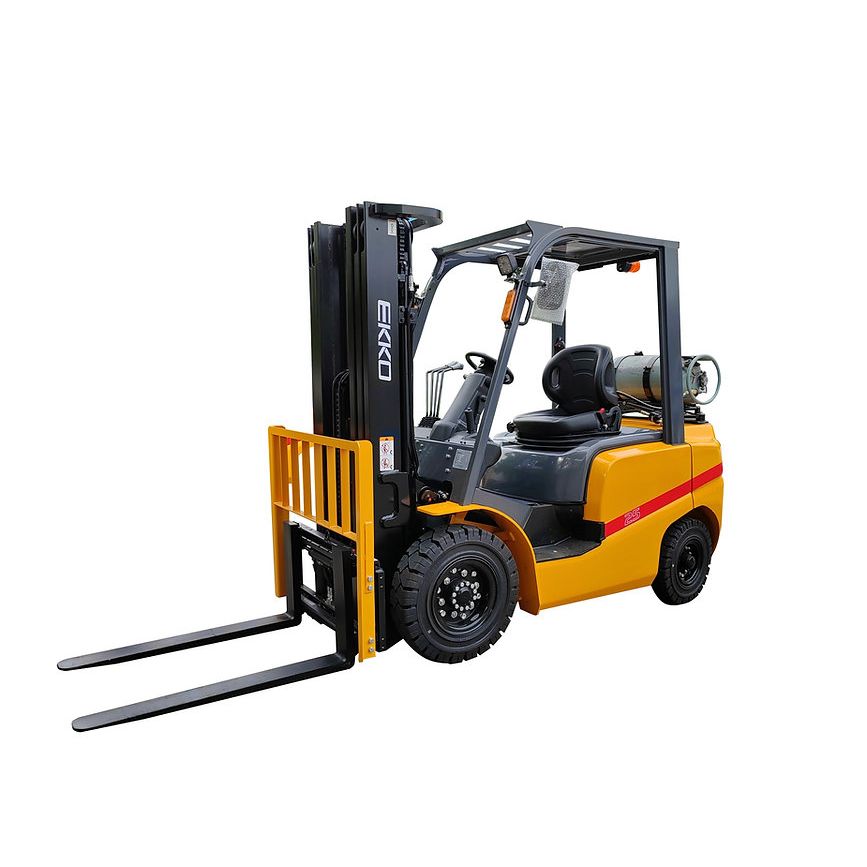

EKKO EK20TLP Pneumatic Propane Forklift (LPG) 4,000 lbs Cap, 185" Lift Height
The EKKO EK20TLP is a liquid propane 4-wheel counterbalanced forklift designed for material handling, warehousing, and distribution operations requiring dependable performance across indoor and outdoor environments. Powered by a Kubota or PSI 2.4L engine rated at 63 HP and compliant with Tier 4 EPA and CARB 4 emissions standards, the unit delivers a 4,000 lb. load capacity with a maximum lift height of 185 inches. Standard equipment includes a Cascade side shift, Shimadzu 4SV 4-way hydraulic valve pre-plumbed, solid pneumatic tires, and a full suspension cab with electro-hydraulic directional controls. This model is suited for procurement by warehouse operators, distribution centers, and industrial facilities requiring a compact, fuel-efficient propane forklift with a proven compliance and equipment package.
- 4,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 4,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and free lifting height of 43.7 in.
- Tier 4 EPA and CARB 4 Compliant Engine - Kubota or PSI 2.4L LPG engine produces 63 HP at 2,700 RPM and meets current Tier 4 EPA and California CARB 4 emissions requirements for indoor and outdoor operation
- Solid Pneumatic Tires with All-Surface Stability - 7.00-12-12PR front and 6.00-9-10PR rear solid pneumatic tires deliver consistent traction on concrete, asphalt, and uneven outdoor surfaces without flat risk
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4SV 4-way valve come pre-plumbed for precise load positioning and responsive mast control out of the box
- Compact Footprint for Tight Aisle Operation - At 96.8 in. body length (without forks), 45.2 in. width, and 62.9 in. wheelbase, the EK20TLP is sized for maneuvering in standard warehouse aisles and dock areas
- Model Number
- EK20TLP
- Product Type
- 4-Wheel Liquid Propane (LPG) Counterbalanced Forklift
- Load Capacity
- 4,000 lbs
- Load Center
- 24 in.
- Lift Height
- 185 in.
- Free Lifting Height
- 43.7 in.
- Overall Height with Forks Lifted
- 225 in.
- Mast Overall Height (Lowered)
- 83 in.
- Overall Length (with Forks)
- 141.8 in.
- Overall Length (without Forks)
- 96.8 in.
- Overall Width
- 45.2 in.
- Wheelbase
- 62.9 in.
- Ground Clearance (at Mast)
- 4.3 in.
- Service Weight
- 7,716 lbs
- Fork Size
- 42.1 in. x 4.8 in. x 1.5 in.
- Engine
- Kubota or PSI 2.4L LPG
- Engine Power
- 63 HP at 2,700 RPM
- Fuel Type
- Liquid Propane (LPG)
- Max Travel Speed (Loaded / Unloaded)
- 10.6 mph / 11.8 mph
- Tire Type
- Solid Pneumatic
- Tire Size
- 7.00-12-12PR (Front) / 6.00-9-10PR (Rear)
- Service Brake
- Hydraulic Floor Pedal
- Hydraulic Valve
- Shimadzu 4SV 4-Way (Pre-Plumbed)
- Side Shift
- Cascade (Standard)
- Battery
- 12V / 60Ah
- Compliance / Certifications
- Tier 4 EPA / CARB 4
- Brand
- EKKO Lifts
