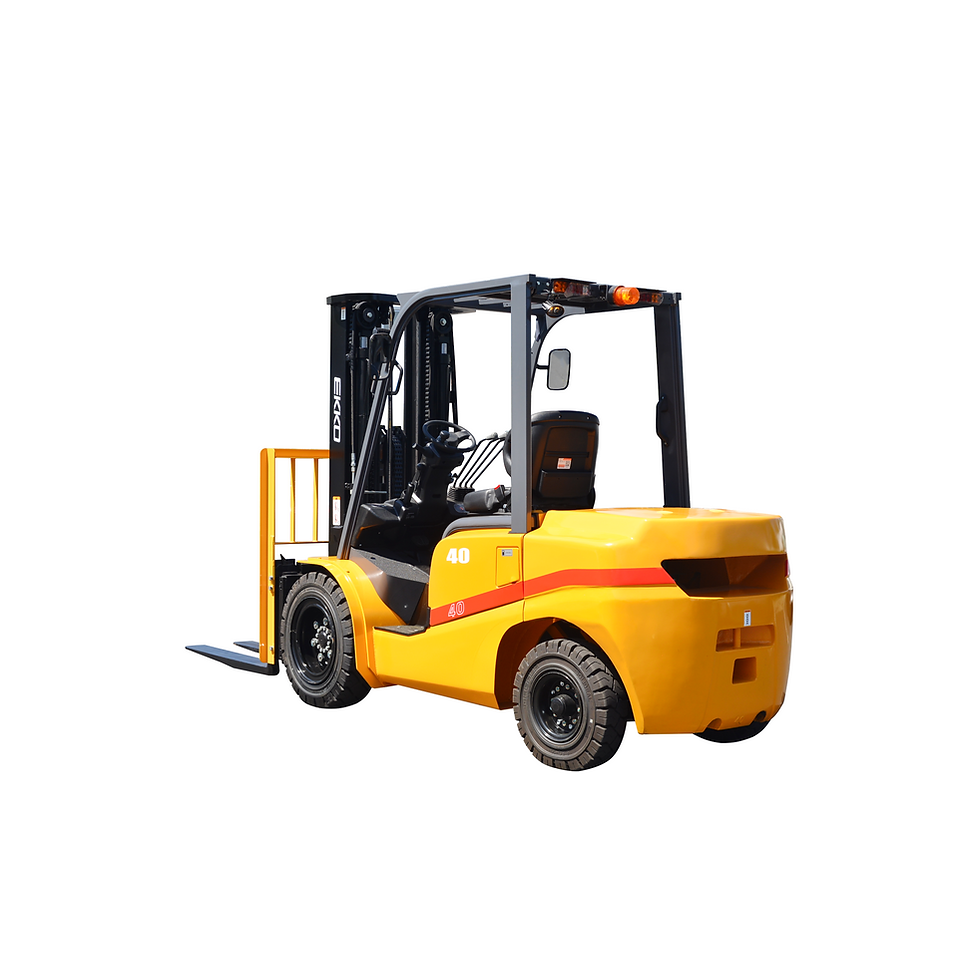

EKKO EK25D Pneumatic Diesel Forklift 5,000 lbs cap, 185" Lift Height
The EKKO EK25D is a diesel-powered 4-wheel counterbalanced forklift designed for material handling, warehousing, distribution, and outdoor operations requiring dependable performance in environments where LPG fuel is not preferred. Powered by a Tier 4 EPA-compliant Mitsubishi 4EG diesel engine, it delivers a 5,000 lb. load capacity with a maximum lift height of 185 inches at a 24-inch load center. The unit features a multifunctional suspended seat for vibration reduction, an adjustable steering column, an impedance-composed muffler for reduced sound output, and solid pneumatic tires for all-surface stability. Standard equipment includes a Cascade side shift and Shimadzu 4-way hydraulic valve pre-plumbed, making it well suited for distribution centers, loading docks, and industrial facilities requiring a capable diesel forklift with a complete hydraulics package.
- 5,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 5,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 43.7 in.
- Tier 4 EPA-Compliant Mitsubishi Diesel Engine - Powered by a Mitsubishi 4EG diesel engine meeting Tier 4 EPA emissions standards, delivering reliable power for demanding indoor and outdoor material handling cycles
- Solid Pneumatic Tires for All-Surface Stability - 7.00-12-12PR front and 6.00-9-10PR rear solid pneumatic tires provide consistent traction on concrete, asphalt, and uneven outdoor surfaces without flat risk
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and responsive mast control out of the box
- Operator Comfort and Noise Reduction Package - Multifunctional suspended seat distributes operator weight and reduces vibration, while an impedance-composed muffler and adjustable steering column lower fatigue during extended shifts
- Model Number
- EK25D
- Product Type
- 4-Wheel Diesel Counterbalanced Forklift
- Load Capacity
- 5,000 lbs
- Load Center
- 24 in.
- Lift Height
- 185 in.
- Free Lifting Height
- 43.7 in.
- Overall Height with Forks Lifted
- 225 in.
- Mast Overall Height (Lowered)
- 83 in.
- Overall Length (with Forks)
- 144.6 in.
- Overall Length (without Forks)
- 99.6 in.
- Overall Width
- 45.2 in.
- Wheelbase
- 62.9 in.
- Ground Clearance (at Mast)
- 4.3 in.
- Service Weight
- 8,465 lbs
- Fork Size
- 42.1 in. x 4.8 in. x 1.5 in.
- Engine
- Mitsubishi 4EG Diesel
- Fuel Type
- Diesel
- Tire Type
- Solid Pneumatic
- Tire Size
- 7.00-12-12PR (Front) / 6.00-9-10PR (Rear)
- Service Brake
- Hydraulic Floor Pedal
- Hydraulic Valve
- Shimadzu 4-Way (Pre-Plumbed)
- Side Shift
- Cascade (Standard)
- Battery
- 12V / 60Ah
- Compliance / Certifications
- Tier 4 EPA
- Warranty
- 3-Year Structural / 2-Year Engine / 1-Year Parts
- Brand
- EKKO Lifts
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
