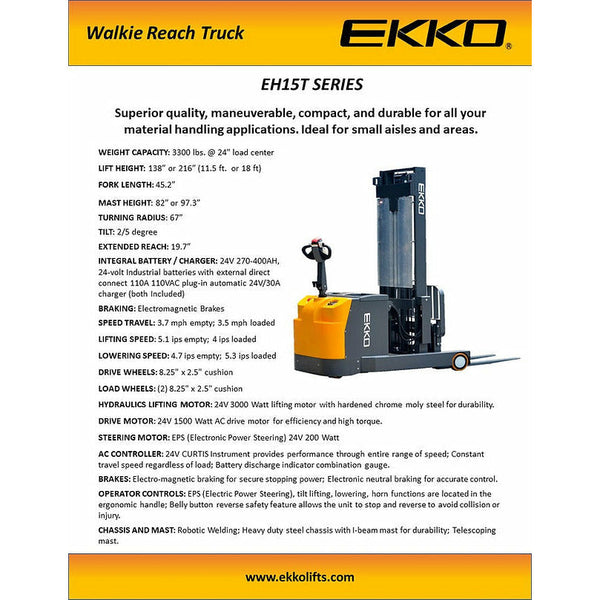

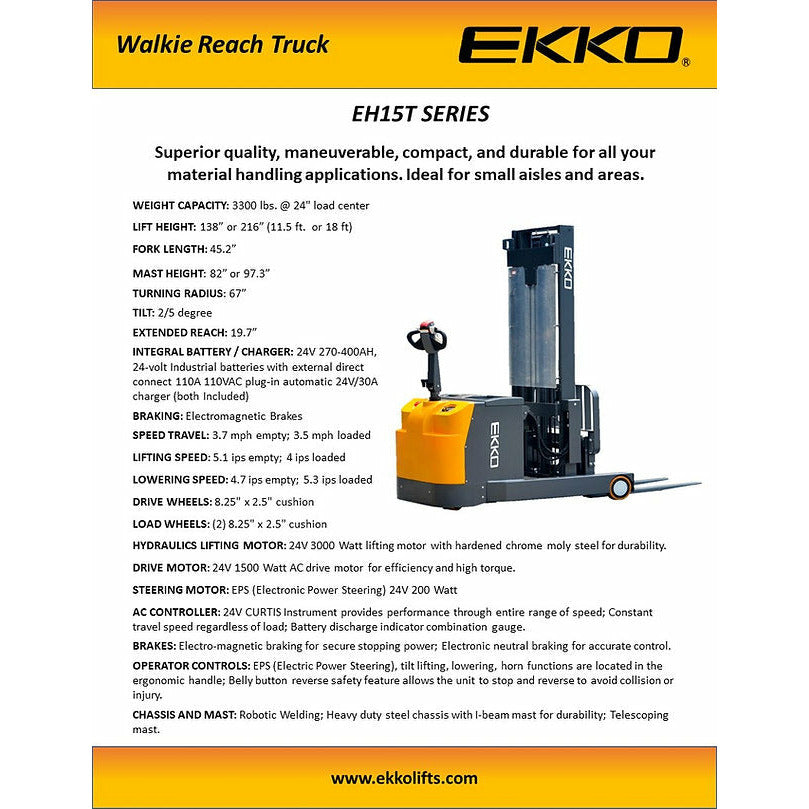

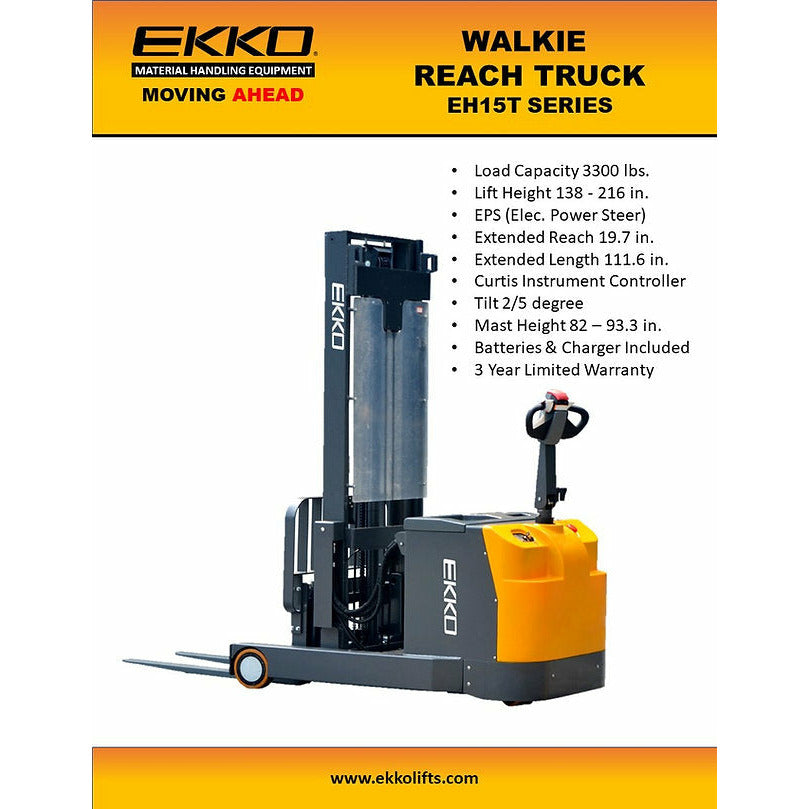

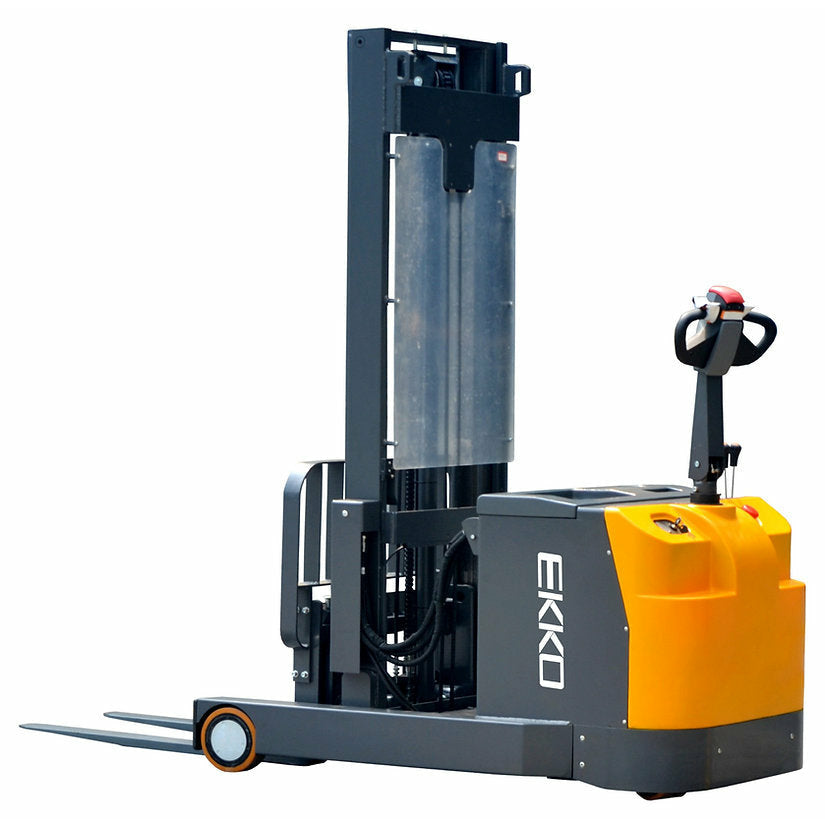

The EKKO EH15T is a moving mast walkie reach truck that combines the capabilities of a forklift, reach truck, and walkie stacker in a single operator-walked unit, designed for loading docks, stock rooms, manufacturing floors, and warehouses where 3,300 lb. capacity high-reach storage is required without a seated or stand-up rider platform. Rated for 3,300 lbs at a 24-inch load center with a maximum lift height of 138 inches, it is powered by a 24V / 270Ah battery with a 24V AC 2.5 kW drive motor, 24V 3 kW lift motor, and Curtis controller with Electronic Power Steering for precise, low-effort maneuvering. The moving mast design extends 19.7 in. for deep-rack access while forks adjust from 8.7 to 29.1 in. width, with polyurethane wheels, robotic welded steel construction, and a 67 in. turning radius suited for narrow aisle warehouse operations. Battery and charger are included standard with a 3-year limited warranty.
- 3,300 lb. Capacity with 138 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 138 in. and a lowered mast height of 93.3 in. for operation under standard overhead clearances

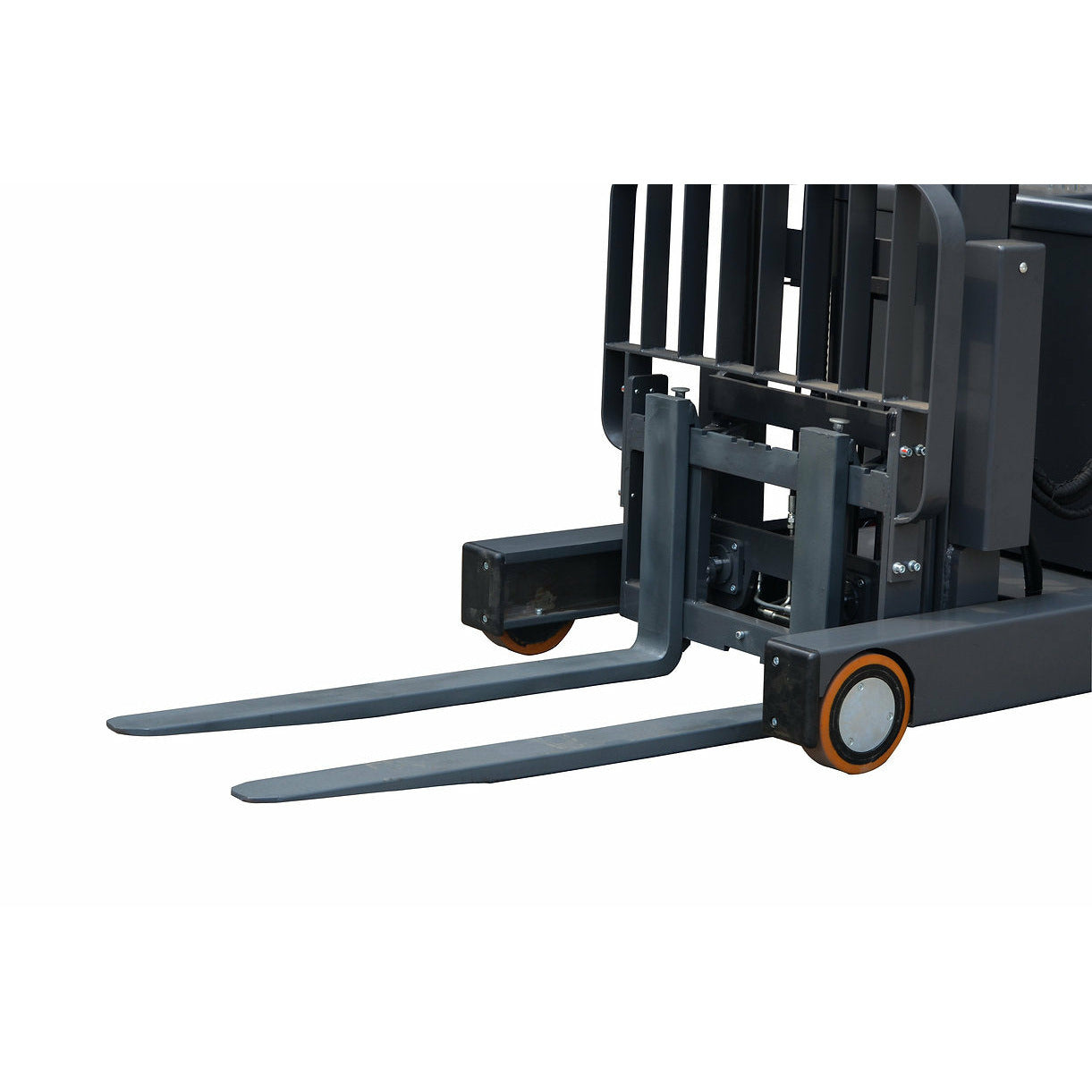

- 19.7 in. Moving Mast Reach with Adjustable Fork Width - The moving mast extends 19.7 in. for deep-rack pallet access while forks adjust from 8.7 to 29.1 in. O.D. to accommodate standard and non-standard pallet configurations

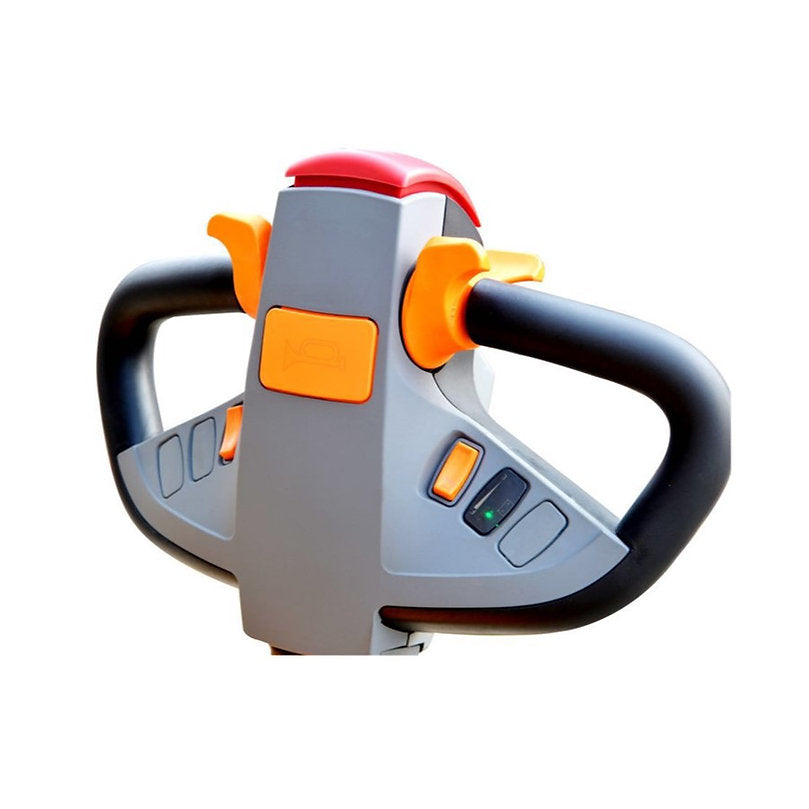

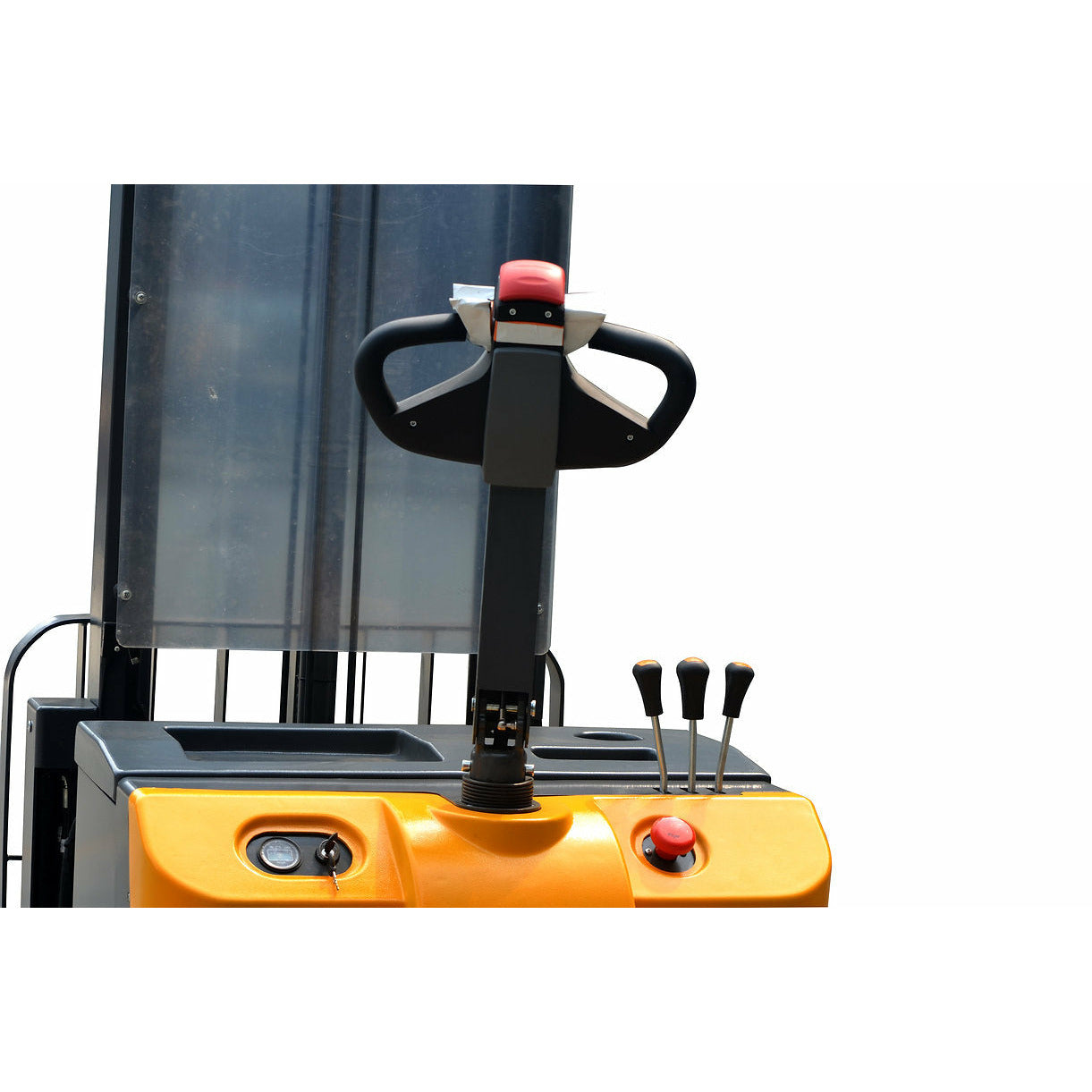

- 24V AC Drive System with Electronic Power Steering - Powered by a 24V / 2.5 kW AC drive motor and 24V / 3 kW lift motor, controlled by a Curtis controller with EPS for low-effort directional control during extended operating shifts
- 67 in. Turning Radius for Narrow Aisle Operation - At 41 in. overall width and a 67 in. turning radius, the EH15T operates in confined warehouse aisles and stock room environments where larger rider units cannot maneuver
- 24V / 270Ah Battery and Charger Included - Ships with a 24V / 270Ah industrial battery and 24V / 40A charger at no additional cost, with a service weight of 4,200 lbs and a robotically welded steel frame backed by a 3-year limited warranty
Product Specifications:

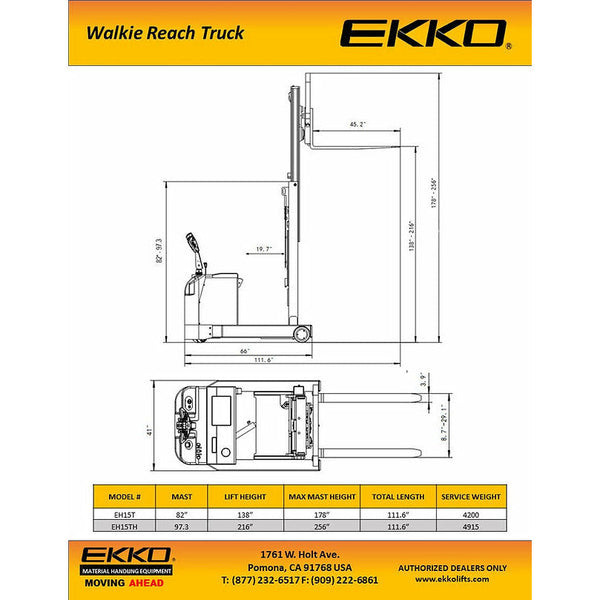

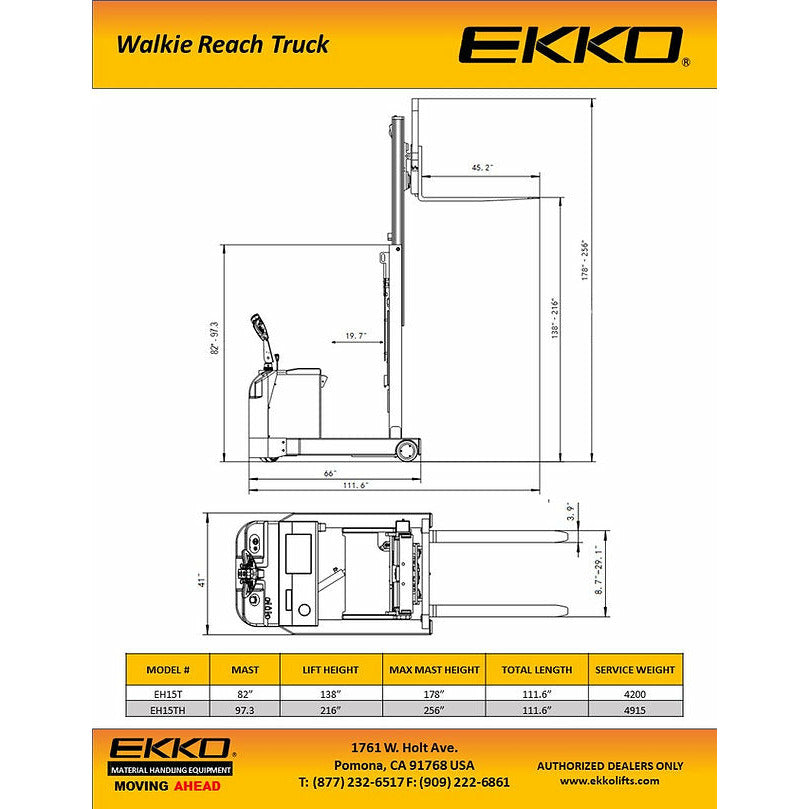

| Model Number | EH15T |
| Product Type | Moving Mast Walkie Reach Truck |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 138 in. |
| Mast Overall Height (Lowered) | 93.3 in. |
| Reach Distance | 19.7 in. |
| Overall Length | 111.6 in. |
| Overall Width | 41 in. |
| Turning Radius | 67 in. |
| Service Weight | 4,200 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 45.2 in. |
| Fork Adjust Width | 8.7 in. – 29.1 in. |
| Power Type | Electric |
| Battery | 24V / 270Ah (Included) |
| Charger | 24V / 40A (Included) |
| Drive Motor | 24V / 2.5 kW AC |
| Steering Motor | 24V / 0.2 kW |
| Lift Motor | 24V / 3 kW |
| Controller | Curtis |
| Steering | EPS (Electronic Power Steering) |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
