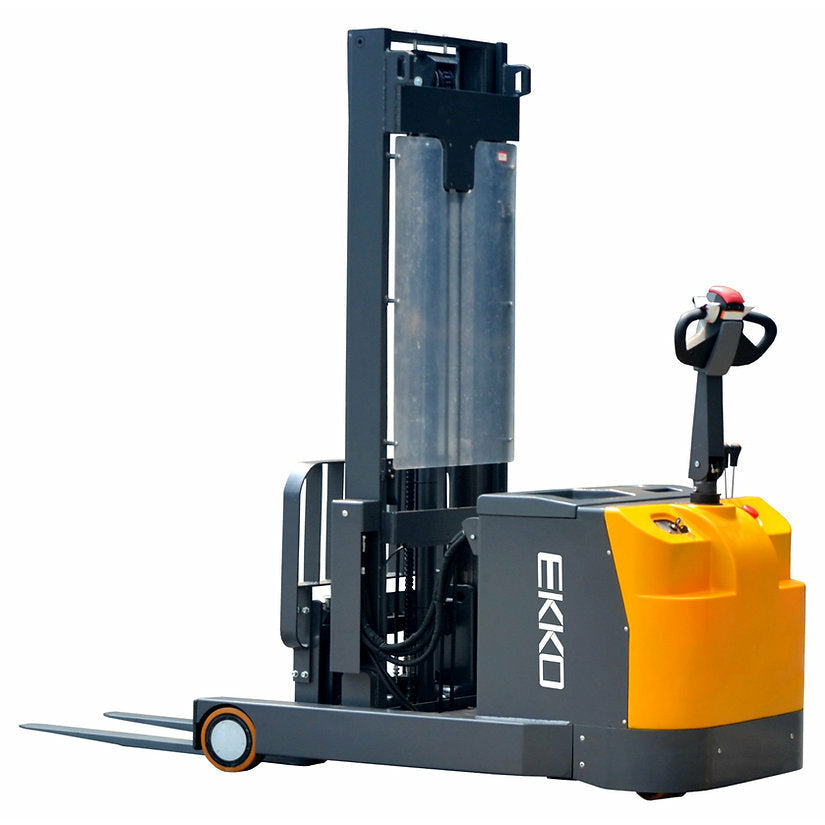

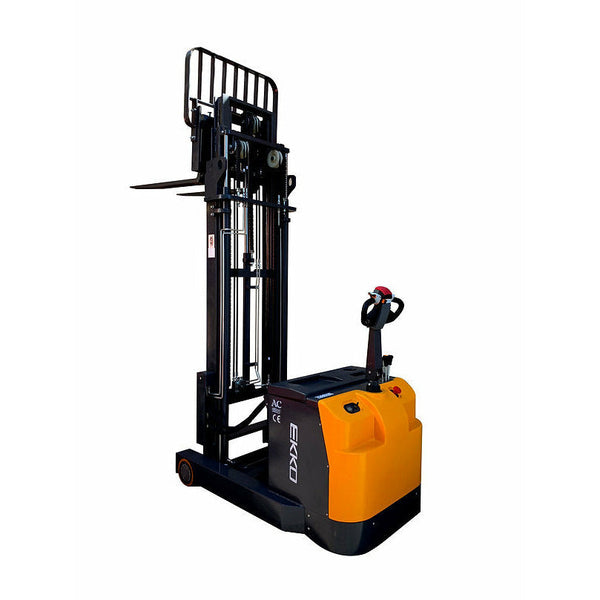

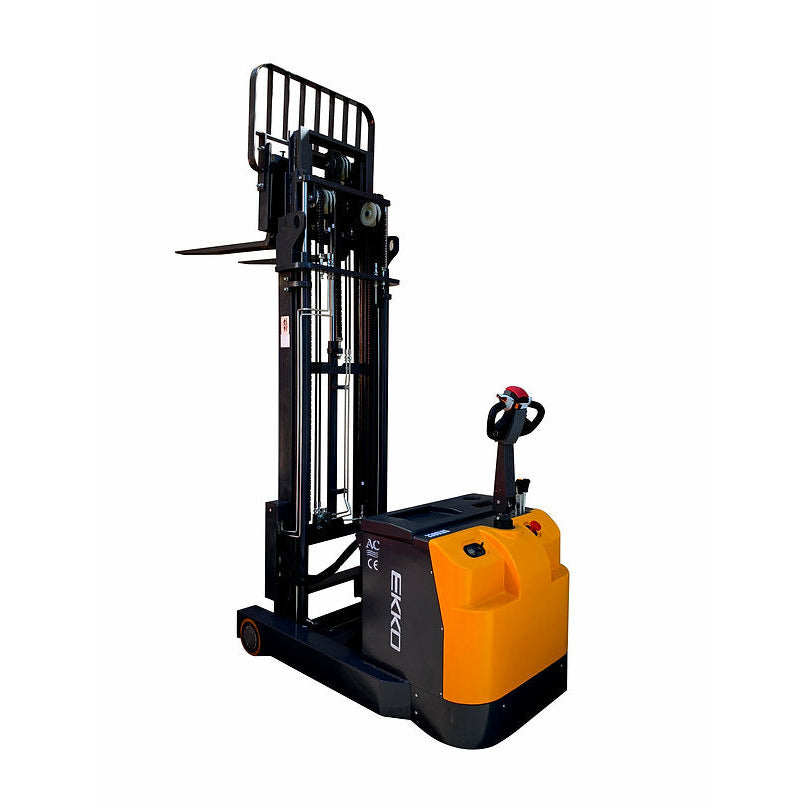

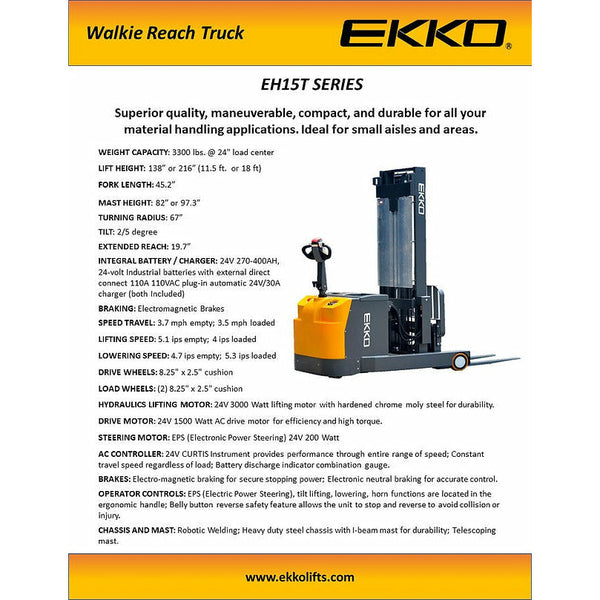

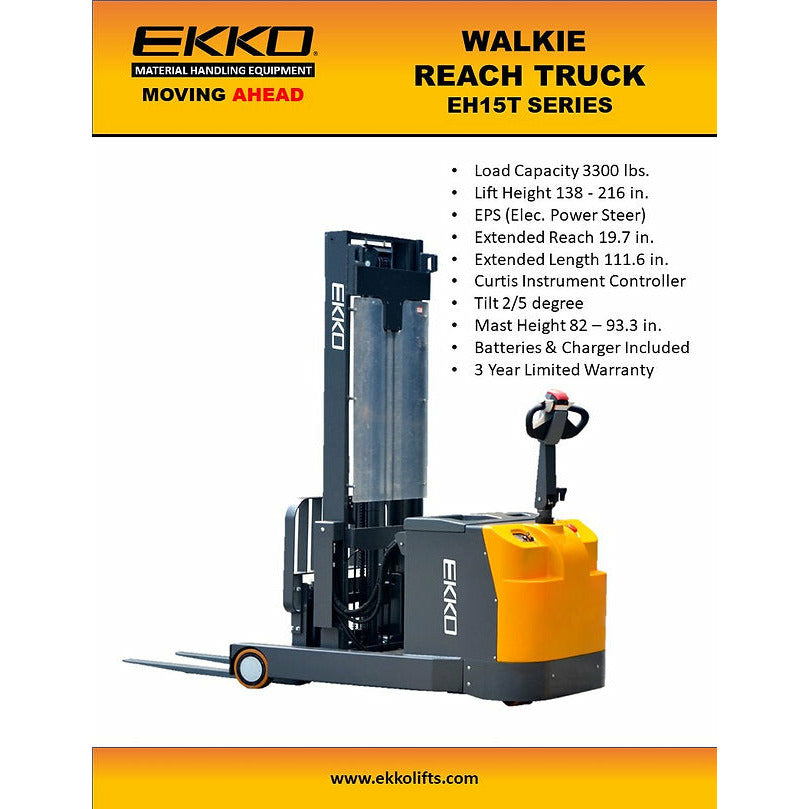

The EKKO EH15TH is a moving mast walkie reach truck that combines the capabilities of a forklift, reach truck, and walkie stacker in a single operator-walked unit, designed for loading docks, stock rooms, manufacturing floors, and high-bay warehouse environments requiring 3,300 lb. capacity storage up to 216 inches. Equipped with a triple mast, 68 in. free lift, and a 19.7 in. powered reach, it is powered by a 24V / 270Ah battery with a 24V AC 2.5 kW drive motor, 24V 3 kW lift motor, and Curtis controller with Electronic Power Steering for precise, low-effort maneuvering. Forks adjust from 8.7 to 29.1 in. width, overall width measures 41 in., and the 67 in. turning radius makes this unit compatible with narrow aisle warehouse configurations where rider trucks cannot operate. Battery, charger, and a 3-year limited warranty are all included standard.

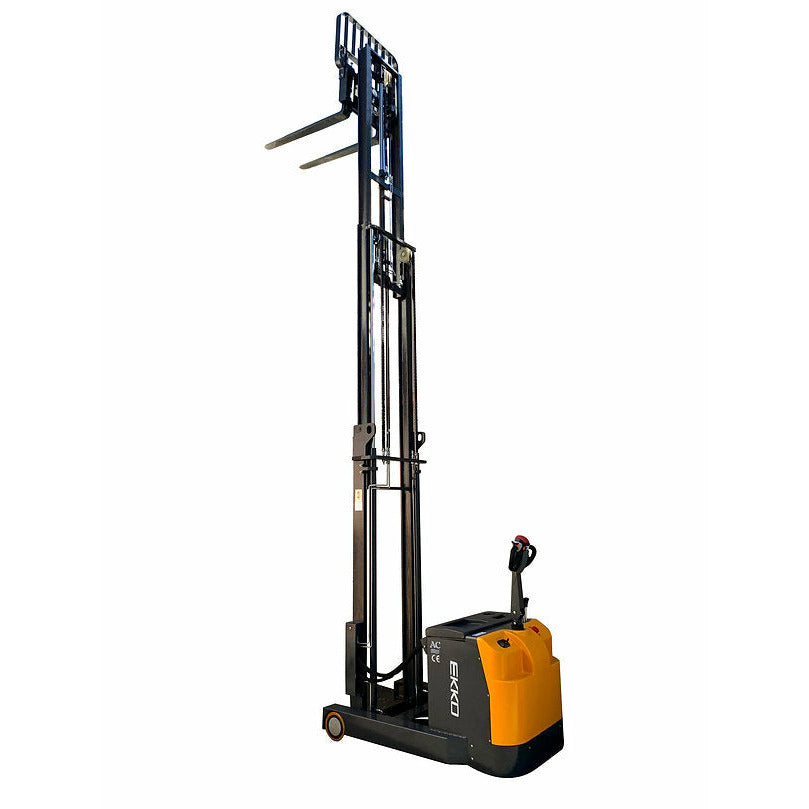

- 3,300 lb. Capacity with 216 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 216 in., a free lift of 68 in., and a lowered mast height of 97.3 in. for high-bay racking access

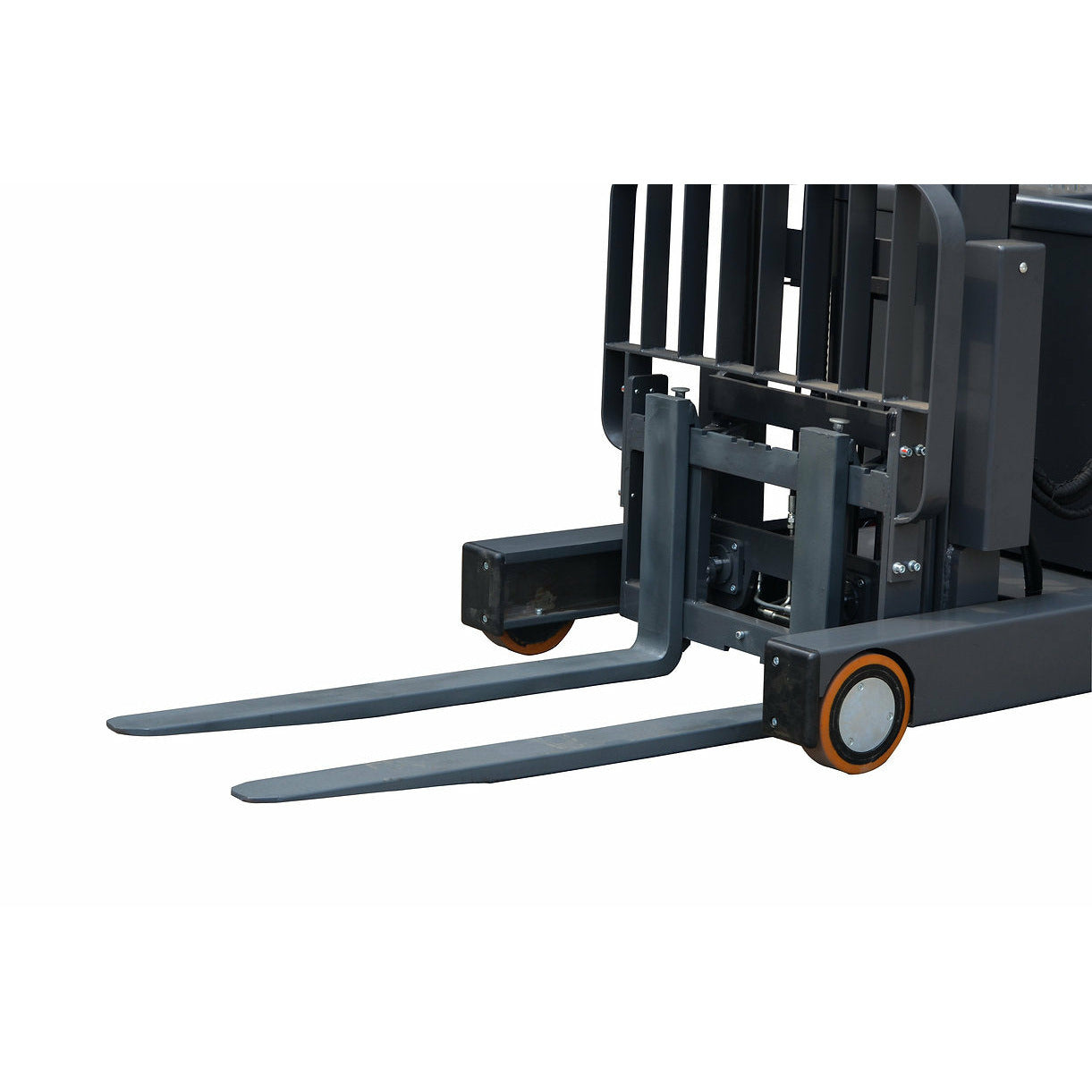

- Triple Mast with 19.7 in. Moving Mast Reach - The triple mast configuration and 19.7 in. powered reach allows the operator to access loads positioned deep within standard pallet racking without repositioning the unit in the aisle

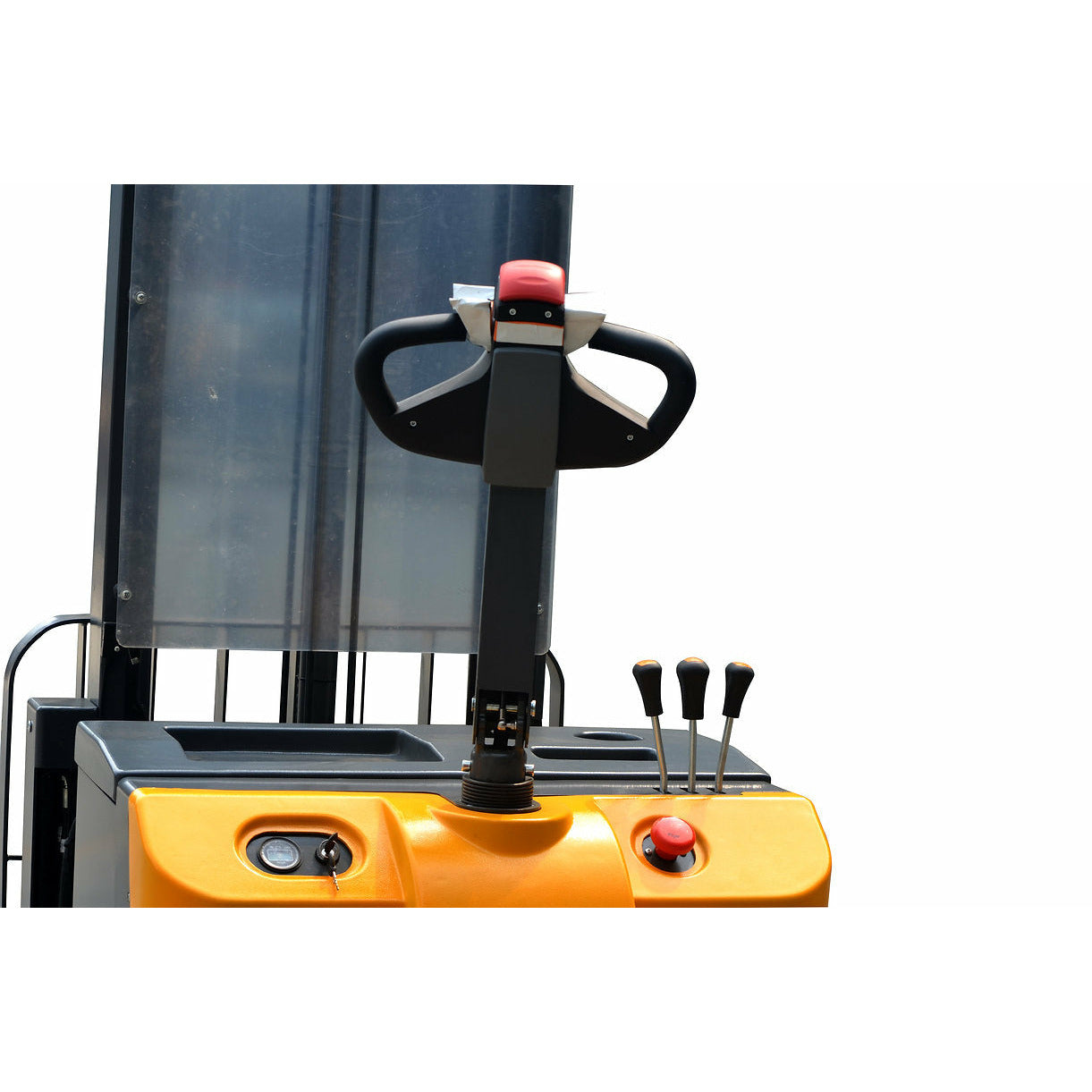

- 24V AC Drive System with Electronic Power Steering - Powered by a 24V / 2.5 kW AC drive motor and 24V / 3 kW lift motor, controlled by a Curtis controller with EPS for low-effort directional control during extended operating shifts
- 67 in. Turning Radius with Narrow 41 in. Overall Width - At 41 in. overall width and a 67 in. turning radius, the EH15TH operates in confined warehouse aisles and stock room environments where larger rider units cannot maneuver safely
- 24V / 270Ah Battery and Charger Included - Ships with a 24V / 270Ah industrial battery and a 24V / 50A charger at no additional cost, with a service weight of 4,915 lbs and a robotically welded steel frame backed by a 3-year limited warranty

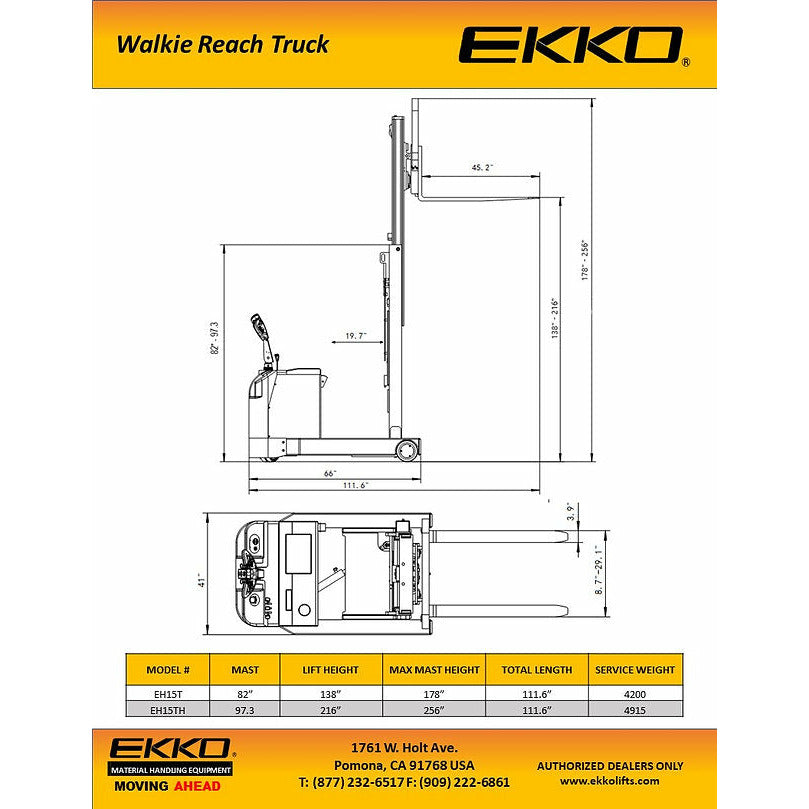

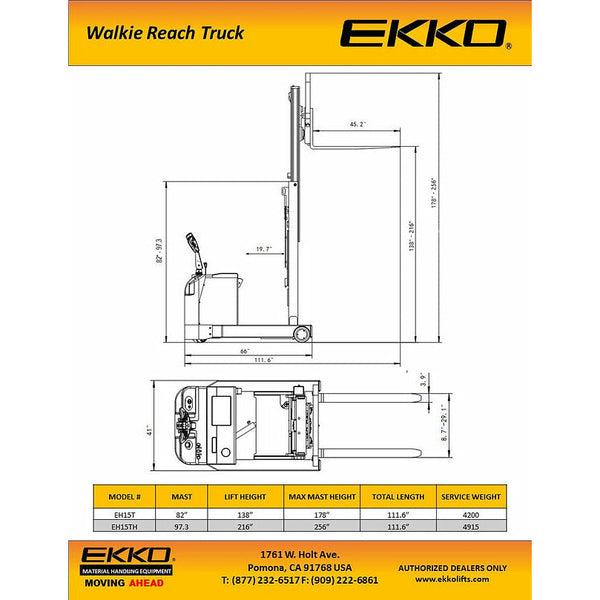

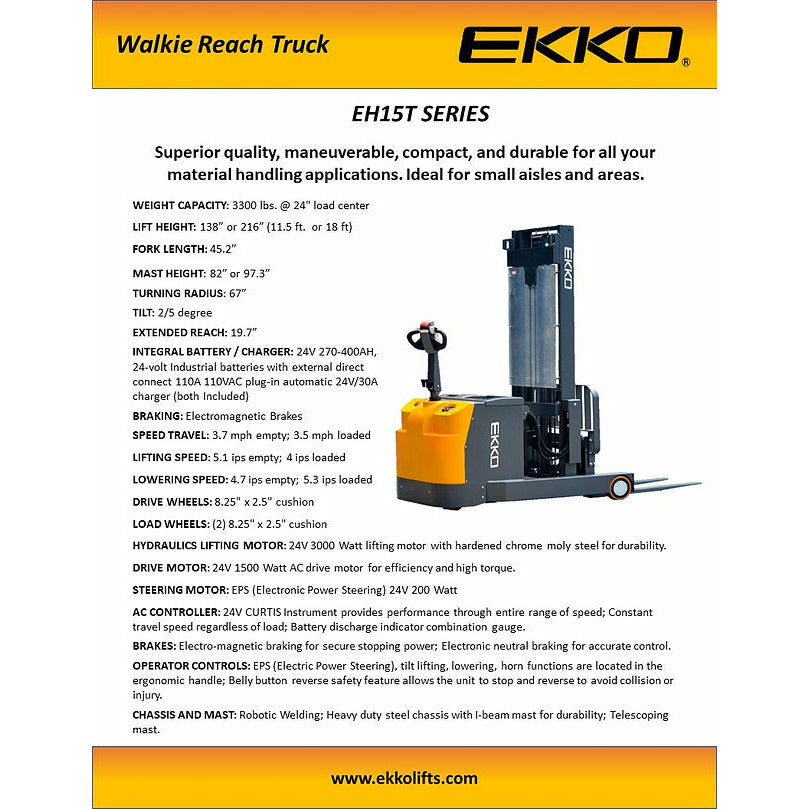

Product Specifications:
| Model Number | EH15TH |
| Product Type | Moving Mast Walkie Reach Truck |
| Mast Type | Triple Mast |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 216 in. |
| Free Lifting Height | 68 in. |
| Mast Overall Height (Lowered) | 97.3 in. |
| Reach Distance | 19.7 in. |
| Overall Length | 111.6 in. |
| Overall Width | 41 in. |
| Turning Radius | 67 in. |
| Service Weight | 4,915 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 45.2 in. |
| Fork Adjust Width | 8.7 in. – 29.1 in. |
| Power Type | Electric |
| Battery | 24V / 270Ah (Included) |
| Charger | 24V / 50A (Included) |
| Drive Motor | 24V / 2.5 kW AC |
| Steering Motor | 24V / 200W |
| Lift Motor | 24V / 3,000W |
| Controller | Curtis Instrument |
| Steering | EPS (Electronic Power Steering) |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
