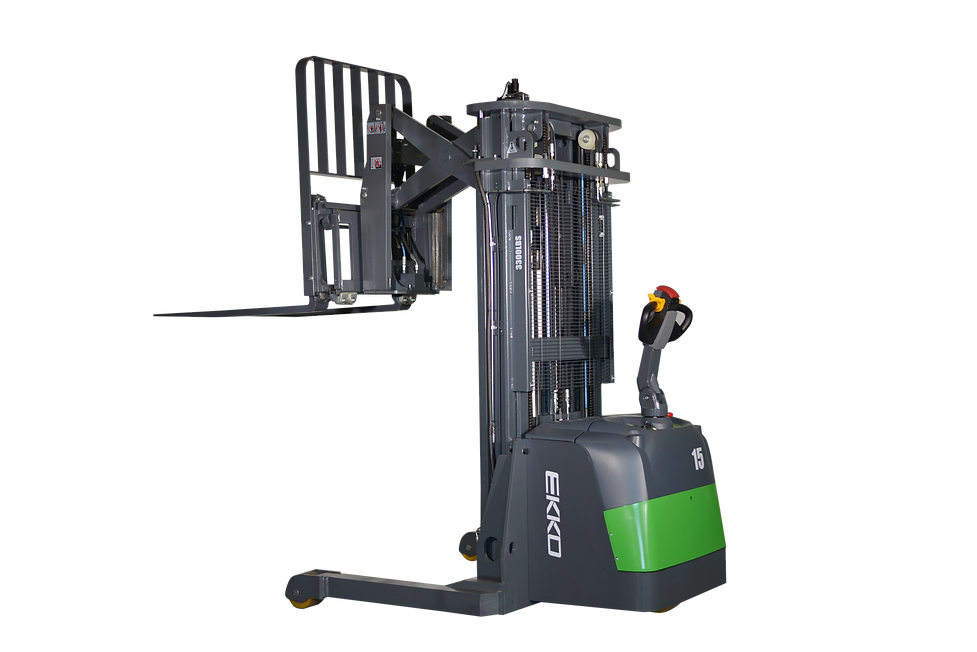

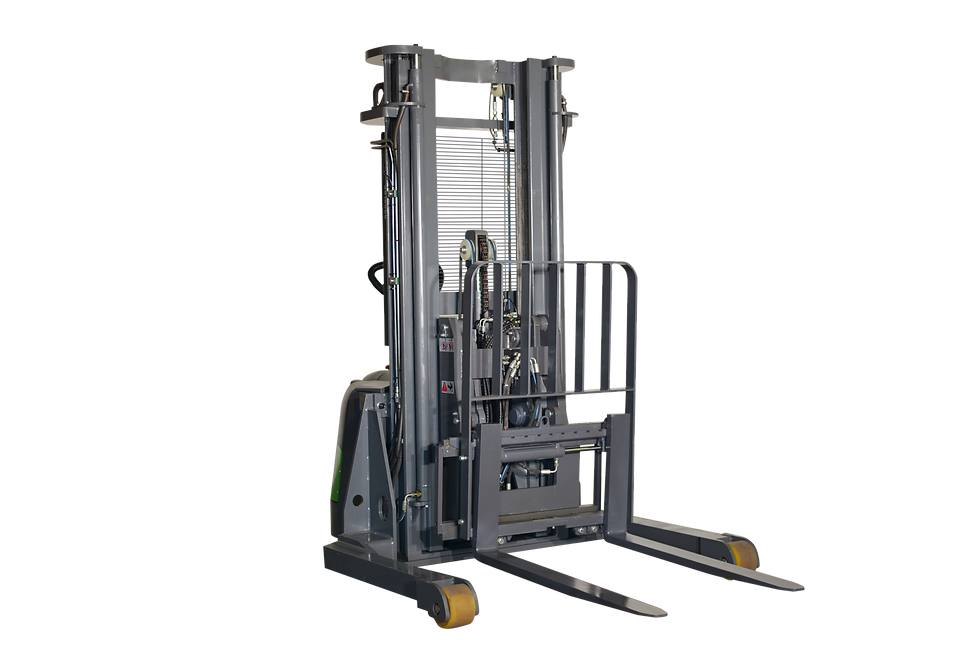

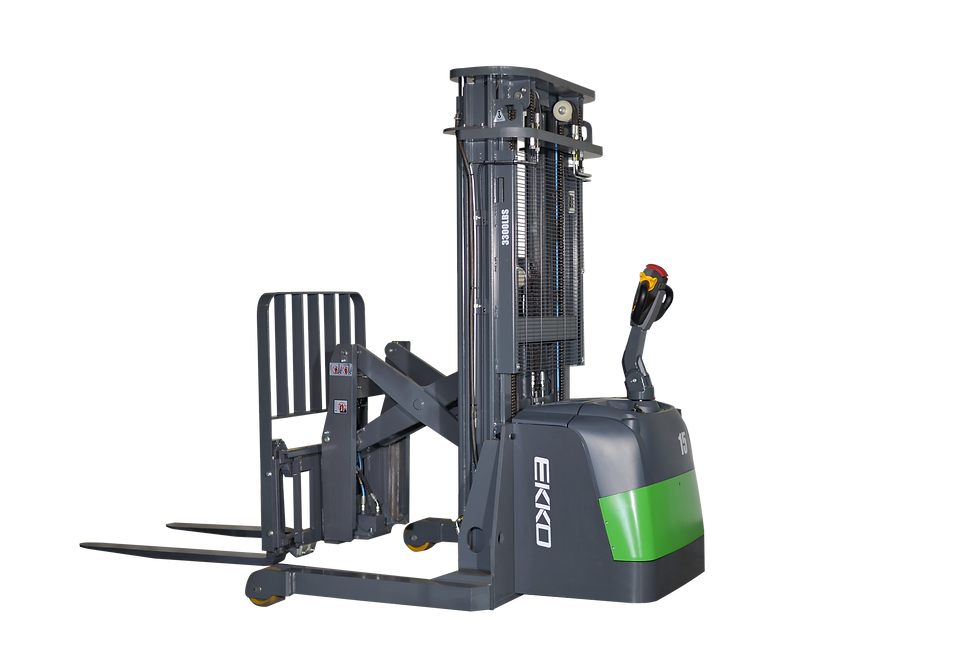

The EKKO ER15-189Li Walkie Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and materials with durable qualities to withstand any terrain, usage, impact and directional changes for any operation with confidence and assurance.
- Load Capacity 3300 lb
- Raised Height 189" (15.75ft)
- Reach Distance of 19.7"
- Side Shift
- Tilt
- Free Lift 64.2"
- Fork Length 45.3"
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/200Ah Lithium
- Polyurethane Wheels

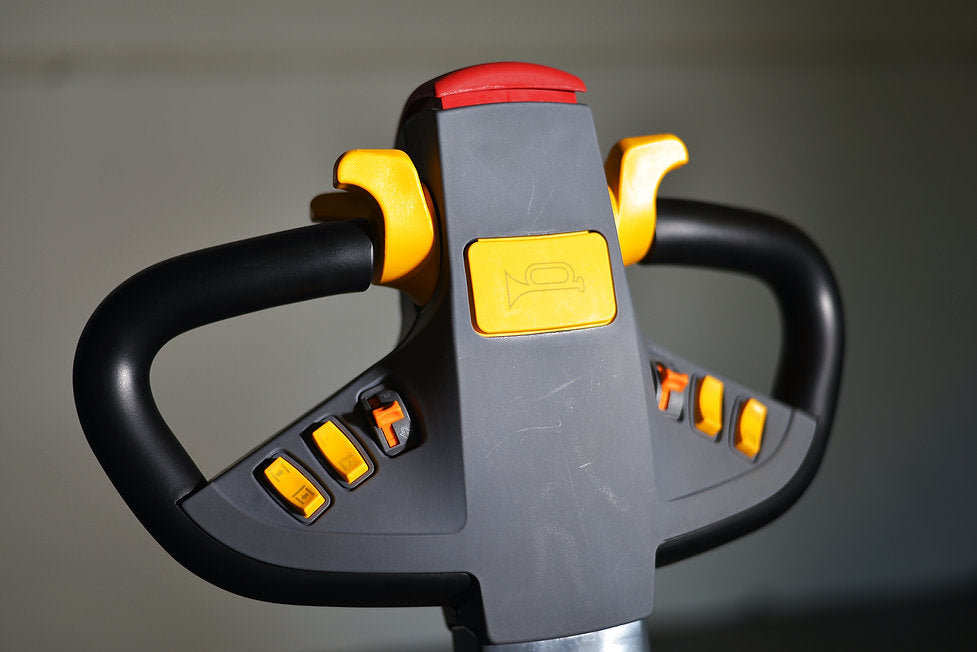

- Ergonomic Handle and Controls
- Lift Control Valve
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
|
Model |
|
ER15-189Li |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3300 |
|
Load center distance |
(in) |
24 |
|
Lifting height |
(in) |
189 |
|
Side Shift |
|
Y |
|
Lowered mast height |
(in) |
86.2 |
|
Overall length |
(in) |
86.6 |
|
Overall width (body/legs) |
(in) |
32.3/59.1 |
|
Fork size, Thick/Width/Length |
(in) |
1.38/3.9/45.3 |
|
Fork width |
(in) |
32.2 |
|
Reach Distance |
(in) |
19.7 |
|
Turning radius |
(in) |
63.4 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(KW) |
AC 1.5 |
|
EPS Steering Motor |
|
AC Speed Control |
|
Lifting Motor |
(KW) |
4.5 |
|
Battery voltage |
(V/Ah) |
24V/200Ah Lithium |
|
Service Weight |
(lb) |
4590 |
