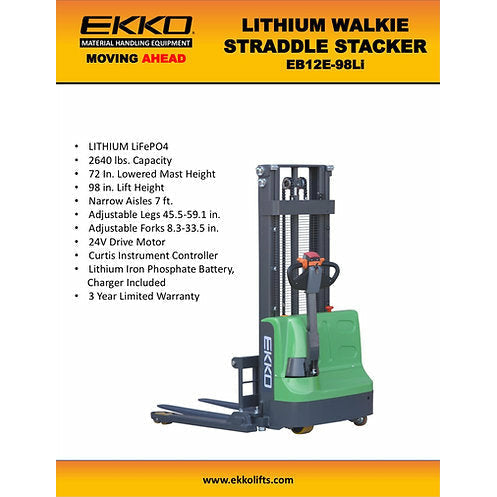

EKKO EB12E-98Li Lithium Straddle Stacker | 98" Lift Height | 2640 lb Capacity

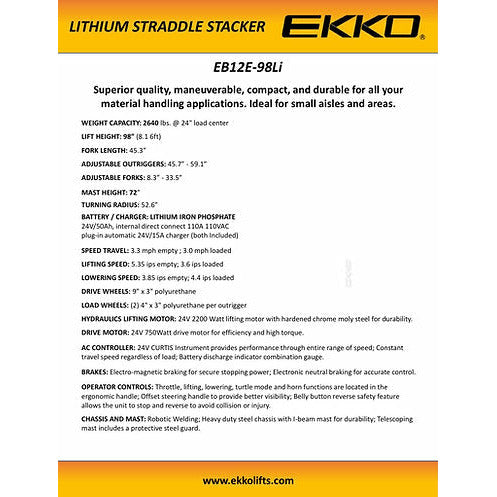

The EKKO EB12E-98Li is a lithium iron phosphate-powered electric straddle stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 2,640 lb. capacity stacking unit that can operate through standard doorways, with a 72.05-inch lowered mast height and 98.42-inch maximum lift height. It combines the functionality of a forklift, reach truck, and walkie stacker in a single compact unit, with adjustable outrigger legs from 45.7 to 59.1 inches and forks from 8.27 to 33.47 inches outside width to accommodate standard and non-standard pallet configurations. Powered by a 0.75 kW drive motor and 2.2 kW lift motor with a Curtis Instrument controller, 24V / 60Ah lithium iron phosphate battery, and electromagnetic brake, it delivers 4.0 km/h travel speed loaded and a 52.6 in. turning radius for standard aisle operation. A 3-year limited warranty is included standard.
- 2,640 lb. Capacity with 98.42 in. Lift and 72.05 in. Lowered Mast - Rated for 2,640 lbs at a 24 in. load center with a maximum lift height of 98.42 in. and a lowered mast height of 72.05 in., allowing operation through standard doorways without mast clearance issues
- Adjustable Outrigger Legs and Forks for Pallet Flexibility - Legs adjust from 45.7 to 59.1 in. to straddle standard pallets on the floor, with forks adjustable from 8.27 to 33.47 in. outside width and 45.28 in. fork length for a wide range of pallet sizes
- 24V / 60Ah Lithium Iron Phosphate Battery - Powered by a 24V / 60Ah LiFePO4 battery weighing 29 lbs, with a Curtis Instrument controller, electromagnetic service brake, and DC control system for low-maintenance, high-cycle operation
- 0.75 kW Drive Motor and 2.2 kW Lift Motor - Equipped with a 0.75 kW drive motor at 4.0 km/h loaded and 4.2 km/h unloaded, and a 2.2 kW lift motor with a lifting speed of 92 mm/s laden and 136 mm/s unladen for efficient stack cycling
- Compact 52.6 in. Turning Radius at 71 in. Overall Length - At 71 in. overall length and a 52.6 in. turning radius, with a noise level of 69 dB(A) at the operator position, the EB12E-98Li is designed for standard warehouse aisle use in noise-sensitive environments

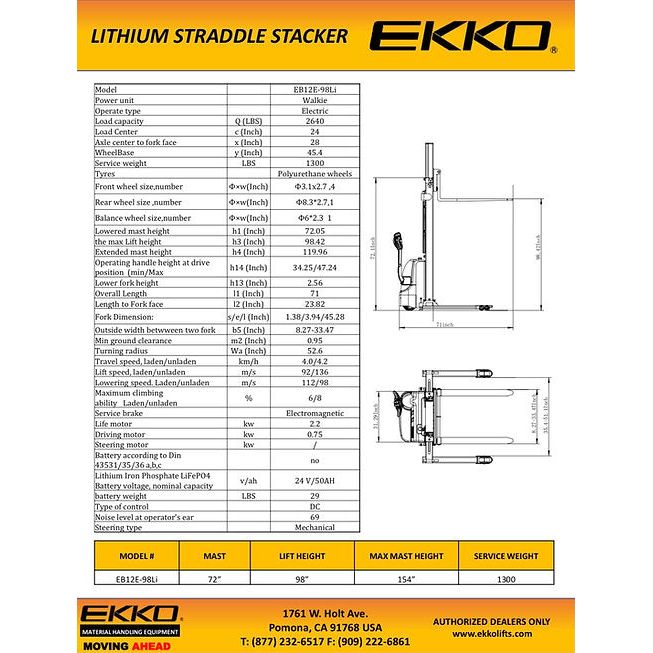

- Model Number
- EB12E-98Li
- Product Type
- Lithium Iron Phosphate Electric Walkie Straddle Stacker
- Load Capacity
- 2,640 lbs
- Load Center
- 24 in.
- Lift Height
- 98.42 in.
- Lowered Mast Height
- 72.05 in.
- Extended Mast Height
- 119.96 in.
- Lowered Fork Height
- 2.56 in.
- Overall Length
- 71 in.
- Length to Fork Face
- 23.82 in.
- Wheelbase
- 45.4 in.
- Turning Radius
- 52.6 in.
- Service Weight
- 1,300 lbs
- Fork Size (Thick / Width / Length)
- 1.38 in. x 3.94 in. x 45.28 in.
- Fork Adjust Width (Outside)
- 8.27 in. – 33.47 in.
- Adjustable Leg Width
- 45.7 in. – 59.1 in.
- Max Travel Speed (Laden / Unladen)
- 4.0 km/h / 4.2 km/h
- Lifting Speed (Laden / Unladen)
- 92 mm/s / 136 mm/s
- Lowering Speed (Laden / Unladen)
- 112 mm/s / 98 mm/s
- Max Gradeability (Laden / Unladen)
- 6% / 8%
- Power Type
- Lithium Iron Phosphate (LiFePO4) Electric
- Battery
- 24V / 60Ah Lithium Iron Phosphate
- Battery Weight
- 29 lbs
- Drive Motor
- 0.75 kW
- Lift Motor
- 2.2 kW
- Controller
- Curtis Instrument
- Service Brake
- Electromagnetic
- Steering Type
- Mechanical
- Tire Type
- Polyurethane
- Noise Level (at Operator)
- 69 dB(A)
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
