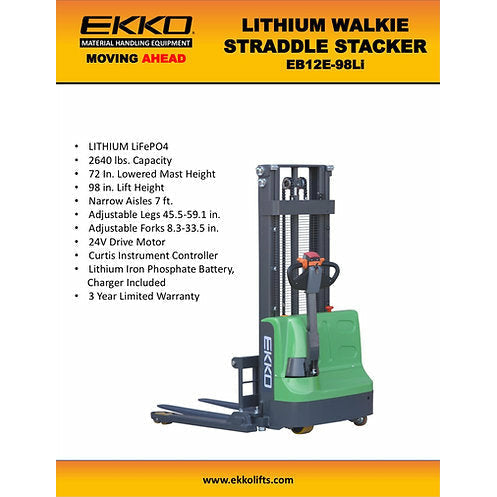

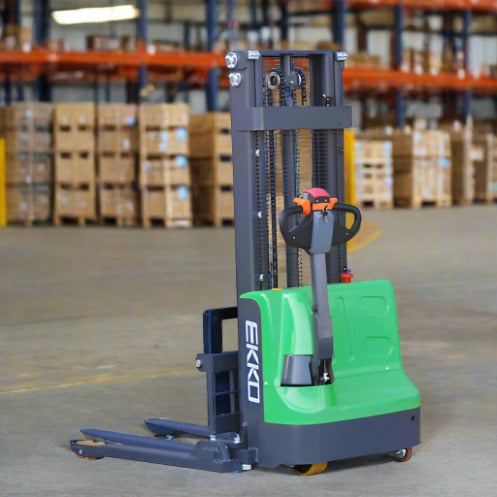

The EKKO EB12E-98Li is a lithium iron phosphate-powered electric straddle stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 2,640 lb. capacity stacking unit that can operate through standard doorways, with a 72.05-inch lowered mast height and 98.42-inch maximum lift height. It combines the functionality of a forklift, reach truck, and walkie stacker in a single compact unit, with adjustable outrigger legs from 45.7 to 59.1 inches and forks from 8.27 to 33.47 inches outside width to accommodate standard and non-standard pallet configurations. Powered by a 0.75 kW drive motor and 2.2 kW lift motor with a Curtis Instrument controller, 24V / 60Ah lithium iron phosphate battery, and electromagnetic brake, it delivers 4.0 km/h travel speed loaded and a 52.6 in. turning radius for standard aisle operation. A 3-year limited warranty is included standard.
- 2,640 lb. Capacity with 98.42 in. Lift and 72.05 in. Lowered Mast - Rated for 2,640 lbs at a 24 in. load center with a maximum lift height of 98.42 in. and a lowered mast height of 72.05 in., allowing operation through standard doorways without mast clearance issues
- Adjustable Outrigger Legs and Forks for Pallet Flexibility - Legs adjust from 45.7 to 59.1 in. to straddle standard pallets on the floor, with forks adjustable from 8.27 to 33.47 in. outside width and 45.28 in. fork length for a wide range of pallet sizes
- 24V / 60Ah Lithium Iron Phosphate Battery - Powered by a 24V / 60Ah LiFePO4 battery weighing 29 lbs, with a Curtis Instrument controller, electromagnetic service brake, and DC control system for low-maintenance, high-cycle operation
- 0.75 kW Drive Motor and 2.2 kW Lift Motor - Equipped with a 0.75 kW drive motor at 4.0 km/h loaded and 4.2 km/h unloaded, and a 2.2 kW lift motor with a lifting speed of 92 mm/s laden and 136 mm/s unladen for efficient stack cycling
- Compact 52.6 in. Turning Radius at 71 in. Overall Length - At 71 in. overall length and a 52.6 in. turning radius, with a noise level of 69 dB(A) at the operator position, the EB12E-98Li is designed for standard warehouse aisle use in noise-sensitive environments

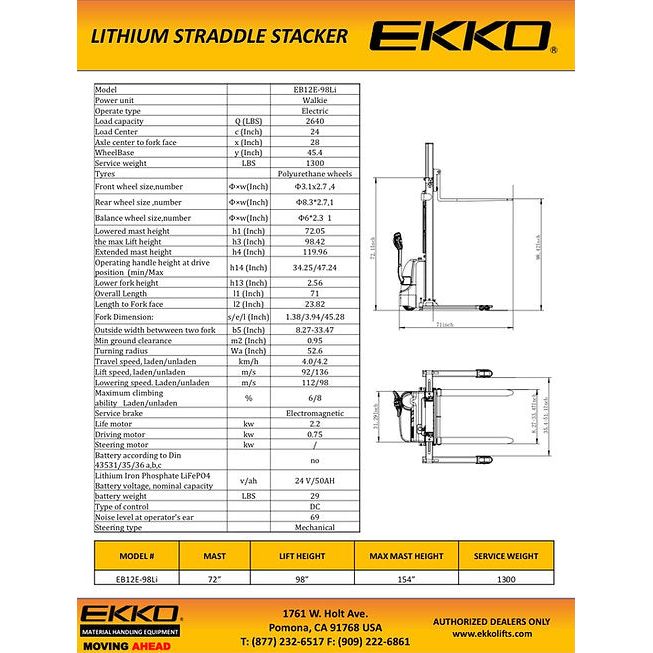

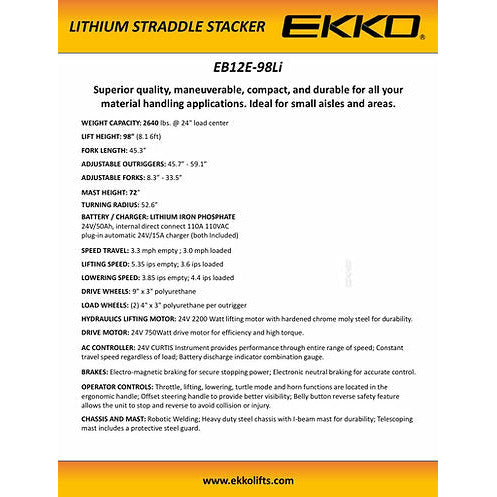

Product Specifications:
| Model Number | EB12E-98Li |
| Product Type | Lithium Iron Phosphate Electric Walkie Straddle Stacker |
| Load Capacity | 2,640 lbs |
| Load Center | 24 in. |
| Lift Height | 98.42 in. |
| Lowered Mast Height | 72.05 in. |
| Extended Mast Height | 119.96 in. |
| Lowered Fork Height | 2.56 in. |
| Overall Length | 71 in. |
| Length to Fork Face | 23.82 in. |
| Wheelbase | 45.4 in. |
| Turning Radius | 52.6 in. |
| Service Weight | 1,300 lbs |
| Fork Size (Thick / Width / Length) | 1.38 in. x 3.94 in. x 45.28 in. |
| Fork Adjust Width (Outside) | 8.27 in. – 33.47 in. |
| Adjustable Leg Width | 45.7 in. – 59.1 in. |
| Max Travel Speed (Laden / Unladen) | 4.0 km/h / 4.2 km/h |
| Lifting Speed (Laden / Unladen) | 92 mm/s / 136 mm/s |
| Lowering Speed (Laden / Unladen) | 112 mm/s / 98 mm/s |
| Max Gradeability (Laden / Unladen) | 6% / 8% |
| Power Type | Lithium Iron Phosphate (LiFePO4) Electric |
| Battery | 24V / 60Ah Lithium Iron Phosphate |
| Battery Weight | 29 lbs |
| Drive Motor | 0.75 kW |
| Lift Motor | 2.2 kW |
| Controller | Curtis Instrument |
| Service Brake | Electromagnetic |
| Steering Type | Mechanical |
| Tire Type | Polyurethane |
| Noise Level (at Operator) | 69 dB(A) |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
