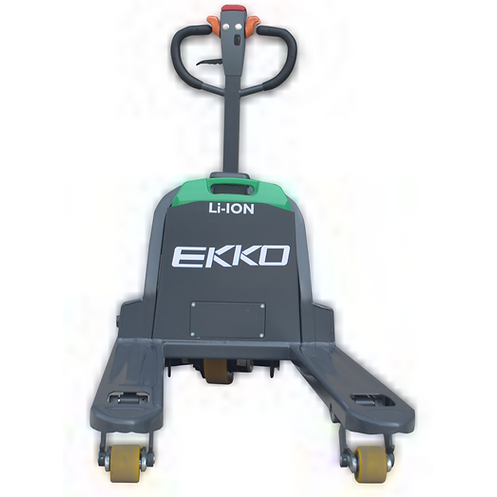

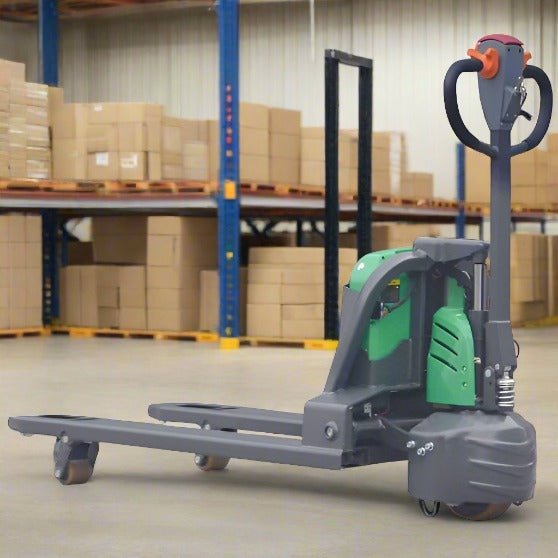

EKKO Lithium Semi Electric Walkie Pallet Truck with 3300 lb Load Capacity - EP15SLi
Product Description
The EKKO EP15SLI Lithium Iron Phosphate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Lithium 24V Powered
- Load Capacity 3300 lb
- Fork Size 27x48
- Raised Height 7.87"
- Lowered Height 3.35"
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- (1) Lithium Iron LiFePO4 Battery Included 24V/30Ah
- 3 Years Limited Warranty

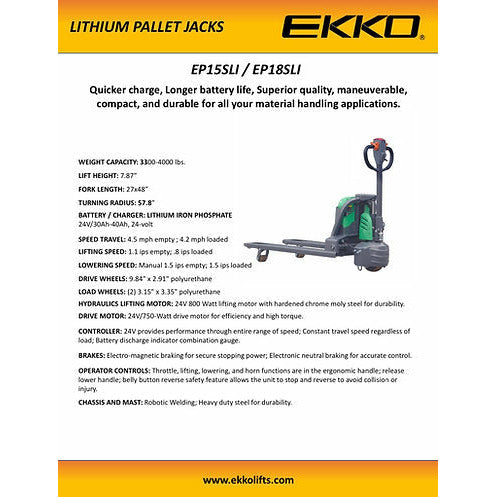

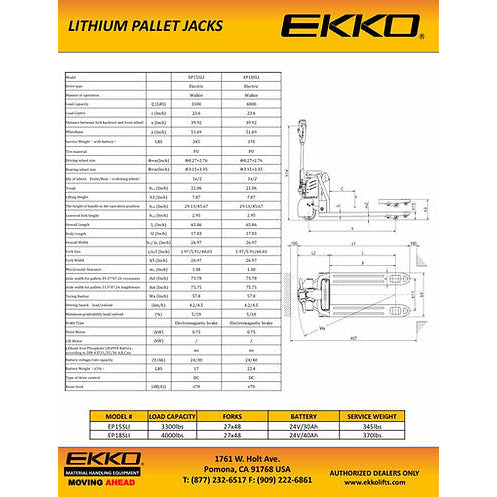

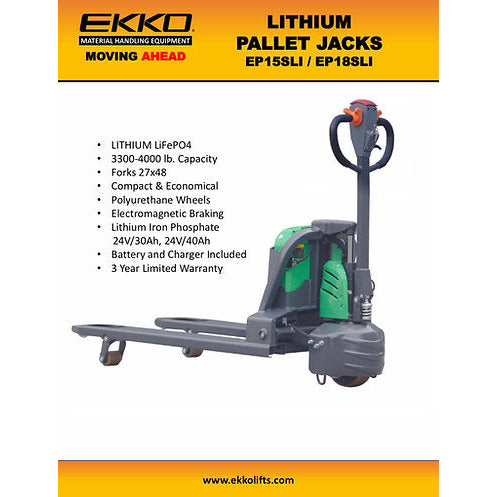

Brochures
Product Info
| Model | EP15SLI | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 3300 |
| Load Centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 39.92 |
| Wheel Base | y (Inch) | 51.69 |
| Tire material | PU | |
| Driving wheel size | Φ×w(Inch) | Φ8.27×2.76 |
| Bearing wheel size | Φ×w(Inch) | Φ3.15×3.35 |
| Qty of wheel，Front/Rear（x=driving wheel） | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| The height of handle in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/ b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min.Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turing Radius | Wa (Inch) | 57.8 |
| Driving Speed，load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | LBS | 22.4 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 370 |
