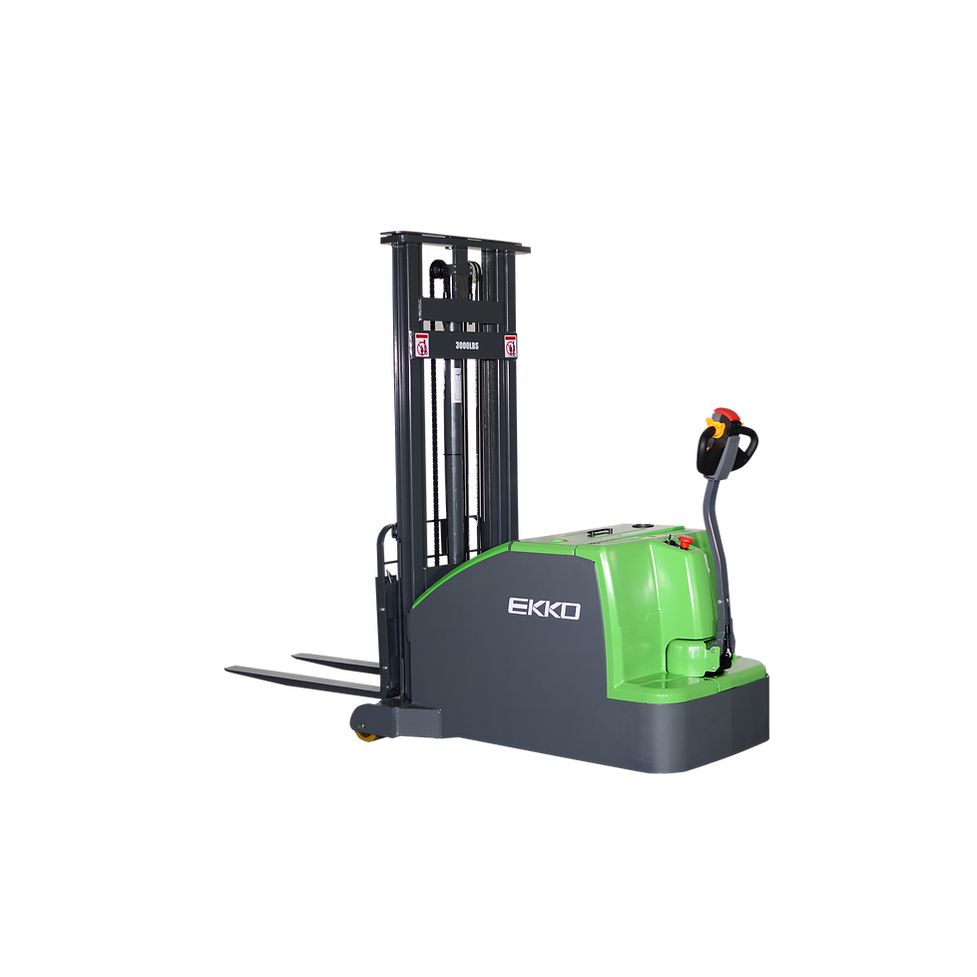

The EKKO EK14CS-189Li is a lithium-powered counterbalanced walkie stacker with integrated side-shifting forks, designed for loading docks, stock rooms, manufacturing floors, and high-bay warehouse environments requiring a compact no-outrigger stacking unit with a 3,000 lb. capacity, 189-inch lift height, lateral load positioning, and the low-maintenance advantages of a 24V / 150Ah lithium-ion battery. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from low-clearance racking and ground-level positions inaccessible to straddle-leg stackers, while the side-shifting carriage provides 4 in. of lateral load adjustment without repositioning the truck. Powered by dual 24V / 2,500W AC drive and lift motors, a 24V / 200W EPS steering motor, Curtis controller, and a synchronous proportional valve for smooth hydraulic control, it delivers fully powered operation with a 57 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, 24V / 50A charger, and a 3-year limited warranty are included standard.
- 3,000 lb. Capacity with 189 in. Maximum Lift Height - Rated for 3,000 lbs at a 24 in. load center with a maximum lift height of 189 in., a side shift of 4 in., a lowered mast height of 84.3 in., and an extended mast height of 217.2 in.
- Side-Shifting Forks Standard with Adjustable Width and Tilt - Integrated side-shifting fork carriage provides 4 in. of lateral load adjustment without repositioning the truck, with forks adjustable from 8.6 to 26 in. O.D. and 2°/5° forward/backward tilt
- 24V / 150Ah Lithium-Ion Battery with 24V / 50A Charger Included - Ships with a 24V / 150Ah lithium-ion battery and 24V / 50A charger at no additional cost, supporting faster opportunity charging versus lead acid alternatives with reduced routine maintenance requirements
- Dual 24V / 2,500W AC Motors with EPS and Proportional Valve - Equipped with a 24V / 2,500W AC drive motor, 24V / 2,500W lift motor, 24V / 200W EPS steering motor, Curtis controller, and synchronous proportional valve for smooth, responsive hydraulic and drive control
- 57 in. Turning Radius with 42.1 in. Overall Width - At 42.1 in. overall width, 122.6 in. overall length, and a 57 in. turning radius, the EK14CS-189Li is sized for standard warehouse aisle configurations with full side-shifting and high-reach capability in a counterbalanced footprint
Product Specifications:
| Model Number | EK14CS-189Li |
| Product Type | Lithium-Powered Counterbalanced Walkie Stacker with Side Shift |
| Load Capacity | 3,000 lbs |
| Load Center | 24 in. |
| Lift Height | 189 in. |
| Side Shift Distance | 4 in. |
| Mast Overall Height (Lowered) | 84.3 in. |
| Extended Mast Height | 217.2 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 122.6 in. |
| Overall Width | 42.1 in. |
| Wheelbase | 47 in. |
| Turning Radius | 57 in. |
| Service Weight | 4,650 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 42.1 in. |
| Fork Adjust Width | 8.6 in. – 26 in. |
| Side Shift | Standard |
| Hydraulic Valve | Synchronous Proportional Valve |
| Lifting Speed (Laden / Unladen) | 2.95 in/s / 3.94 in/s |
| Lowering Speed (Laden / Unladen) | 5.3 in/s / 4.7 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Lithium-Ion Electric |
| Battery | 24V / 150Ah Lithium-Ion (Included) |
| Charger | 24V / 50A (Included) |
| Drive Motor | 24V / 2,500W AC |
| Lift Motor | 24V / 2,500W |
| Steering Motor | 24V / 200W EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
