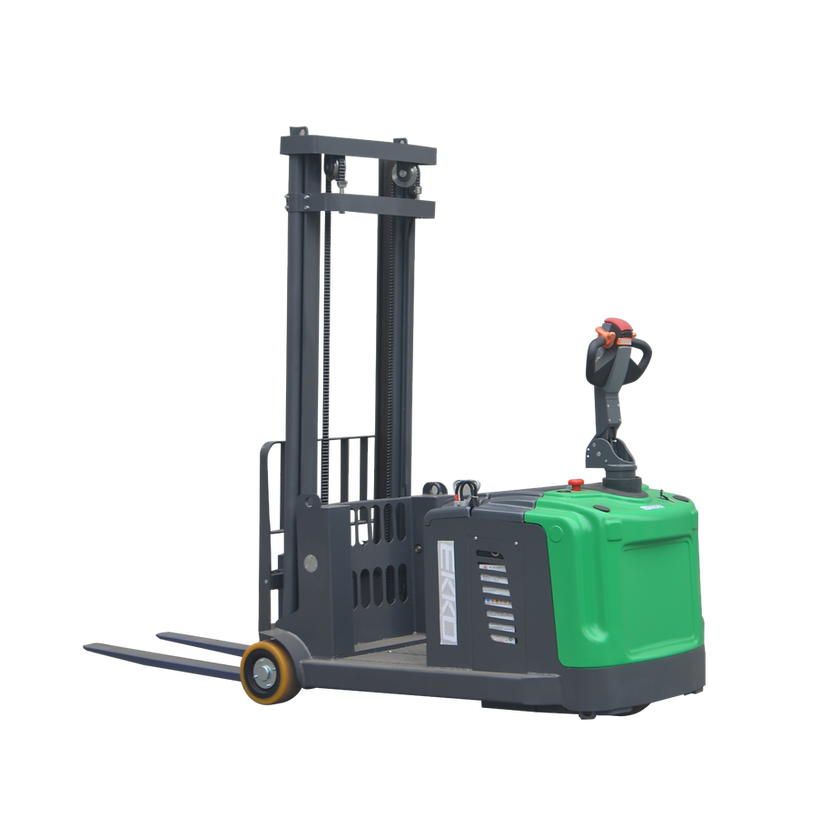

EKKO EK14S-130LI Lithium Counterbalanced Walkie Stacker | SIDE-SHIFTING | 130" Lift Height | 3300 lb Capacity | EK14S-130LI
The EKKO EK14S-130Li is a lithium-powered counterbalanced walkie stacker with integrated side-shifting forks, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with 3,300 lb. capacity, 130-inch lift height, lateral load positioning capability, and the low-maintenance advantages of a 24V / 150Ah lithium-ion battery. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from ground-level racking with restricted clearance, while the side-shifting carriage provides precise lateral load adjustment without repositioning the truck. Powered by a 24V AC 2,500W drive motor, 24V 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller, it delivers fully powered operation with a 57 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, 24V / 50A charger, and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 84 in. for low-clearance aisle and door entry
- Side-Shifting Forks with Adjustable Width and Tilt - Integrated side-shifting fork carriage allows lateral load adjustment without repositioning the truck, with forks adjustable from 8.6 to 28.3 in. O.D., 45.3 in. fork length, and 2°/5° forward/backward tilt
- 24V / 150Ah Lithium-Ion Battery with 24V / 50A Charger Included - Ships with a 24V / 150Ah lithium-ion battery and 24V / 50A charger at no additional cost, enabling faster opportunity charging compared to lead acid counterparts with reduced routine maintenance
- Dual 24V AC 2,500W Drive and Lift Motors with EPS - Equipped with a 24V / 2,500W AC drive motor, 24V / 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller for responsive, fully powered operation across continuous shift use
- 57 in. Turning Radius with 39 in. Overall Width - At 39 in. overall width, 113 in. overall length, and a 57 in. turning radius, the EK14S-130Li is sized for standard warehouse aisle configurations with the side-shifting carriage adding load positioning flexibility
- Model Number
- EK14S-130Li
- Product Type
- Lithium-Powered Counterbalanced Walkie Stacker with Side Shift
- Load Capacity
- 3,300 lbs
- Load Center
- 24 in.
- Lift Height
- 130 in.
- Free Lifting Height
- 4 in.
- Mast Overall Height (Lowered)
- 84 in.
- Extended Mast Height
- 167 in.
- Mast Tilt (Forward / Backward)
- 2° / 5°
- Overall Length
- 113 in.
- Overall Width
- 39 in.
- Wheelbase
- 47 in.
- Turning Radius
- 57 in.
- Service Weight
- 3,840 lbs
- Fork Size (Thick / Width / Length)
- 1.4 in. x 4 in. x 45.3 in.
- Fork Adjust Width
- 8.6 in. – 28.3 in.
- Side Shift
- Standard
- Lifting Speed (Laden / Unladen)
- 4 in/s / 5.1 in/s
- Lowering Speed (Laden / Unladen)
- 5.3 in/s / 4.7 in/s
- Max Gradeability (Laden / Unladen)
- 6% / 10%
- Power Type
- Lithium-Ion Electric
- Battery
- 24V / 150Ah Lithium-Ion (Included)
- Charger
- 24V / 50A (Included)
- Drive Motor
- 24V / 2,500W AC
- Lift Motor
- 24V / 2,500W
- Steering Motor
- 24V / 200W EPS
- Controller
- Curtis
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
