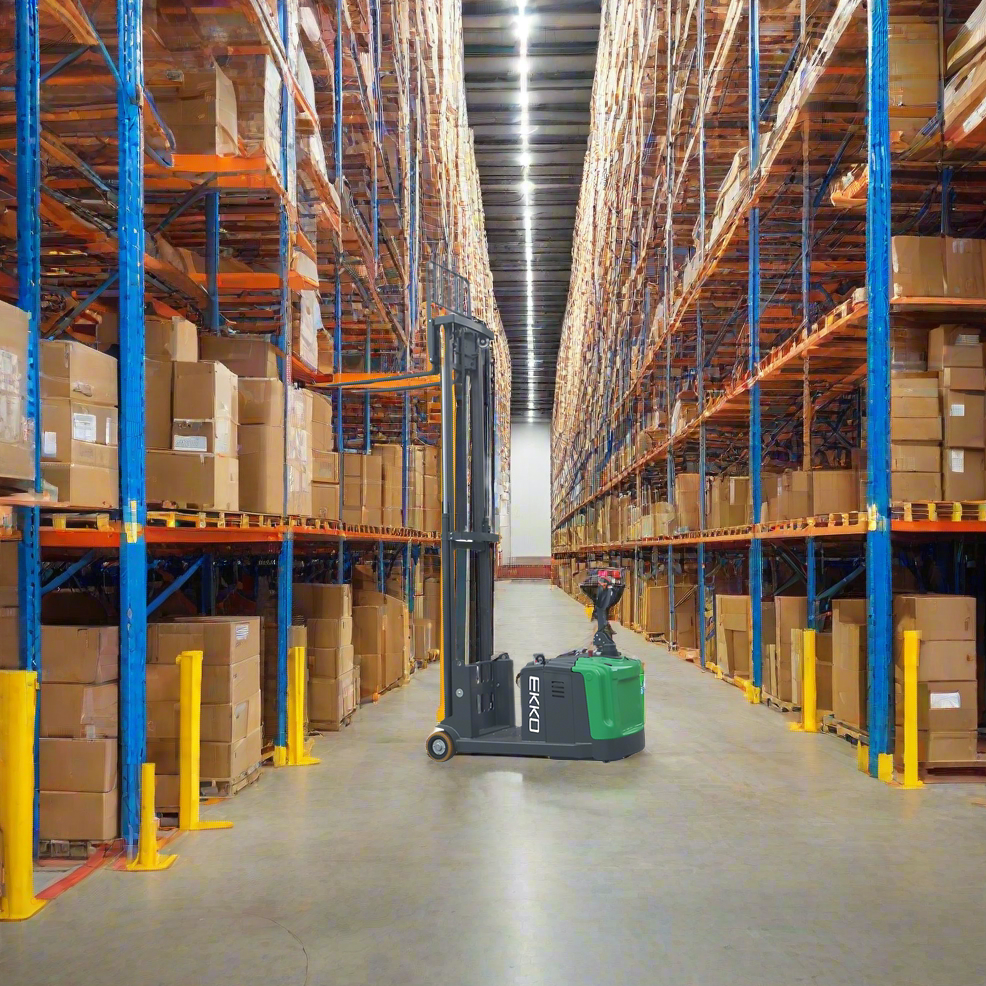

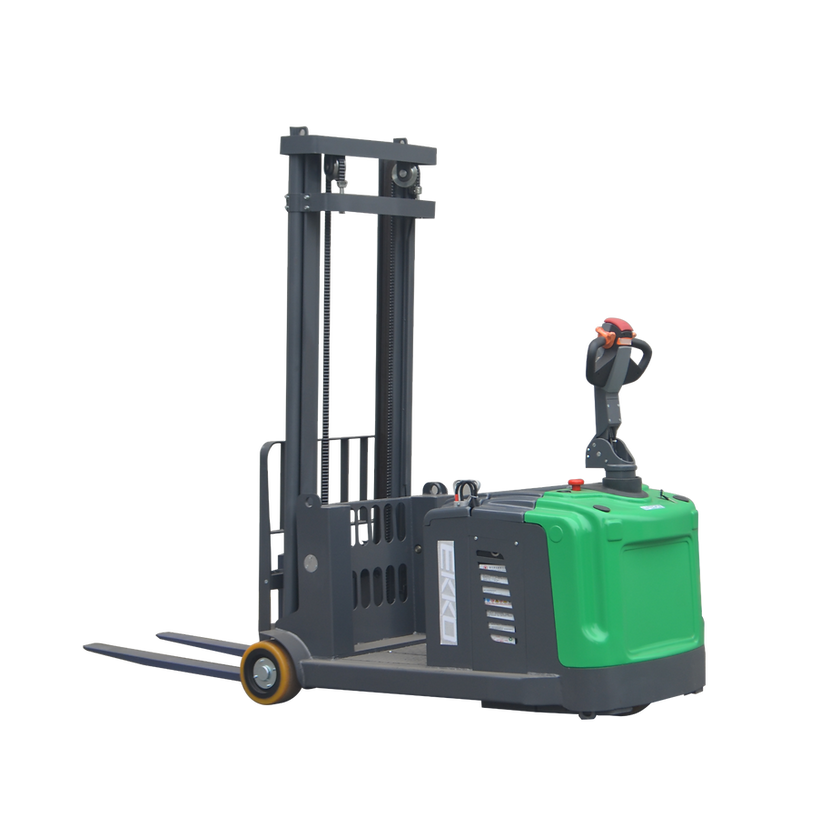

The EKKO EK14S-130Li is a lithium-powered counterbalanced walkie stacker with integrated side-shifting forks, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with 3,300 lb. capacity, 130-inch lift height, lateral load positioning capability, and the low-maintenance advantages of a 24V / 150Ah lithium-ion battery. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from ground-level racking with restricted clearance, while the side-shifting carriage provides precise lateral load adjustment without repositioning the truck. Powered by a 24V AC 2,500W drive motor, 24V 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller, it delivers fully powered operation with a 57 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, 24V / 50A charger, and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 84 in. for low-clearance aisle and door entry
- Side-Shifting Forks with Adjustable Width and Tilt - Integrated side-shifting fork carriage allows lateral load adjustment without repositioning the truck, with forks adjustable from 8.6 to 28.3 in. O.D., 45.3 in. fork length, and 2°/5° forward/backward tilt
- 24V / 150Ah Lithium-Ion Battery with 24V / 50A Charger Included - Ships with a 24V / 150Ah lithium-ion battery and 24V / 50A charger at no additional cost, enabling faster opportunity charging compared to lead acid counterparts with reduced routine maintenance
- Dual 24V AC 2,500W Drive and Lift Motors with EPS - Equipped with a 24V / 2,500W AC drive motor, 24V / 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller for responsive, fully powered operation across continuous shift use
- 57 in. Turning Radius with 39 in. Overall Width - At 39 in. overall width, 113 in. overall length, and a 57 in. turning radius, the EK14S-130Li is sized for standard warehouse aisle configurations with the side-shifting carriage adding load positioning flexibility

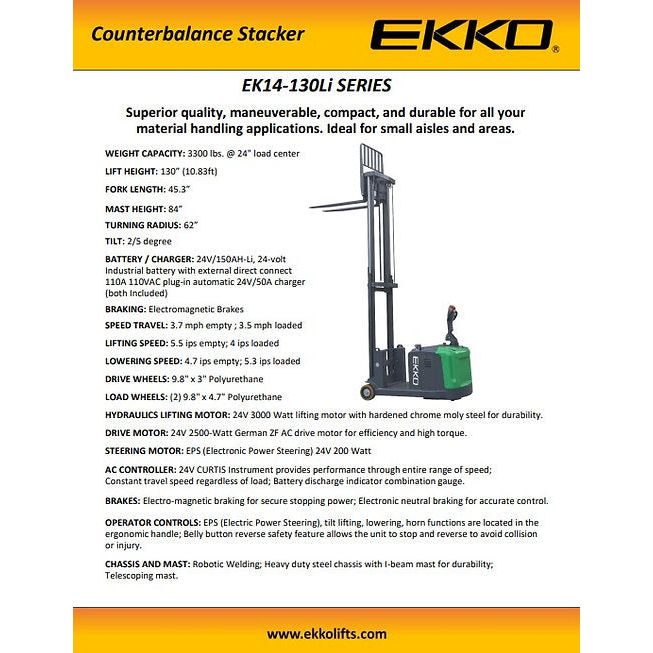

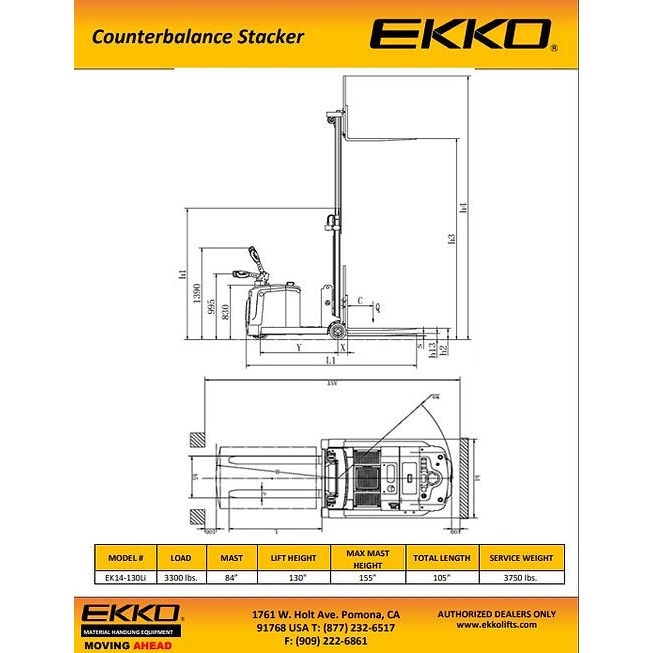

Product Specifications:
| Model Number | EK14S-130Li |
| Product Type | Lithium-Powered Counterbalanced Walkie Stacker with Side Shift |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 130 in. |
| Free Lifting Height | 4 in. |
| Mast Overall Height (Lowered) | 84 in. |
| Extended Mast Height | 167 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 113 in. |
| Overall Width | 39 in. |
| Wheelbase | 47 in. |
| Turning Radius | 57 in. |
| Service Weight | 3,840 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 45.3 in. |
| Fork Adjust Width | 8.6 in. – 28.3 in. |
| Side Shift | Standard |
| Lifting Speed (Laden / Unladen) | 4 in/s / 5.1 in/s |
| Lowering Speed (Laden / Unladen) | 5.3 in/s / 4.7 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Lithium-Ion Electric |
| Battery | 24V / 150Ah Lithium-Ion (Included) |
| Charger | 24V / 50A (Included) |
| Drive Motor | 24V / 2,500W AC |
| Lift Motor | 24V / 2,500W |
| Steering Motor | 24V / 200W EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
