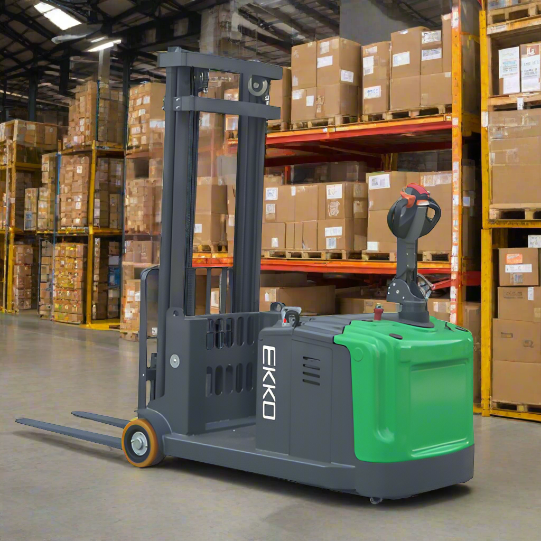

EKKO EK14-130Li Lithium Counterbalanced Walkie Stacker | 130" Lift Height | 3300 lb Capacity
The EKKO EK14-130Li is a lithium-powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with a 3,300 lb. capacity, 130-inch lift height, and the reduced maintenance and opportunity-charging benefits of a 24V / 150Ah lithium-ion battery. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from ground-level racking with restricted clearance, while the lithium battery with included 24V / 50A charger enables faster recharging compared to the lead acid EK14-130 variant. Powered by a 2.5 kW center drive motor and 3.0 kW lift motor with Curtis controller and Electronic Power Steering, it operates with a 62 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, charger, and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 84 in. for low-clearance aisle and door entry
- 24V / 150Ah Lithium-Ion Battery with 24V / 50A Charger Included - Ships with a 24V / 150Ah lithium-ion battery and a 24V / 50A charger at no additional cost, supporting faster opportunity charging during breaks compared to standard lead acid configurations
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing pallet retrieval from low-clearance racking and floor-level positions where standard straddle stackers cannot operate
- 2.5 kW Center Drive and 3.0 kW Lift Motor with Curtis Controller - Equipped with a 2.5 kW center AC drive motor, 3.0 kW lift motor, 24V / 0.2 kW EPS steering motor, and Curtis controller for responsive, fully powered drive and lift operation
- Compact 62 in. Turning Radius with Standard Aisle Compatibility - At 39 in. overall width, 105 in. overall length, and a 62 in. turning radius, the EK14-130Li operates in aisles as narrow as 119 in. for crossways pallets and 123 in. for lengthways pallets
- Model Number
- EK14-130Li
- Product Type
- Lithium-Powered Counterbalanced Walkie Stacker
- Load Capacity
- 3,300 lbs
- Load Center
- 24 in.
- Lift Height
- 130 in.
- Free Lifting Height
- 4 in.
- Mast Overall Height (Lowered)
- 84 in.
- Extended Mast Height
- 155 in.
- Mast Tilt (Forward / Backward)
- 2° / 5°
- Overall Length
- 105 in.
- Overall Width
- 39 in.
- Wheelbase
- 47 in.
- Turning Radius
- 62 in.
- Min. Aisle Width (Crossways Pallet)
- 119 in.
- Min. Aisle Width (Lengthways Pallet)
- 123 in.
- Ground Clearance (under Mast)
- 2.4 in.
- Service Weight (with Battery)
- 3,750 lbs
- Fork Size (Thick / Width / Length)
- 1.4 in. x 4 in. x 37 in.
- Fork Adjust Width
- 8.7 in. – 28 in.
- Lifting Speed (Laden / Unladen)
- 4 in/s / 5.5 in/s
- Lowering Speed (Laden / Unladen)
- 5.3 in/s / 4.7 in/s
- Max Gradeability (Laden / Unladen)
- 6% / 10%
- Power Type
- Lithium-Ion Electric
- Battery
- 24V / 150Ah Lithium-Ion (Included)
- Charger
- 24V / 50A (Included)
- Drive Motor
- 2.5 kW Center AC
- Lift Motor
- 3.0 kW
- Steering Motor
- 24V / 0.2 kW EPS
- Controller
- Curtis
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
