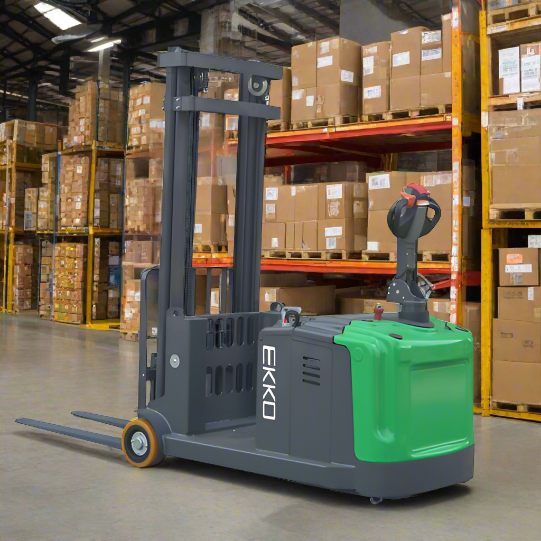

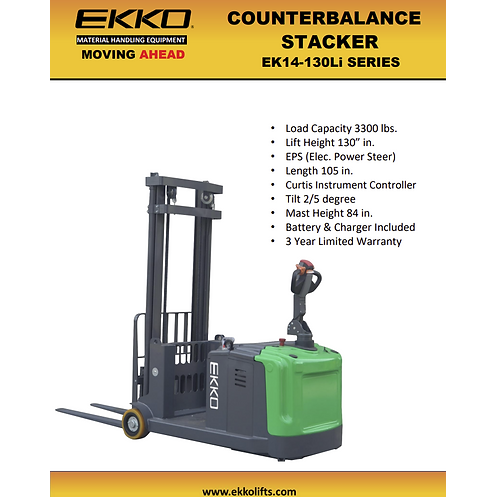

The EKKO EK14-130Li is a lithium-powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with a 3,300 lb. capacity, 130-inch lift height, and the reduced maintenance and opportunity-charging benefits of a 24V / 150Ah lithium-ion battery. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from ground-level racking with restricted clearance, while the lithium battery with included 24V / 50A charger enables faster recharging compared to the lead acid EK14-130 variant. Powered by a 2.5 kW center drive motor and 3.0 kW lift motor with Curtis controller and Electronic Power Steering, it operates with a 62 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, charger, and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 84 in. for low-clearance aisle and door entry
- 24V / 150Ah Lithium-Ion Battery with 24V / 50A Charger Included - Ships with a 24V / 150Ah lithium-ion battery and a 24V / 50A charger at no additional cost, supporting faster opportunity charging during breaks compared to standard lead acid configurations
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing pallet retrieval from low-clearance racking and floor-level positions where standard straddle stackers cannot operate
- 2.5 kW Center Drive and 3.0 kW Lift Motor with Curtis Controller - Equipped with a 2.5 kW center AC drive motor, 3.0 kW lift motor, 24V / 0.2 kW EPS steering motor, and Curtis controller for responsive, fully powered drive and lift operation

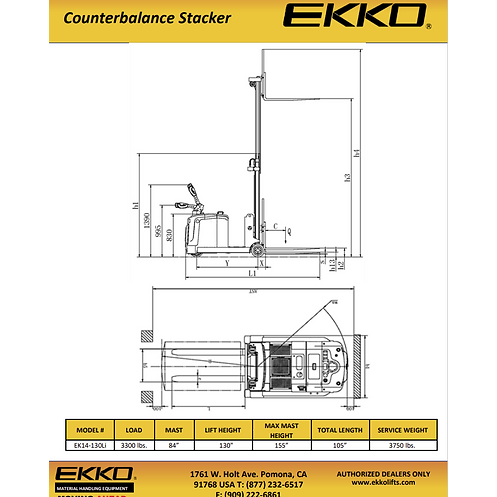

- Compact 62 in. Turning Radius with Standard Aisle Compatibility - At 39 in. overall width, 105 in. overall length, and a 62 in. turning radius, the EK14-130Li operates in aisles as narrow as 119 in. for crossways pallets and 123 in. for lengthways pallets

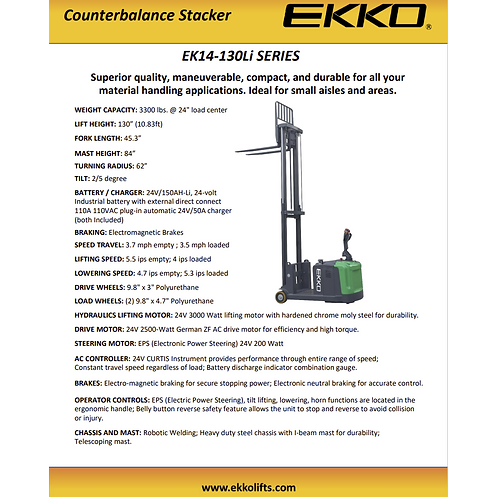

Product Specifications:
| Model Number | EK14-130Li |
| Product Type | Lithium-Powered Counterbalanced Walkie Stacker |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 130 in. |
| Free Lifting Height | 4 in. |
| Mast Overall Height (Lowered) | 84 in. |
| Extended Mast Height | 155 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 105 in. |
| Overall Width | 39 in. |
| Wheelbase | 47 in. |
| Turning Radius | 62 in. |
| Min. Aisle Width (Crossways Pallet) | 119 in. |
| Min. Aisle Width (Lengthways Pallet) | 123 in. |
| Ground Clearance (under Mast) | 2.4 in. |
| Service Weight (with Battery) | 3,750 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 37 in. |
| Fork Adjust Width | 8.7 in. – 28 in. |
| Lifting Speed (Laden / Unladen) | 4 in/s / 5.5 in/s |
| Lowering Speed (Laden / Unladen) | 5.3 in/s / 4.7 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Lithium-Ion Electric |
| Battery | 24V / 150Ah Lithium-Ion (Included) |
| Charger | 24V / 50A (Included) |
| Drive Motor | 2.5 kW Center AC |
| Lift Motor | 3.0 kW |
| Steering Motor | 24V / 0.2 kW EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
