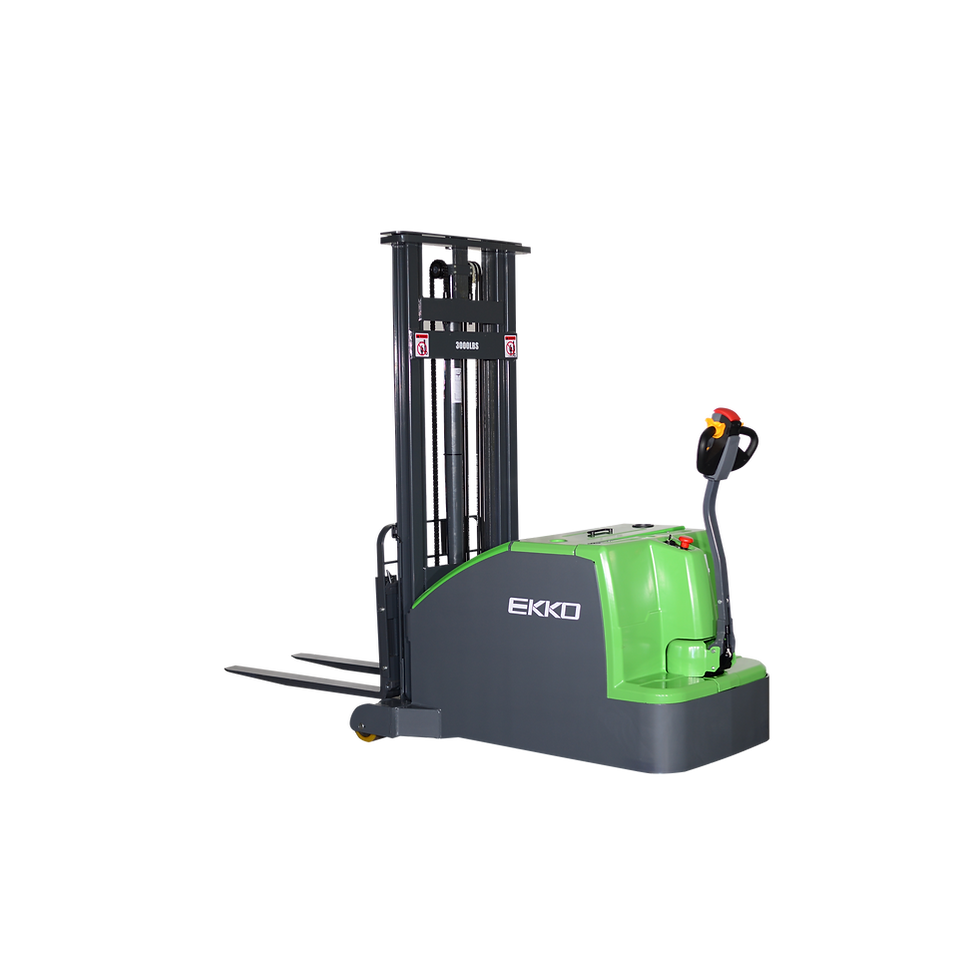

The EKKO EK14C-130Li is a lithium-powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with a 3,000 lb. capacity, 130-inch lift height, and the low-maintenance advantages of a 24V / 150Ah lithium-ion battery. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from low-clearance racking and ground-level positions inaccessible to straddle-leg stackers, with side-shifting capability available and 4-inch free lift for low-clearance entry. Powered by dual 24V / 2,500W AC motors for drive and lift, a 24V / 200W EPS steering motor, and a Curtis controller, it delivers fully powered operation with a 57 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, 24V / 50A charger, and a 3-year limited warranty are included standard.
- 3,000 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,000 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., a lowered mast height of 85.6 in., and an extended mast height of 158.7 in.
- 24V / 150Ah Lithium-Ion Battery with 24V / 50A Charger Included - Ships with a 24V / 150Ah lithium-ion battery and 24V / 50A charger at no additional cost, supporting faster opportunity charging compared to the lead acid EK14C-130 variant with reduced routine maintenance
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing pallet retrieval from low-clearance racking and floor-level positions where standard straddle stackers cannot operate
- Dual 24V / 2,500W AC Drive and Lift Motors with EPS - Equipped with a 24V / 2,500W AC drive motor, 24V / 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller for responsive, fully powered operation across continuous shift use
- 57 in. Turning Radius with Adjustable Tilting Forks - At 42.1 in. overall width, 118 in. overall length, and a 57 in. turning radius, with forks adjustable from 8.6 to 26 in. O.D. and 2°/5° tilt for flexible pallet handling
Product Specifications:
| Model Number | EK14C-130Li |
| Product Type | Lithium-Powered Counterbalanced Walkie Stacker |
| Load Capacity | 3,000 lbs |
| Load Center | 24 in. |
| Lift Height | 130 in. |
| Side Shift Distance | 4 in. |
| Mast Overall Height (Lowered) | 85.6 in. |
| Extended Mast Height | 158.7 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 118 in. |
| Overall Width | 42.1 in. |
| Wheelbase | 47 in. |
| Turning Radius | 57 in. |
| Service Weight | 4,230 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 42.1 in. |
| Fork Adjust Width | 8.6 in. – 26 in. |
| Lifting Speed (Laden / Unladen) | 2.95 in/s / 3.94 in/s |
| Lowering Speed (Laden / Unladen) | 5.3 in/s / 4.7 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Lithium-Ion Electric |
| Battery | 24V / 150Ah Lithium-Ion (Included) |
| Charger | 24V / 50A (Included) |
| Drive Motor | 24V / 2,500W AC |
| Lift Motor | 24V / 2,500W |
| Steering Motor | 24V / 200W EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
