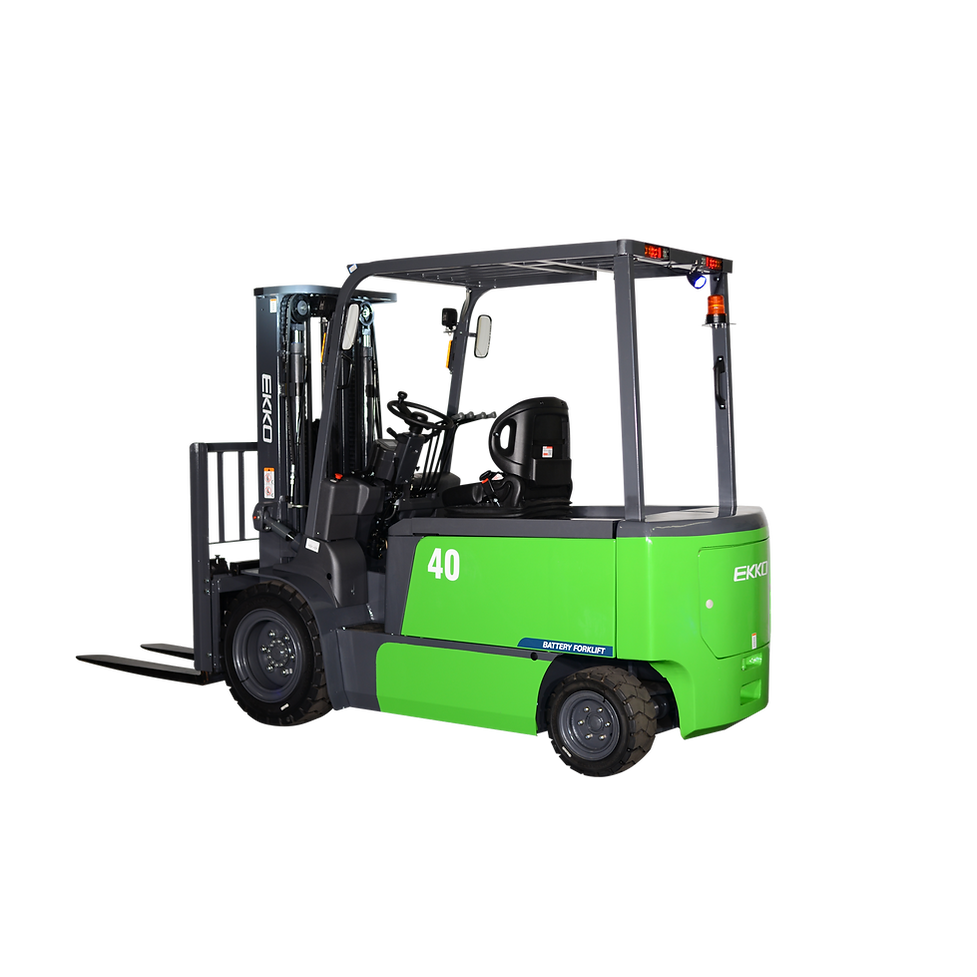

The EKKO EK40T-Li is a 4-wheel lithium-powered electric counterbalanced forklift designed for heavy-duty material handling, warehousing, and distribution operations requiring a high-capacity zero-emission unit for continuous multi-shift use. Rated for 8,000 lbs at a 24-inch load center with a maximum lift height of 185 inches, the unit is powered by an 80V / 230Ah lithium-ion battery and controlled by an Inmotion AC drive system for responsive, low-maintenance electric operation. Standard equipment includes Cascade side shift, Shimadzu 4-way hydraulic valve pre-plumbed, solid pneumatic tires, and a hydraulic floor pedal brake, making this model suited for high-volume distribution centers, manufacturing facilities, and operations transitioning from combustion forklifts to lithium-electric alternatives. The steel frame is constructed with robotic welding and backed by a 3-year limited warranty.
- 8,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 8,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 43.7 in.
- 80V / 230Ah Lithium-Ion Battery - High-capacity 80V / 230Ah lithium-ion battery pack delivers extended runtime for demanding multi-shift operations with lower maintenance requirements compared to lead acid alternatives
- Inmotion AC Drive Controller - Equipped with an Inmotion AC drive motor and controller for smooth speed regulation, regenerative braking, and reliable electric drivetrain performance across continuous heavy-duty cycles
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and responsive mast control straight from delivery
- Compact Profile for 8,000 lb. Class Unit - At 45.2 in. overall width, 62.9 in. wheelbase, and 99.6 in. body length without forks, the EK40T-Li maintains a narrow footprint suited for standard warehouse aisle configurations despite its high rated capacity
Product Specifications:
| Model Number | EK40T-Li |
| Product Type | 4-Wheel Lithium-Ion Electric Counterbalanced Forklift |
| Load Capacity | 8,000 lbs |
| Load Center | 24 in. |
| Lift Height | 185 in. |
| Free Lifting Height | 43.7 in. |
| Overall Height with Forks Lifted | 158.6 in. |
| Mast Overall Height (Lowered) | 89 in. |
| Overall Length (with Forks) | 144.6 in. |
| Overall Length (without Forks) | 99.6 in. |
| Overall Width | 45.2 in. |
| Wheelbase | 62.9 in. |
| Ground Clearance (at Mast) | 4.3 in. |
| Fork Size | 42.1 in. x 4.8 in. x 1.5 in. |
| Power Type | Lithium-Ion Electric |
| Battery | 80V / 230Ah Lithium-Ion |
| Drive Motor | AC Drive Motor |
| Controller | Inmotion |
| Service Brake | Hydraulic Floor Pedal |
| Hydraulic Valve | Shimadzu 4-Way (Pre-Plumbed) |
| Side Shift | Cascade (Standard) |
| Tire Type | Solid Pneumatic |
| Construction | High-Strength Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
