EKKO EK25T-LI Lithium 4-Wheel Forklift, 5000 lbs. Capacity | 185" Lift Height

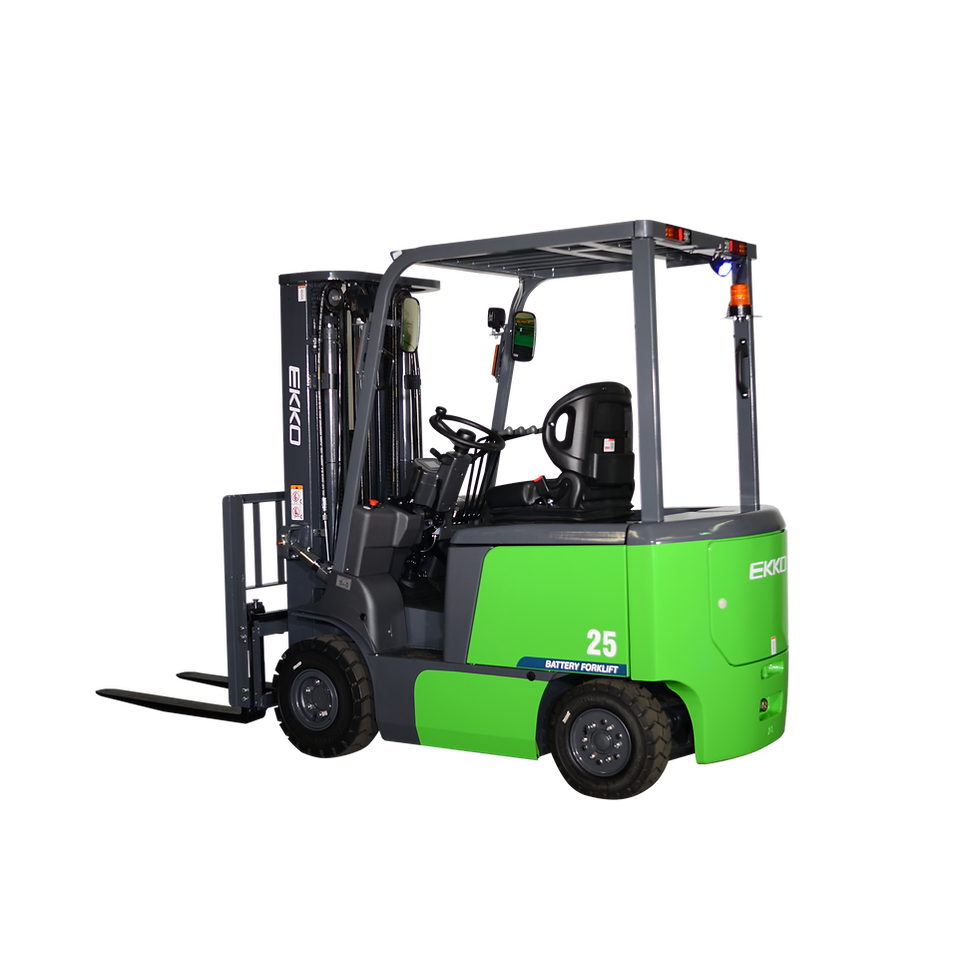

The EKKO EK25T-Li is a 4-wheel lithium-powered electric counterbalanced forklift designed for material handling, warehousing, and distribution operations requiring zero-emission, battery-electric performance across continuous multi-shift environments. Rated for 5,000 lbs at a 24-inch load center with a maximum lift height of 185 inches, the unit is powered by an 80V / 202Ah lithium-ion battery with a dedicated 80V / 100A charger and controlled by an Inmotion AC drive system. Standard equipment includes Cascade side shift, Shimadzu 4-way hydraulic valve pre-plumbed, solid pneumatic tires, and a hydraulic floor pedal brake, making this model well suited for warehouses, distribution centers, and manufacturing facilities transitioning to lithium-electric lift equipment. The steel frame is constructed with robotic welding and backed by a 3-year limited warranty.
- 5,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 5,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 43.7 in.
- 80V / 202Ah Lithium-Ion Battery with Fast Charging - Powered by an 80V / 202Ah lithium-ion battery pack with an included 80V / 100A charger, delivering approximately 2-hour recharge capability for continuous operation across extended shifts
- Inmotion AC Drive Controller - Equipped with an Inmotion AC drive motor and controller for smooth, responsive speed regulation, regenerative braking, and low-maintenance electric drivetrain performance

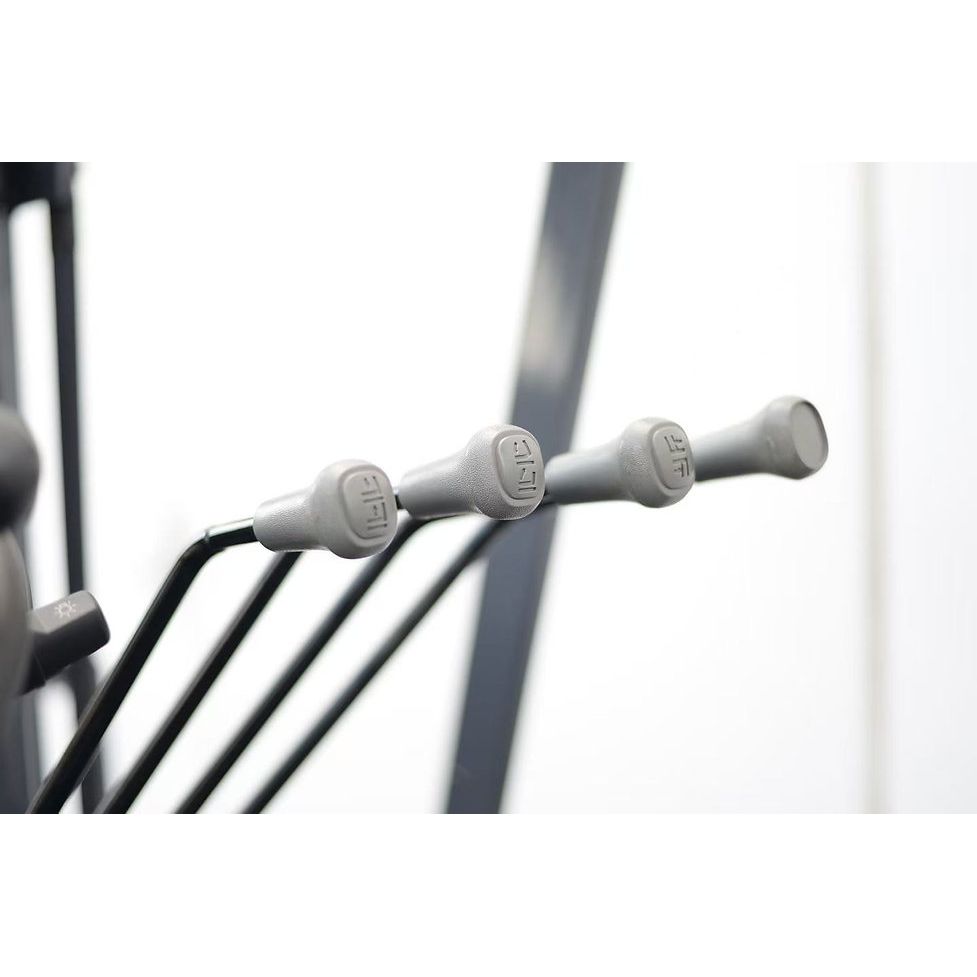

- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and responsive mast control straight from delivery
- Compact Aisle Profile - At 45.2 in. overall width, 62.9 in. wheelbase, and 99.6 in. body length without forks, the EK25T-Li is sized for standard warehouse aisles and tight-space maneuvering
- Model Number
- EK25T-Li
- Product Type
- 4-Wheel Lithium-Ion Electric Counterbalanced Forklift
- Load Capacity
- 5,000 lbs
- Load Center
- 24 in.
- Lift Height
- 185 in.
- Free Lifting Height
- 43.7 in.
- Overall Height with Forks Lifted
- 158.6 in.
- Mast Overall Height (Lowered)
- 83 in.
- Overall Length (with Forks)
- 144.6 in.
- Overall Length (without Forks)
- 99.6 in.
- Overall Width
- 45.2 in.
- Wheelbase
- 62.9 in.
- Ground Clearance (at Mast)
- 4.3 in.
- Fork Size
- 42.1 in. x 4.8 in. x 1.5 in.
- Power Type
- Lithium-Ion Electric
- Battery
- 80V / 202Ah Lithium-Ion
- Charger
- 80V / 100A
- Drive Motor
- AC Drive Motor
- Controller
- Inmotion
- Service Brake
- Hydraulic Floor Pedal
- Hydraulic Valve
- Shimadzu 4-Way (Pre-Plumbed)
- Side Shift
- Cascade (Standard)
- Tire Type
- Solid Pneumatic
- Construction
- High-Strength Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
