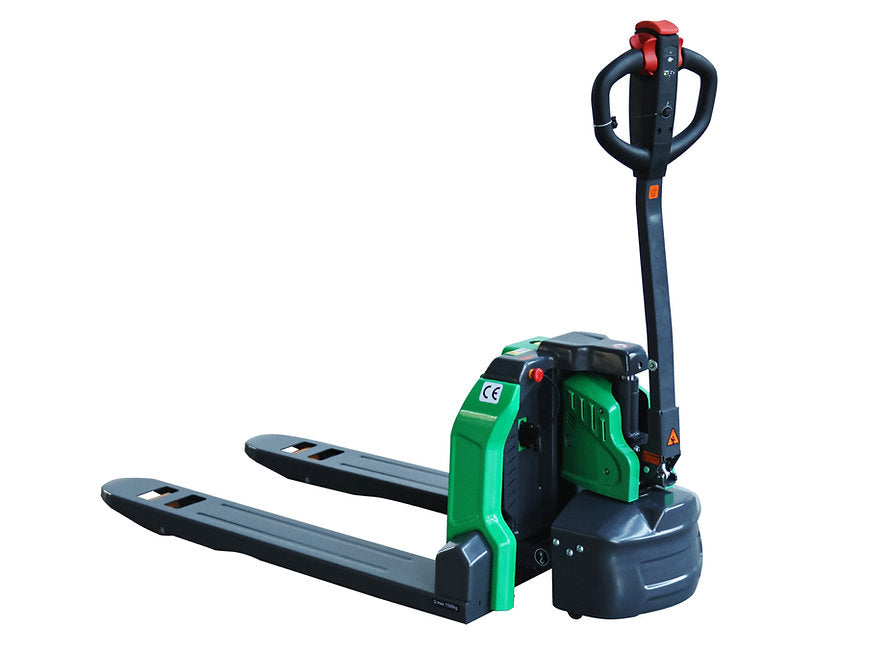

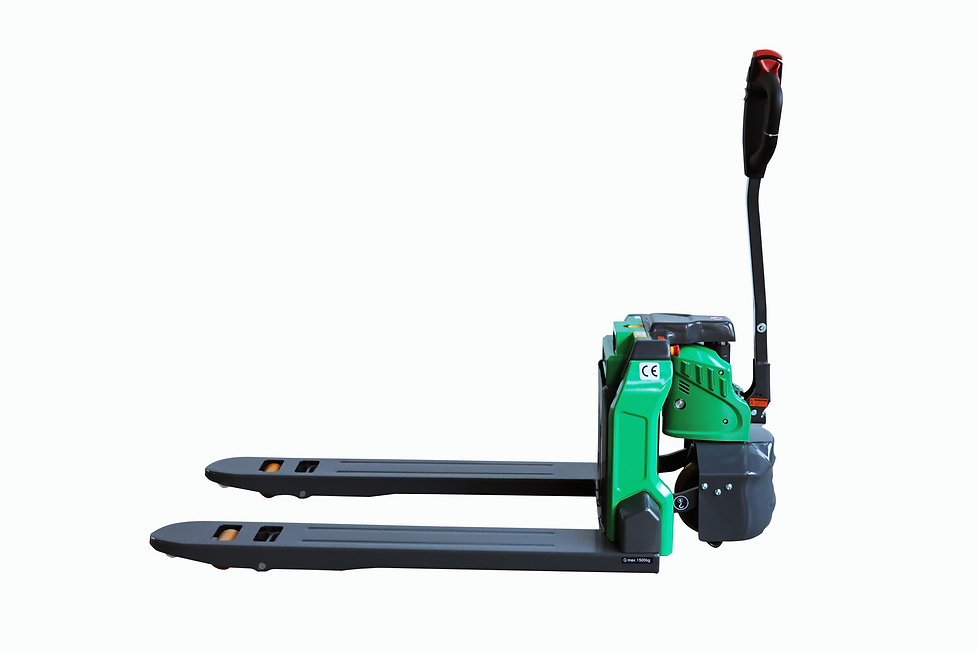

The EKKO EPT18Li combines the maneuverability of a standard pallet jack with the high-performance efficiency of full electric lift and drive. Engineered for demanding environments, this lithium-powered unit excels at long-distance transport, truck loading, and navigating busy warehouse floors. Built with a rugged steel chassis and premium drive components, it is designed to handle tough terrain and frequent directional shifts with ease.
- Load Capacity 4000lbs.
- Fork Size 27x45
- Raised Height 7.68"
- Lowered Height 3.35"
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Removable Battery 24V/30Ah Included
- 3 Years Limited Warranty
Specifications
| Model | EPT18Li | |
| Power unit | Lithium Battery | |
| Operation | Control | |
| Rated loading capacity | Q (LBS) | 4000 |
| Load center distance | c (Inch) | 24 |
| Wheel base | y (Inch) | 81.89 |
| Wheels type | PU | |
| Lifting height | h3 (Inch) | 7.68" |
| Overall height | h14 (Inch) | 42.91 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall length | l1 (Inch) | 64.17 |
| Overall width | b1/ b2 (Inch) | 31.81 |
| Fork Size | s/e/l (Inch) | 2.24/6.3/45.28 |
| Fork Width | b5 (Inch) | 26.97 |
| Min.Ground clearance | m2 (Inch) | 0.98 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 88.5 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 85.2 |
| Turning Radius | Wa (Inch) | 58.82 |
| Travel speed,laden/unladen | (mph) | 2.49/2.8 |
| Lifting speed, with/without load | (in/s) | 0.59/0.76 |
| Lowering speed, with/without load | (in/s) | 6/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.85 |
| Lift Motor | (kW) | 0.7 |
| Battery voltage/rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | (LBS) | 13.9 |
| Type of drive control | DC | |
| Service weight with battery | LBS | 350 |
