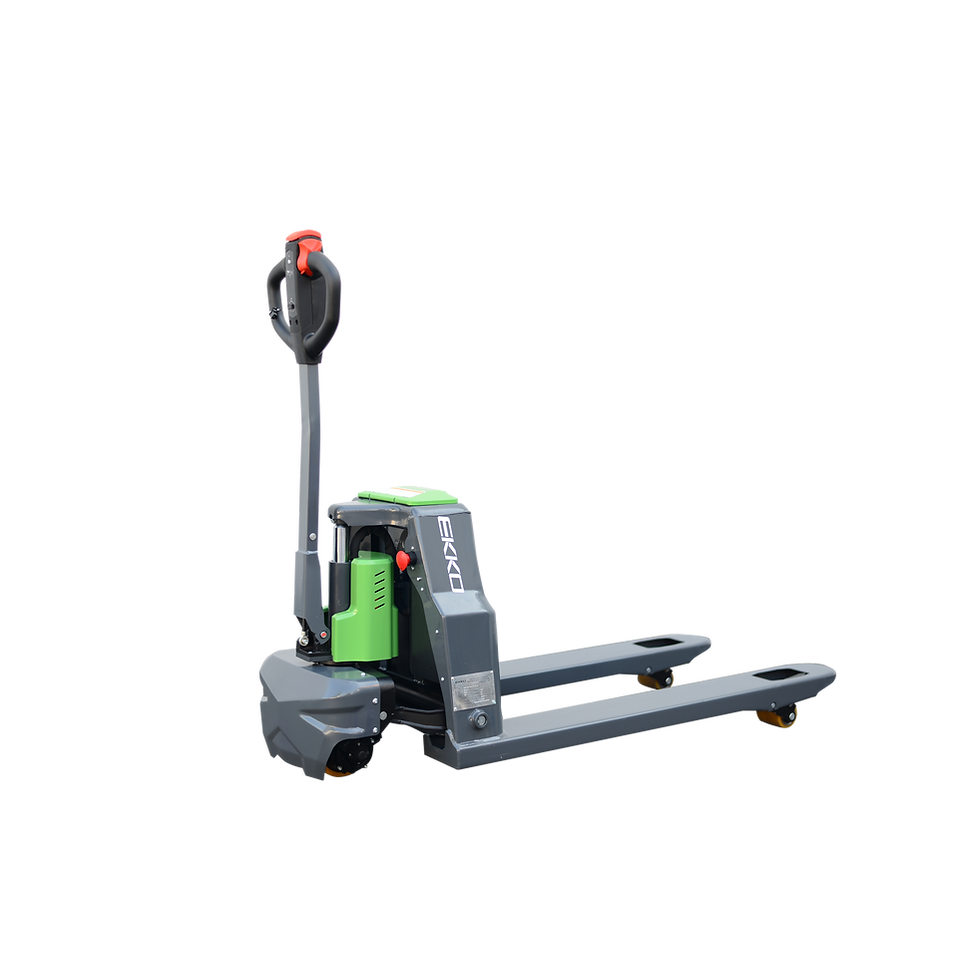

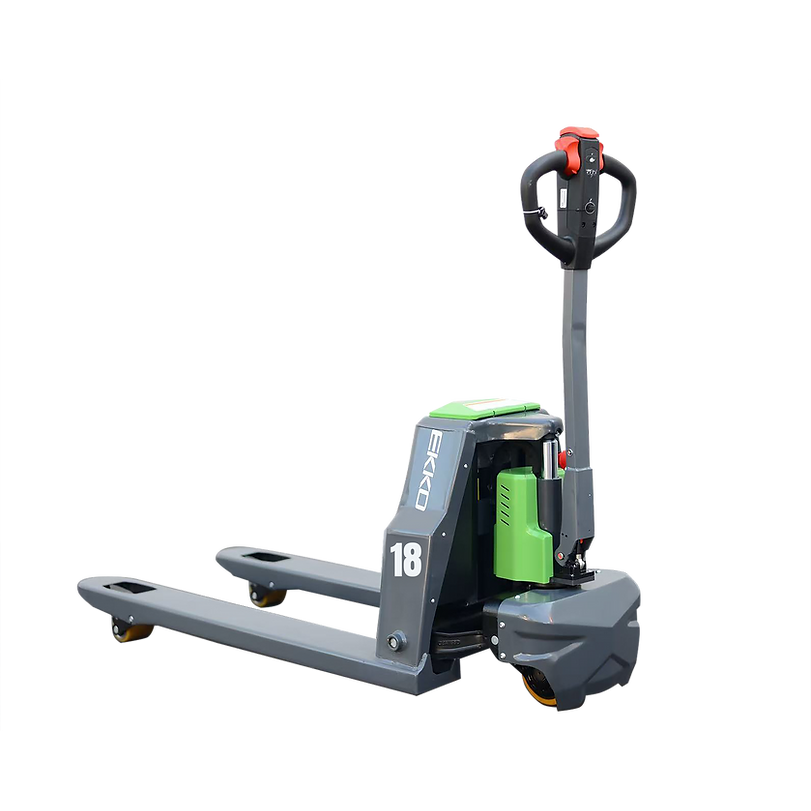

EKKO Full-Powered Lithium Pallet Jack | 4000 lb Capacity | EPC18LI
Product Description
The EKKO EPC18Li Full-Powered Lithium Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000lbs.
- Fork Size 27x45
- Raised Height 7.68"
- Lowered Height 3.35"
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery 24V/30Ah Included
- 3 Years Limited Warranty
Specifications
| Model | EPC18Li | |
| Power unit | Lithium Battery | |
| Operation | Control | |
| Rated loading capacity | Q (LBS) | 4000 |
| Load center distance | c (Inch) | 24 |
| Wheel base | y (Inch) | 81.89 |
| Wheels type | PU | |
| Lifting height | h3 (Inch) | 7.68" |
| Overall height | h14 (Inch) | 42.91 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall length | l1 (Inch) | 64.17 |
| Overall width | b1/ b2 (Inch) | 31.81 |
| Fork Size | s/e/l (Inch) | 2.24/6.3/45.28 |
| Fork Width | b5 (Inch) | 26.97 |
| Min.Ground clearance | m2 (Inch) | 0.98 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 88.5 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 85.2 |
| Turning Radius | Wa (Inch) | 58.82 |
| Travel speed,laden/unladen | (mph) | 2.49/2.8 |
| Lifting speed, with/without load | (in/s) | 0.59/0.76 |
| Lowering speed, with/without load | (in/s) | 6/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.85 |
| Lift Motor | (kW) | 0.7 |
| Battery voltage/rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | (LBS) | 13.9 |
| Type of drive control |
DC |
|
| Service weight with battery | LBS | 260.2 |
