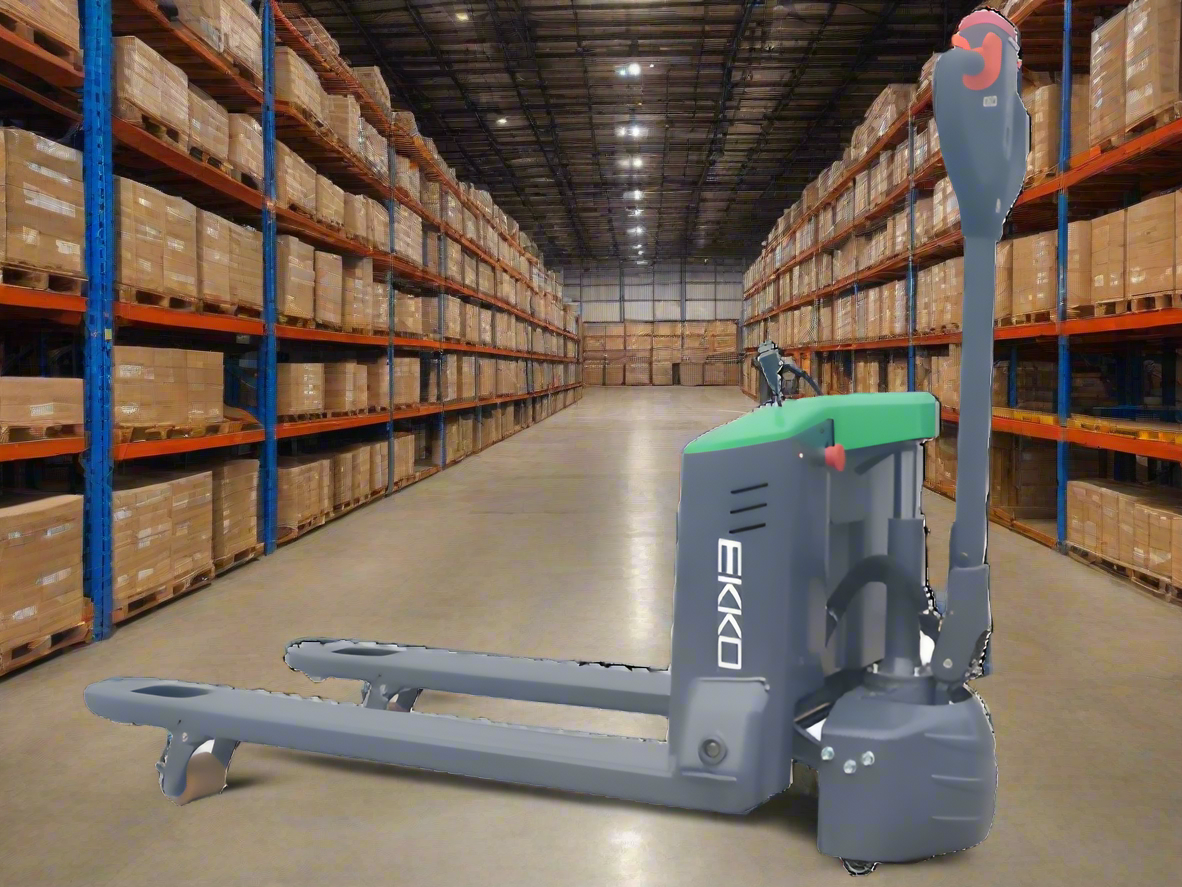

EKKO EP18JNLI Full Electric Narrow Pallet Jack | 4000 lb Cap
The EKKO EP18JNLI is a versatile Lithium Iron Phosphate electric walkie pallet jack that combines the maneuverability of a traditional pallet jack with the power for both lifting and driving. This makes it an excellent solution for a variety of material handling tasks, including truck loading/unloading, dock operations, stockroom organization, manufacturing processes, and warehouse management.
- Lithium 24V Powered
- Load Capacity 4000 lb
- Fork Size 22x45
- Raised Height 7.8"
- Lowered Height 3.35"
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- (1) Lithium Iron Battery LiFePO4 Included 24V/40Ah
- 3 Years Limited Warranty
- Model
- EP18JNLI
- Drive type
- Electric
- Manner of operation
- Walkie
- Load Capacity Q (LBS)
- 4000
- Load Centre c (Inch)
- 23.6
- Axle centre to fork face x (Inch)
- 37
- Wheel Base y (Inch)
- 47.6
- Tire material
- PU
- Driving wheel size Φ×w (Inch)
- Φ8.26×2.75
- Bearing wheel size Φ×w (Inch)
- Φ3.15×2.36
- Qty of wheel, Front/Rear (x=driving wheel)
- 1x/2
- Tread b11 (Inch)
- 21.06
- Lifting Height h3 (Inch)
- 7.8
- The height of handle in the operation position h14 (Inch)
- 30.5/43.9
- Lowered fork height h13 (Inch)
- 3.35
- Overall Length l1 (Inch)
- 61.81
- Body Length l2 (Inch)
- 16.53
- Overall Width b1/ b2 (Inch)
- 22
- Fork Sizes s/e/l (Inch)
- 1.97/5.9/45
- Fork Width b5 (Inch)
- 27
- Min.Ground clearance m2 (Inch)
- 1.38
- Aisle width for pallets 39.37*47.24 crossways Ast (Inch)
- 69.7
- Aisle width for pallets 31.5*47.24 lengthways Ast (Inch)
- 71.6
- Turing Radius Wa (Inch)
- 53.7
- Driving Speed, load/unload (km/h)
- 4.2/4.5
- Maximum gradeability load/unload (%)
- 5/10
- Brake Type
- Electromagnetic brake
- Drive Motor (kW)
- 0.75
- Lift Motor (kW)
- 0.8
- Lithium LiFePO4 Battery voltage rate capacity (V/Ah)
- 24/40
- Battery Weight （±5%）LBS
- 26.4
- Type of drive control
- DC
- Noise level (dB(A))
- ≤70
- Service Weight （with battery）LBS
- 320
