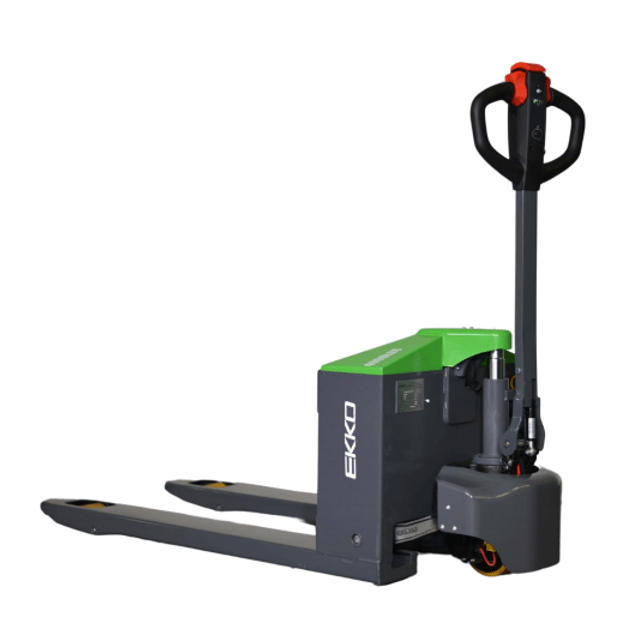

The EKKO EP18JLIC Lithium Walkie Electric Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Features
- Lithium 24V Powered
- Load Capacity: 4,000 lbs
- Fork Size: 2.24" x 6.3" x 45.28"
- Raised Height: 7.48"
- Lowered Height: 2.95"
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle
- Robotic Welding Construction
- Charger and Battery Included
- 3 Years Limited Warranty
| Model | EP18JLIC |
| Drive type | Electric |
| Manner of operation | Walkie |
| Load Capacity | 4000 LBS |
| Load Centre | 23.6 Inch |
| Axle centre to fork face | 37 Inch |
| Wheel Base | 50.3 Inch |
| Tire material | Polyurethane |
| Driving wheel size | Φ8.27×2.95 Inch |
| Bearing wheel size | Φ2.91×3.66 Inch |
| Qty of wheel (Front/Rear) | 1x/2 |
| Tread | 21.06 Inch |
| Lifting Height | 7.48 Inch |
| Height of handle in operation | 48.2 Inch |
| Lowered fork height | 2.95 Inch |
| Overall Length | 64 Inch |
| Body Length | 16.53 Inch |
| Overall Width | 27 Inch |
| Fork Size | 2.24/6.3/45.28 Inch |
| Fork Width | 27 Inch |
| Min. Ground Clearance | 1.06 Inch |
| Aisle width (crossways) | 88.9 Inch |
| Aisle width (lengthways) | 83.9 Inch |
| Turning Radius | 57.5 Inch |
| Driving Speed (load/unload) | 2.6/2.8 km/h |
| Maximum Gradeability (load/unload) | 0.24/0.39 in/s |
| Brake Type | Electromagnetic brake |
| Drive Motor | 0.75 kW |
| Lift Motor | 0.8 kW |
| Battery (Lithium LiFePO4) | 24/40 V/Ah |
| Battery Weight | 21.1 LBS |
| Drive Control | DC |
| Noise Level | ≤70 dB(A) |
| Service Weight (with battery) | 346 LBS |
Why Choose the EKKO EP18JLIC?
The EKKO EP18JLIC gives a perfect blend of power, efficiency, and maneuverability. Built for the most demanding material handling tasks, its wide features and high quality build make it a standout choice for warehouses and logistics centers.
