EKKO EB12EA Electric Straddle Stacker | 145" Lift Height | 3000 lb Capacity

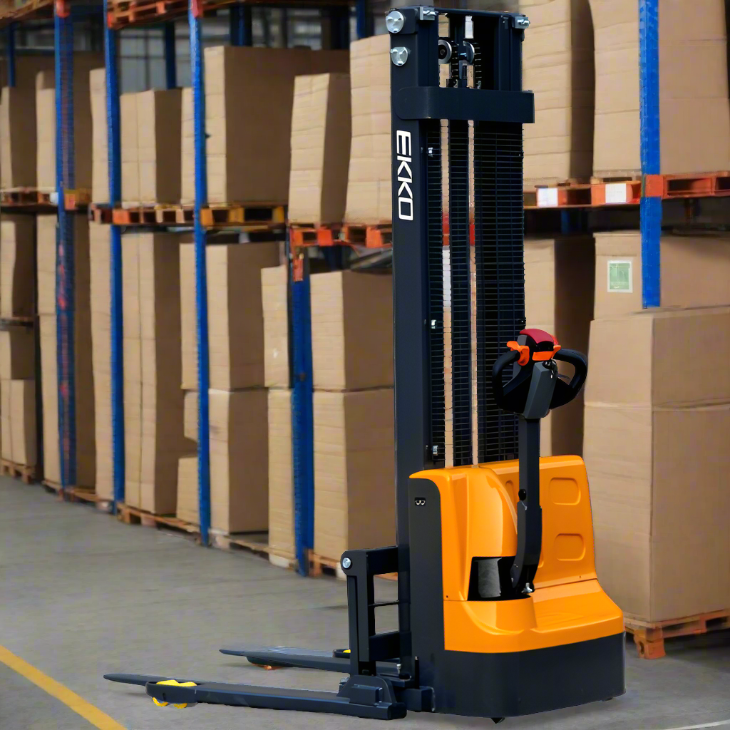

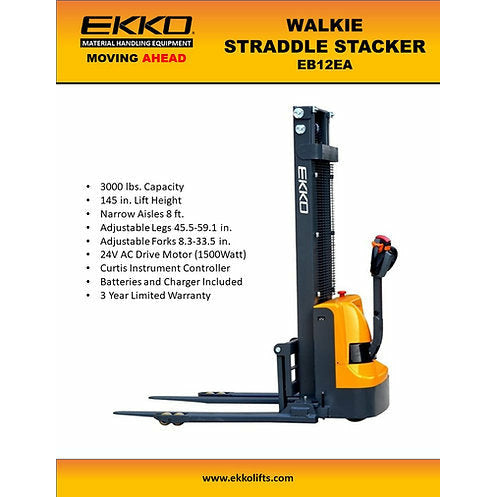

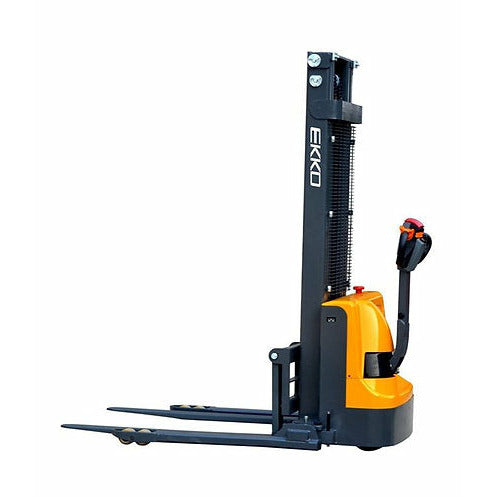

The EKKO EB12EA is a fully powered electric straddle stacker that combines the functionality of a forklift, reach truck, and walkie stacker in a single unit, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 3,000 lb. capacity lift to 145.67 inches. Outrigger legs adjust from 45.5 to 59.1 inches wide to straddle standard pallets, while forks adjust from 8.3 to 33.5 inches and extend 45.3 inches in length for versatile load handling across varied pallet configurations. Powered by a 1,500W 24V AC drive motor and 2,200W 24V lift motor, controlled by a Curtis controller, it travels at 4.0 km/h loaded and achieves a 52.6 in. turning radius for standard aisle operation. Battery and internal charger are included standard with a 3-year limited warranty.
- 3,000 lb. Capacity with 145.67 in. Maximum Lift Height - Rated for 3,000 lbs at a 24 in. load center with a maximum lift height of 145.67 in., a lowered mast height of 95.67 in., and a lowered fork height of 2.35 in. for floor-level pallet access
- Adjustable Outrigger Legs and Forks for Pallet Flexibility - Legs adjust from 45.5 to 59.1 in. to straddle standard pallets on the floor, with forks adjustable from 8.3 to 33.5 in. overall width and 45.3 in. fork length for a wide range of pallet sizes
- 1,500W Drive Motor and 2,200W Lift Motor with Curtis Controller - Equipped with a 24V / 1,500W AC drive motor producing 4.0 km/h loaded and 4.2 km/h unloaded, and a 24V / 2,200W lift motor with a lifting speed of 92 mm/s laden and 136 mm/s unladen
- Compact Footprint with 52.6 in. Turning Radius - At 70 in. overall length, 61 in. maximum overall width, and a 52.6 in. turning radius, the EB12EA is designed for maneuvering in standard warehouse aisles while accommodating wide pallet configurations
- 2×12V / 120Ah Battery and Internal 24V / 15A Charger Included - Ships with dual 12V / 120Ah batteries wired to 24V and an internal 24V / 15A charger at no additional cost, with a service weight of 1,584 lbs and a robotically welded steel frame

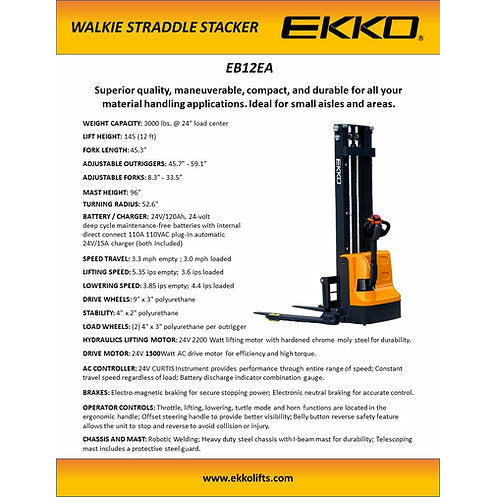

- Model Number
- EB12EA
- Product Type
- Fully Powered Electric Straddle Stacker
- Load Capacity
- 3,000 lbs
- Load Center
- 24 in.

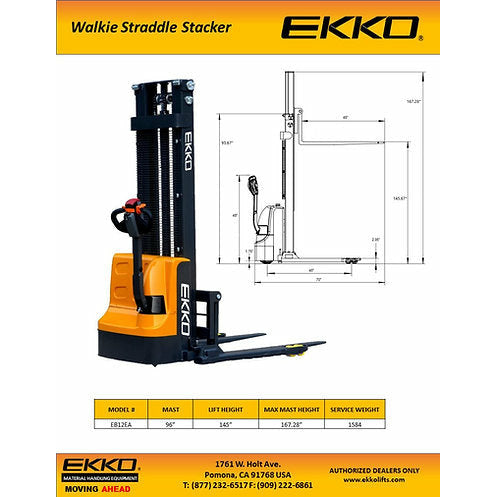

- Lift Height
- 145.67 in.
- Lowered Fork Height
- 2.35 in.
- Mast Overall Height (Lowered)
- 95.67 in.
- Extended Mast Height
- 167.28 in.
- Overall Length
- 70 in.
- Max Overall Width
- 61 in.
- Turning Radius
- 52.6 in.
- Service Weight
- 1,584 lbs
- Fork Length
- 45.3 in.
- Single Fork Width
- 4 in.
- Fork Adjust Width (Overall)
- 8.3 in. – 33.5 in.
- Fixed Leg Length
- 36.5 in.
- Adjustable Leg Width
- 45.5 in. – 59.1 in.
- Max Travel Speed (Laden / Unladen)
- 4.0 km/h / 4.2 km/h
- Lifting Speed (Laden / Unladen)
- 92 mm/s / 136 mm/s
- Lowering Speed (Laden / Unladen)
- 112 mm/s / 98 mm/s
- Power Type
- Electric
- Battery
- 2×12V / 120Ah (Included)
- Internal Charger
- 24V / 15A (Included)
- Drive Motor
- 24V / 1,500W AC
- Lift Motor
- 24V / 2,200W
- Controller
- Curtis
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
