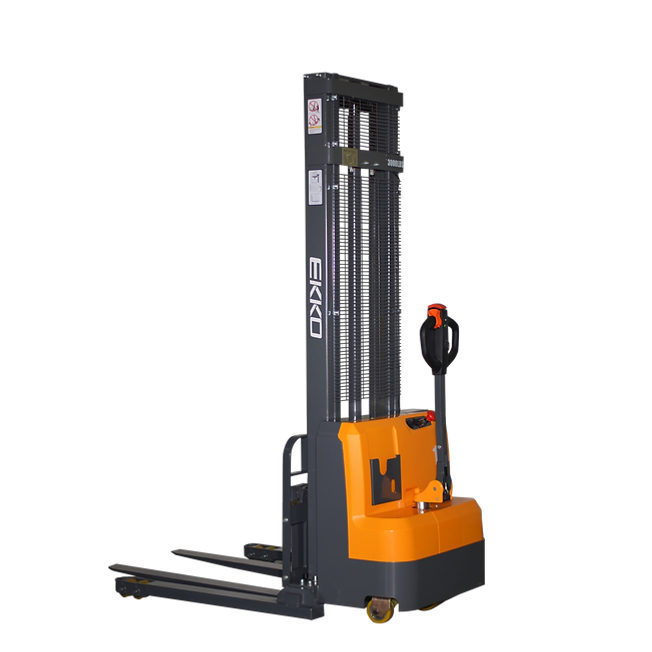

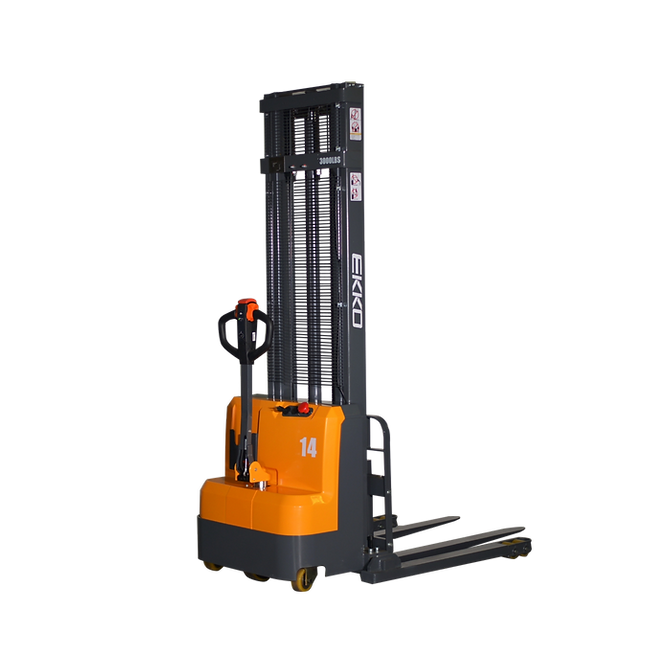

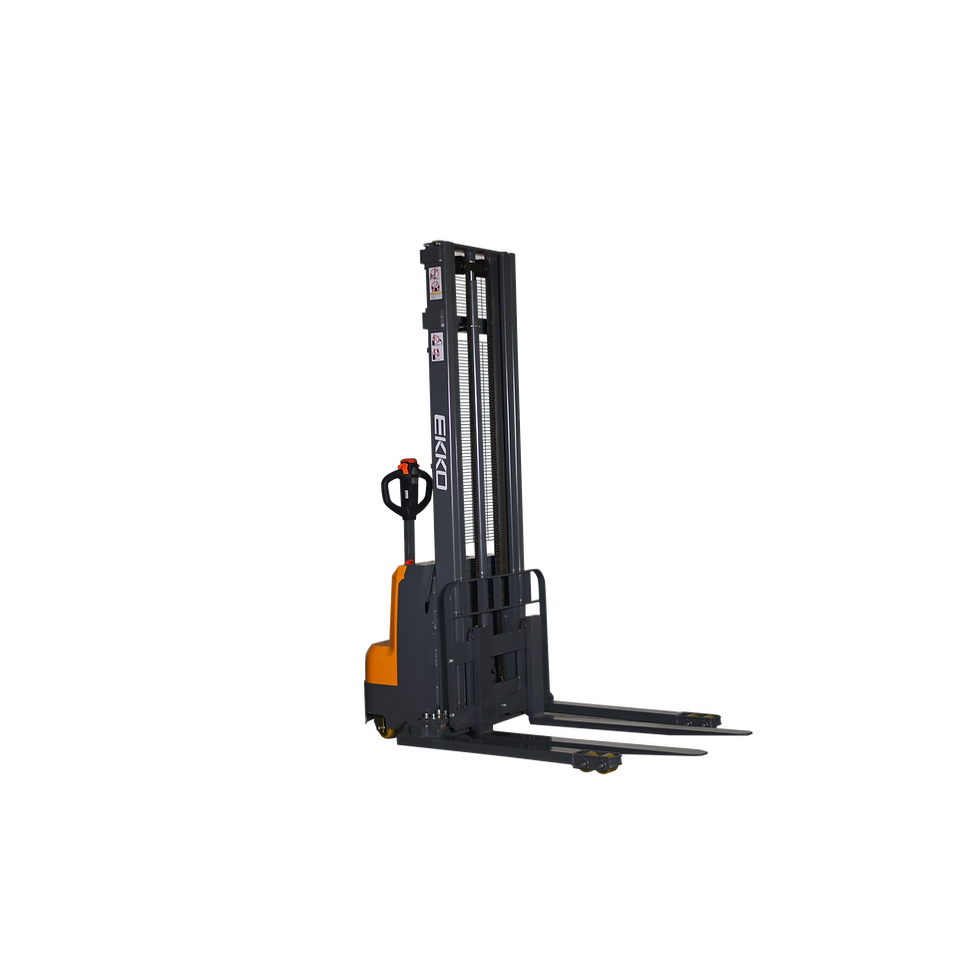

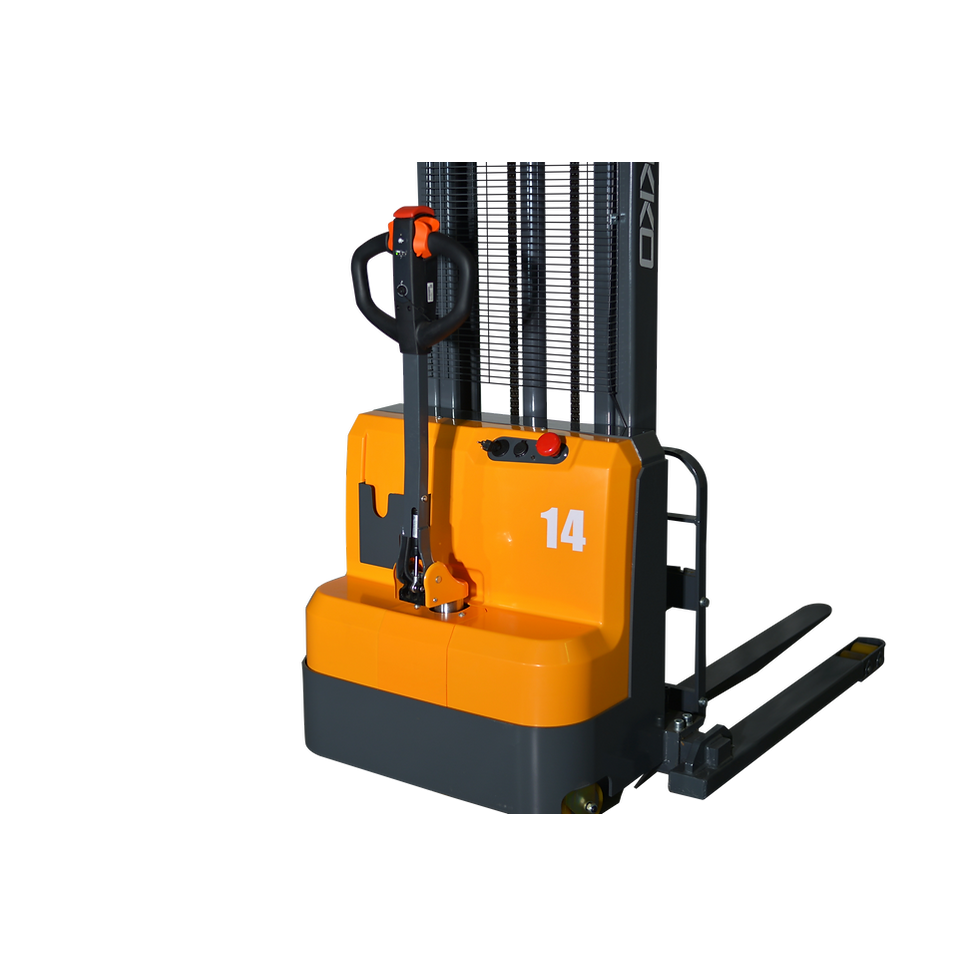

EKKO Electric Straddle Stacker | 138" Lift Height | 3000 lb Capacity | EB14C-138
Product Description
Our Price: $5,593.60 – Guaranteed Lowest Price for the EKKO EB14C-138, with free nationwide shipping.
The EKKO EB14C-138 Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 3000 lb
- Raised Height 138” (11.5 ft.)
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/85Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
Specifications
|
Model |
|
EB14C-138 |
|
Load capacity |
(lbs) |
3000 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
20 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Fork Adjustment Width |
(in) |
8.7-32.1 |
|
Lowered fork height |
(in) |
2.6 |
|
Adjustable legs |
(in) |
35.4-51.2 |
|
Turning radius |
(in) |
57.5 |
|
Overall length |
(in) |
73.7 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
166.9 |
|
Lowered mast height |
(in) |
94.2 |
|
Battery voltage |
(V/Ah) |
24V/85Ah |
|
Internal Charger |
V/A |
24V/10 |
|
Lifting Motor |
Kw |
2.2 kw |
|
Driving Motor |
|
DC Drive Motor |
|
Service Weight |
(lbs) |
1780 |
