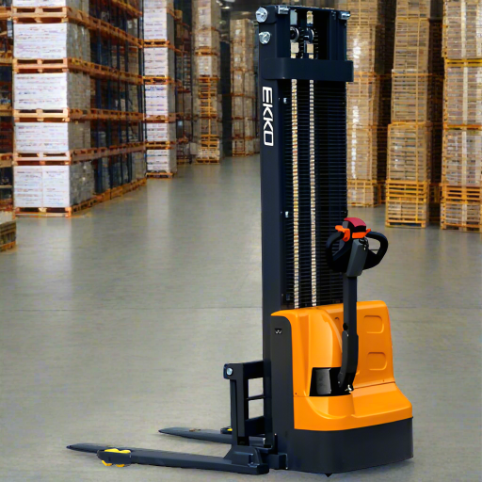

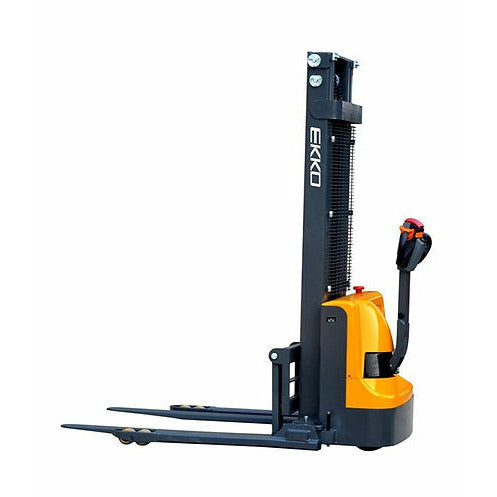

The EKKO EB12E-138 is a fully powered electric straddle stacker that combines the functionality of a forklift, reach truck, and walkie stacker in a single unit, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 2,640 lb. capacity lift to 138 inches. Outrigger legs adjust from 45.5 to 59.1 inches wide to straddle standard pallets, while forks adjust from 8.3 to 33.5 inches overall width and extend 45.3 inches for versatile load handling across varied pallet configurations. Powered by a 0.75 kW 24V drive motor and 2.2 kW 24V lift motor with a Curtis controller, it travels at 4.0 km/h loaded and achieves a 52.6 in. turning radius for standard aisle operation. Battery and internal charger are included standard with a 3-year limited warranty.

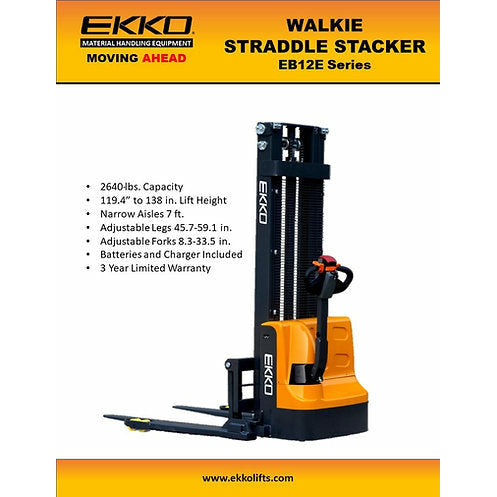

- 2,640 lb. Capacity with 138 in. Maximum Lift Height - Rated for 2,640 lbs at a 24 in. load center with a maximum lift height of 138 in., a lowered mast height of 92 in., and a lowered fork height of 2.35 in. for floor-level pallet access
- Adjustable Outrigger Legs and Forks for Pallet Flexibility - Legs adjust from 45.5 to 59.1 in. to straddle standard pallets on the floor, with forks adjustable from 8.3 to 33.5 in. overall width and 45.3 in. fork length for a wide range of pallet sizes
- 0.75 kW Drive Motor and 2.2 kW Lift Motor with Curtis Controller - Equipped with a 24V / 0.75 kW drive motor at 4.0 km/h loaded and 4.2 km/h unloaded, and a 24V / 2.2 kW lift motor with lifting speed of 92 mm/s laden and 136 mm/s unladen

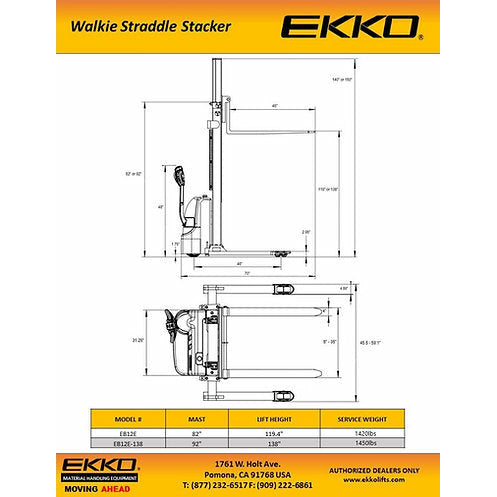

- Compact 52.6 in. Turning Radius with 70 in. Overall Length - At 70 in. overall length, 61 in. maximum overall width, and a 52.6 in. turning radius, the EB12E-138 is designed for maneuvering in standard warehouse aisles while accommodating wide pallet configurations
- 2×12V / 100Ah Battery and Internal 24V / 15A Charger Included - Ships with dual 12V / 100Ah batteries wired to 24V and an internal 24V / 15A charger at no additional cost, with a service weight of 1,450 lbs and a robotically welded steel frame

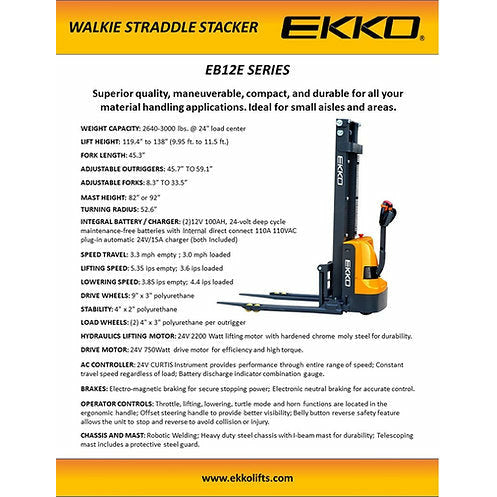

Product Specifications:
| Model Number | EB12E-138 |
| Product Type | Fully Powered Electric Straddle Stacker |
| Load Capacity | 2,640 lbs |
| Load Center | 24 in. |
| Lift Height | 138 in. |
| Lowered Fork Height | 2.35 in. |
| Mast Overall Height (Lowered) | 92 in. |
| Extended Mast Height | 154 in. |
| Overall Length | 70 in. |
| Max Overall Width | 61 in. |
| Turning Radius | 52.6 in. |
| Service Weight | 1,450 lbs |
| Fork Length | 45.3 in. |
| Single Fork Width | 4 in. |
| Fork Adjust Width (Overall) | 8.3 in. – 33.5 in. |
| Fixed Leg Length | 36.5 in. |
| Adjustable Leg Width | 45.5 in. – 59.1 in. |
| Max Travel Speed (Laden / Unladen) | 4.0 km/h / 4.2 km/h |
| Lifting Speed (Laden / Unladen) | 92 mm/s / 136 mm/s |
| Lowering Speed (Laden / Unladen) | 112 mm/s / 98 mm/s |
| Power Type | Electric |
| Battery | 2×12V / 100Ah (Included) |
| Internal Charger | 24V / 15A (Included) |
| Drive Motor | 24V / 0.75 kW |
| Lift Motor | 24V / 2.2 kW |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
