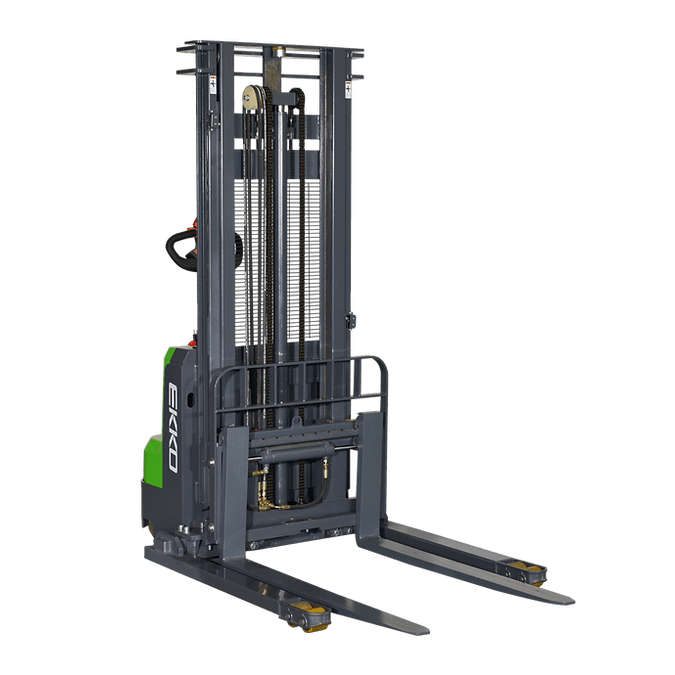

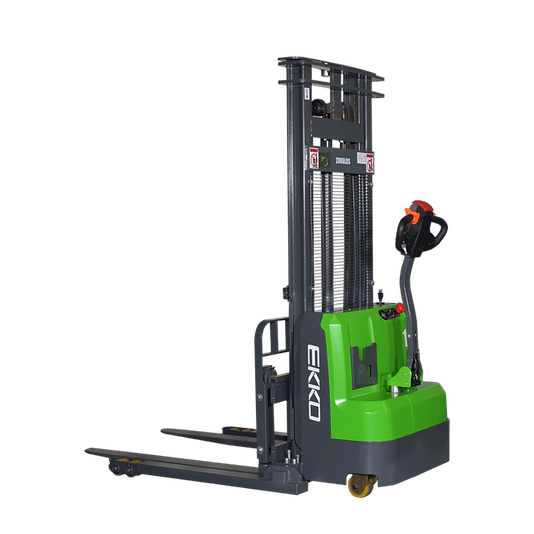

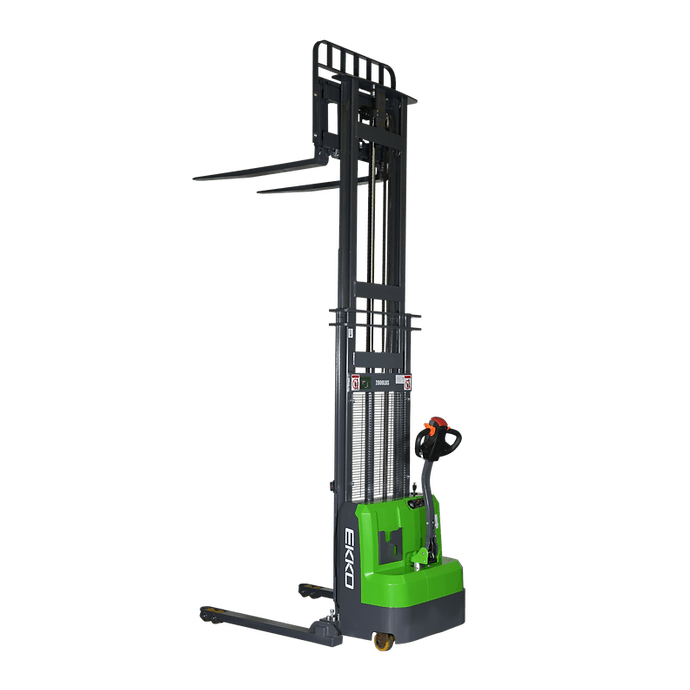

The EKKO EB14CS-145Li Electric Straddle Stacker gives the combination of a forklift, reach truck, and walkie stacker, providing great versatility for many industrial platforms. Designed for loading and unloading trucks, managing stockrooms, and operating on manufacturing floors or in warehouses. With a raised height of 145 inches (12.08 ft) and side shift functionality.
- Load Capacity 3000 lb
- Raised Height 145” (12.08 ft.)
- Side Shift
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Dual Damping Drive System
- Steel Construction
Specifications
| Model: | EB14CS-145Li |
| Load Capacity: | 3,000 lbs |
| Max Lifting Height: | 145” (12.08 ft) |
| Fork Length: | 45.3” |
| Fork Adjustment Width: | 8.7” – 32.1” |
| Leg Adjustment Width: | 35.4” – 51.2” |
| Turning Radius: | 60.8” |
| Overall Length: | 73.7” |
| Overall Width: | 61” |
| Lowered Fork Height: | 2.6” |
| Battery: | 24V/50Ah Lithium |
| Service Weight: | 1,800 lbs |
| Charger: | 24V/20A Internal Charger |
| Lifting Motor: | 2.2 kW |
| Driving Motor: | DC Drive Motor |
| Extended Mast Height: | 174.8” |
| Lowered Mast Height: | 95.5” |
