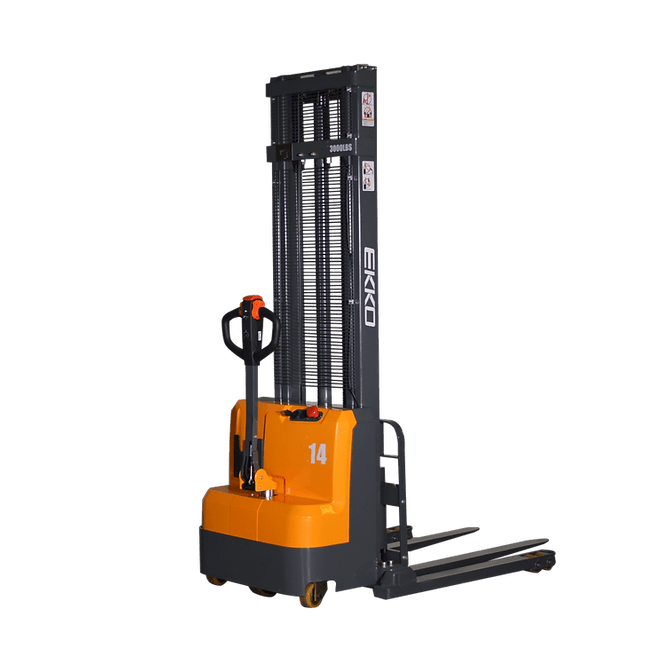

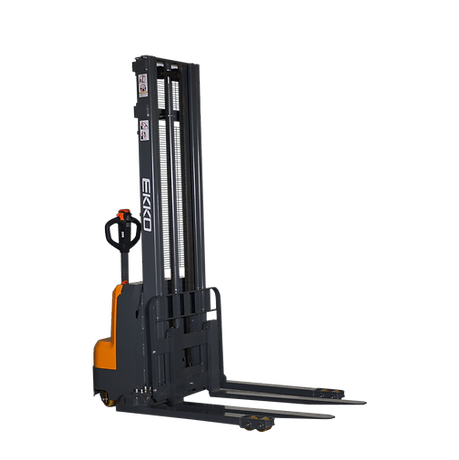

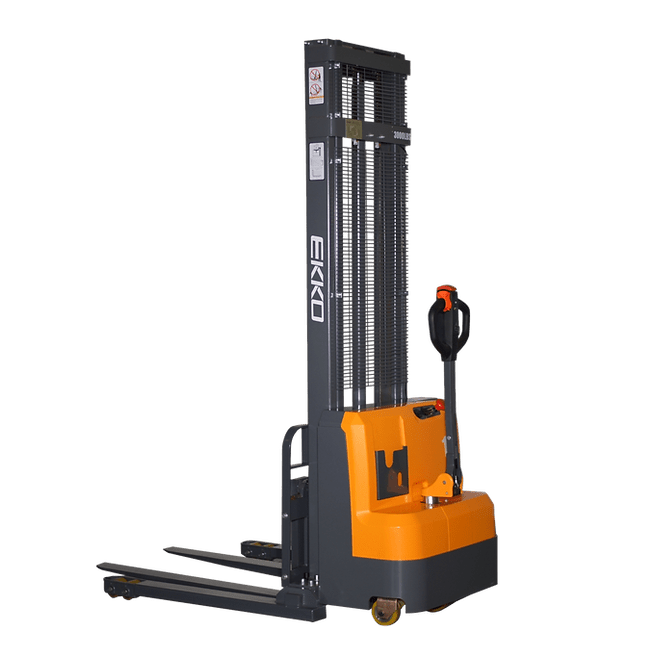

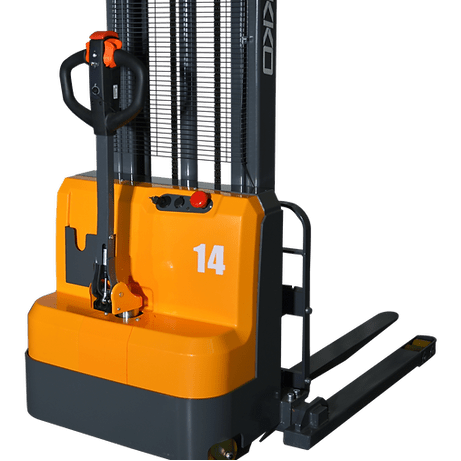

The EKKO EB14C-118 Electric Straddle Stacker gives the combination of a forklift, reach truck, and walkie stacker, offering versatility for material handling tasks. Great for use in stock rooms, loading docks, manufacturing floors, and warehouses.
- Load Capacity: 3,000 lbs
- Maximum Lifting Height: 118" (9.83 ft)
- Adjustable Forks: 8.7-32.1"
- Adjustable Legs: 35.4-51.2"
- Fork Length: 45.3"
- Curtis Instrument Controller: Advanced control and precision
- Motors: DC Drive Motor and 2.2 kW Lifting Motor
- Battery: 24V/85Ah with Internal Charger (24V/10A)
- Polyurethane Wheels: Smooth and quiet operation
- Steel Construction: Durable and built to last
- Ergonomic Handle and Controls: Easy and comfortable operation
Specifications
| Model: | EB14C-118 |
| Load Capacity: | 3,000 lbs |
| Maximum Lifting Height: | 118" |
| Load Center Distance: | 20" |
| Fork Length: | 45.3" |
| Single Fork Width: | 4" |
| Fork Adjustment Width: | 8.7-32.1" |
| Lowered Fork Height: | 2.6" |
| Adjustable Legs: | 35.4-51.2" |
| Turning Radius: | 57.5" |
| Overall Length: | 73.7" |
| Maximum Overall Width: | 61" |
| Extended Mast Height: | 146.5" |
| Lowered Mast Height: | 85" |
| Battery Voltage: | 24V/85Ah |
| Internal Charger: | 24V/10A |
| Lifting Motor: | 2.2 kW |
| Service Weight: | 1,520 lbs |
Why Buy the EKKO EB14C-118?
The EKKO EB14C-118 is Great for material handling needs. Built with quality components and designed for longevity, it's a smart investment that will keep your operations running smoothly. It's about peace of mind and consistent performance.
