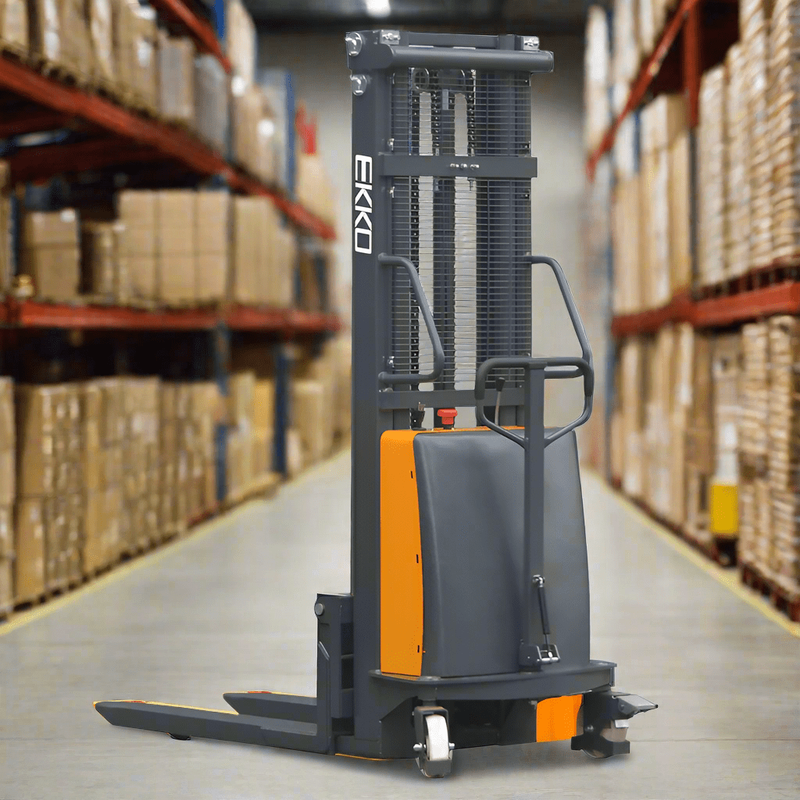

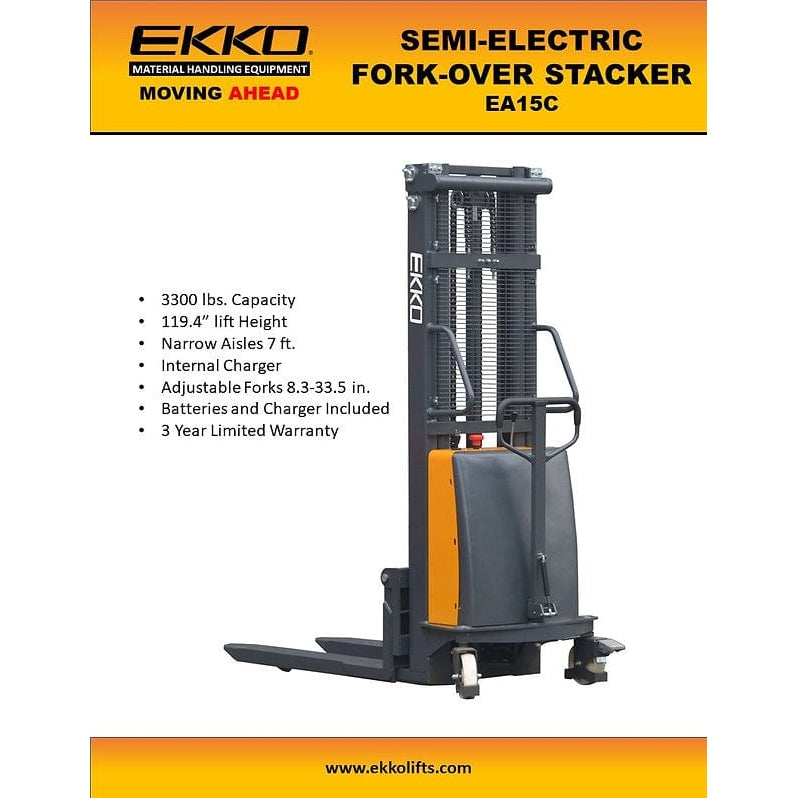

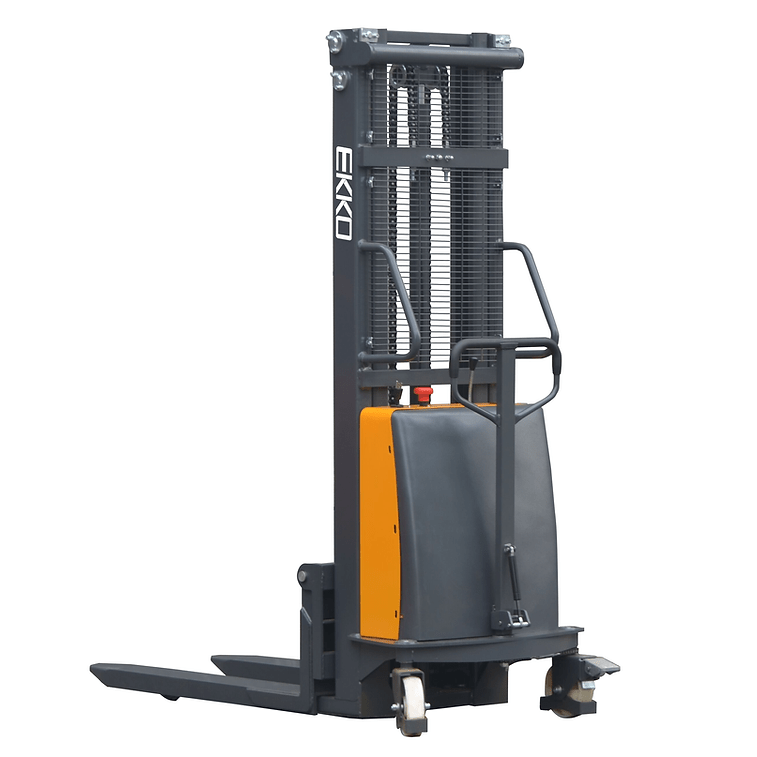

The EKKO EA15C Semi-Electric Straddle Stacker gives the combination of both a forklift and pallet stacker in one machine. This makes it an excellent choice for a variety of tasks, including truck loading, dock work, stockroom organization, and warehouse operations.
Built for performance, this machine features a durable steel frame and high quality components. It's designed to handle any terrain, withstand continuous use, absorb impacts, and adapt to directional changes.
- Load Capacity 3300lbs.
- Raised Height 119.3" (9.95ft)
- Fork Length 45.3"
- Power Lifting
- Manual Drive
- Adjustable Forks
- Internal Charger 12V/20A Included
- Battery 12V 120Ah Included
- Ergonomic Handle
- Steel Construction
- Robotic Welding
- 3 Years Limited Warranty

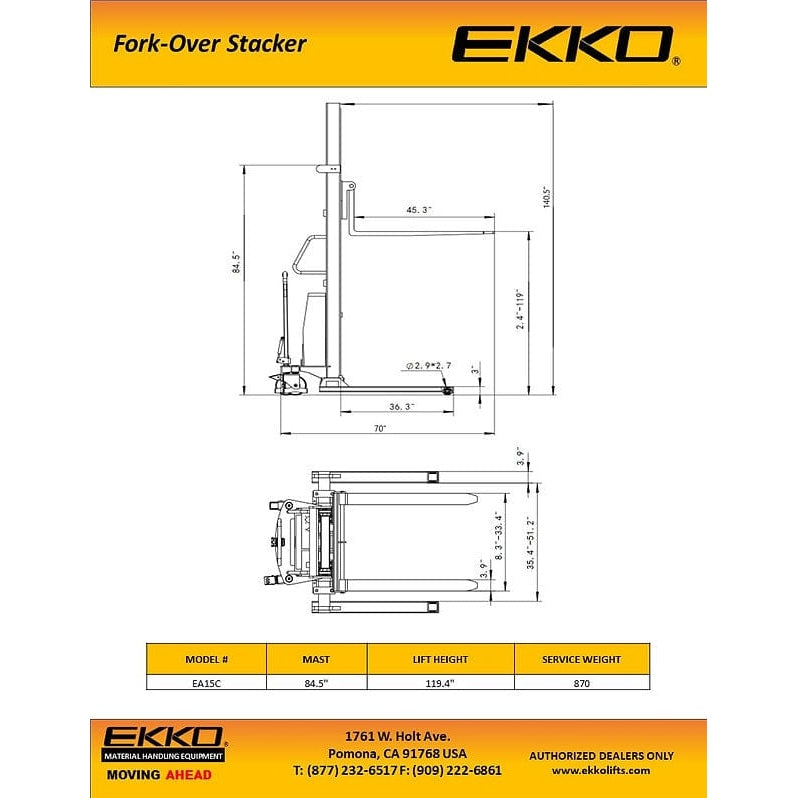

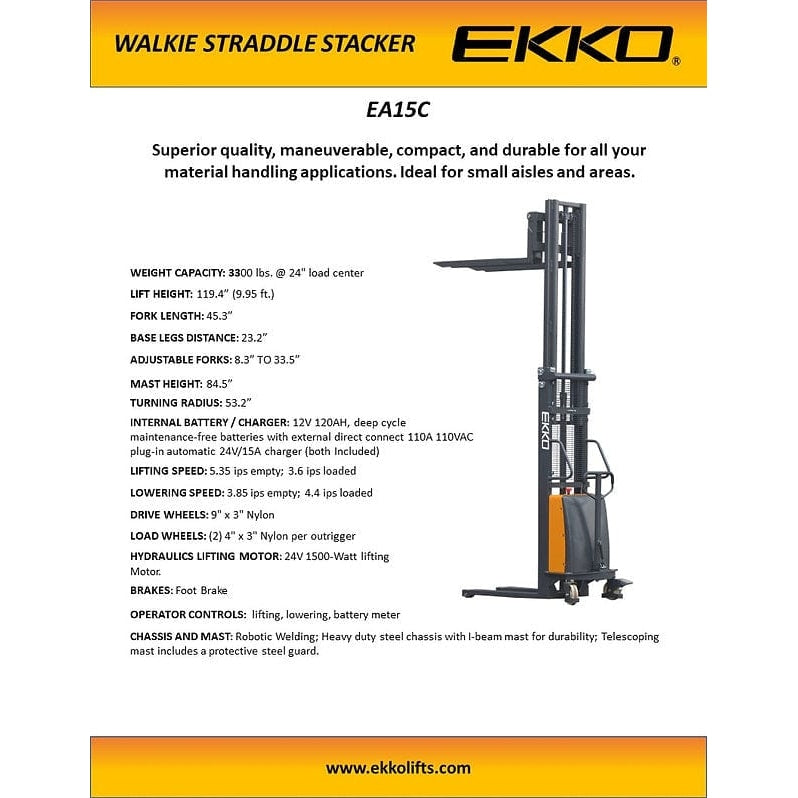

Specifications
|
Model |
|
EA15C |
|
Load Capacity |
(lb) |
3300 |
|
Lifting height Max. |
(in) |
119.4 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
5.9 |
|
Overall fork width |
(in) |
24.5 |
|
Lowered fork height |
(in) |
2.4 |
|
Fixed leg length |
(in) |
45.3 |
|
Fixed leg width, single |
(in) |
5.9 |
|
Width between legs |
(in) |
12.75 |
|
Turning radius |
(in) |
53.2 |
|
Overall length |
(in) |
73 |
|
Overall width max |
(in) |
59 |
|
Extended mast height |
(in) |
140.5 |
|
Lowered mast height |
(in) |
81.8 |
|
Battery Voltage |
(V/Ah) |
12V/120Ah |
|
Charger |
(V/A) |
12V/20A |
|
Lift Motor |
(V/W) |
DC 12V/1500W |
|
Service Weight |
(lb) |
870 |
