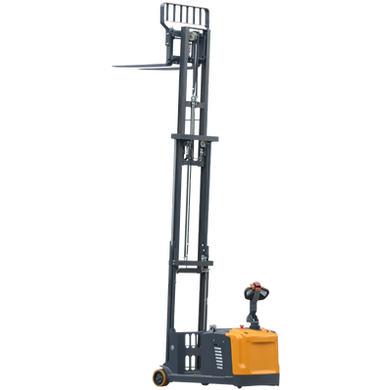

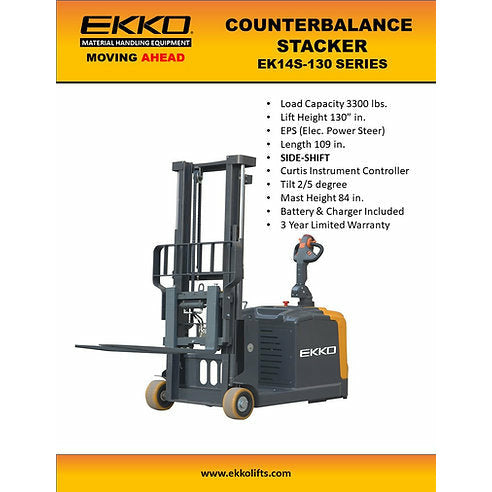

The EKKO EK14S-130 is a fully powered counterbalanced walkie stacker with integrated side-shifting forks, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with 3,300 lb. capacity, 130-inch lift height, and lateral load positioning without repositioning the truck. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from ground-level racking with restricted clearance that straddle-leg stackers cannot access, while the side-shifting carriage adds precision load placement capability within the same footprint. Powered by a 24V / 210Ah battery with a 24V AC 2,500W drive motor, 24V 2,500W lift motor, Curtis controller, and Electronic Power Steering, it operates with a 57 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, charger, and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 84 in. for low-clearance aisle and door entry
- Side-Shifting Forks Standard with Adjustable Width - Integrated side-shifting fork carriage provides lateral load adjustment without repositioning the truck, with forks adjustable from 8.6 to 28.3 in. O.D. and 2°/5° forward/backward tilt
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing pallet retrieval from low-clearance racking and floor-level positions where standard straddle stackers cannot operate
- Dual 24V AC 2,500W Drive and Lift Motors with EPS - Equipped with a 24V / 2,500W AC drive motor, 24V / 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller for responsive, fully powered operation with smooth directional control
- 24V / 210Ah Battery and 24V / 30A Charger Included - Ships with a 24V / 210Ah lead acid battery and 24V / 30A charger at no additional cost, with a service weight of 3,840 lbs and a 57 in. turning radius for standard warehouse aisle operation

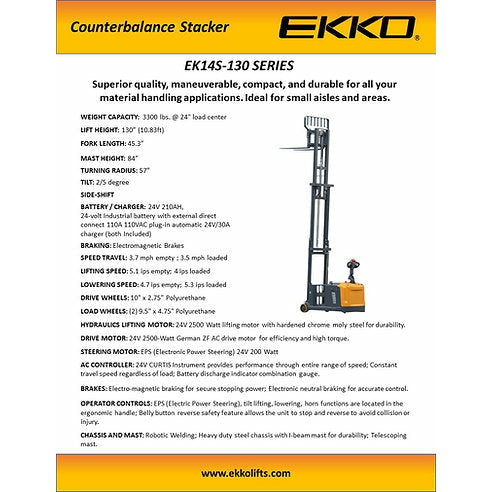

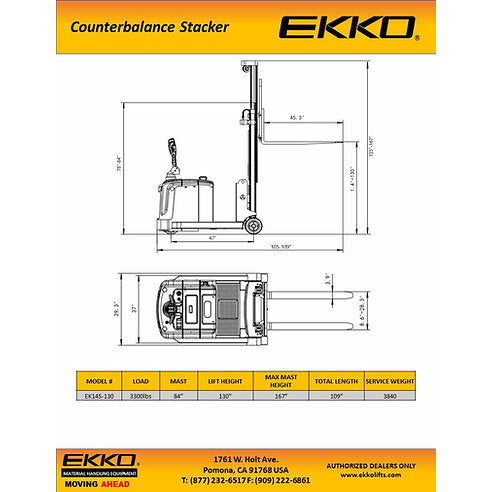

Product Specifications:
| Model Number | EK14S-130 |
| Product Type | Fully Powered Counterbalanced Walkie Stacker with Side Shift |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 130 in. |
| Free Lifting Height | 4 in. |
| Mast Overall Height (Lowered) | 84 in. |
| Extended Mast Height | 167 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 109 in. |
| Overall Width | 39 in. |
| Wheelbase | 47 in. |
| Turning Radius | 57 in. |
| Service Weight | 3,840 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 45.3 in. |
| Fork Adjust Width | 8.6 in. – 28.3 in. |
| Side Shift | Standard |
| Lifting Speed (Laden / Unladen) | 4 in/s / 5.1 in/s |
| Lowering Speed (Laden / Unladen) | 5.3 in/s / 4.7 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Electric |
| Battery | 24V / 210Ah (Included) |
| Charger | 24V / 30A (Included) |
| Drive Motor | 24V / 2,500W AC |
| Lift Motor | 24V / 2,500W |
| Steering Motor | 24V / 200W EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
