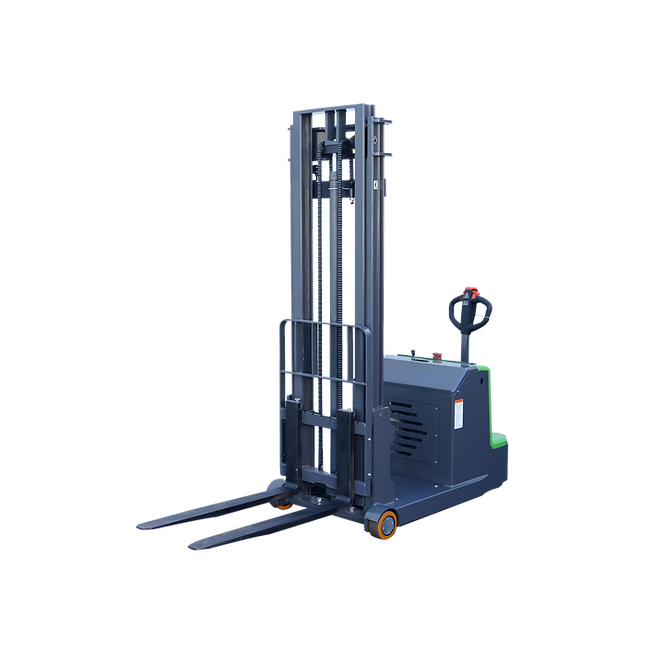

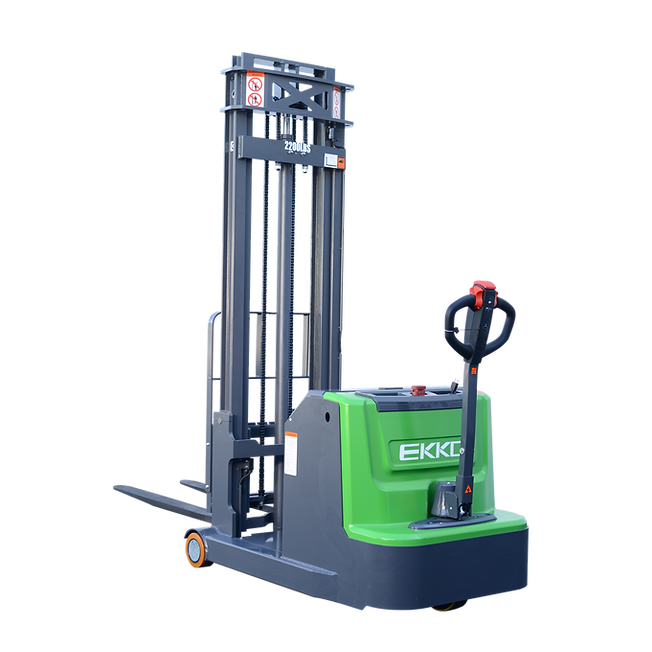

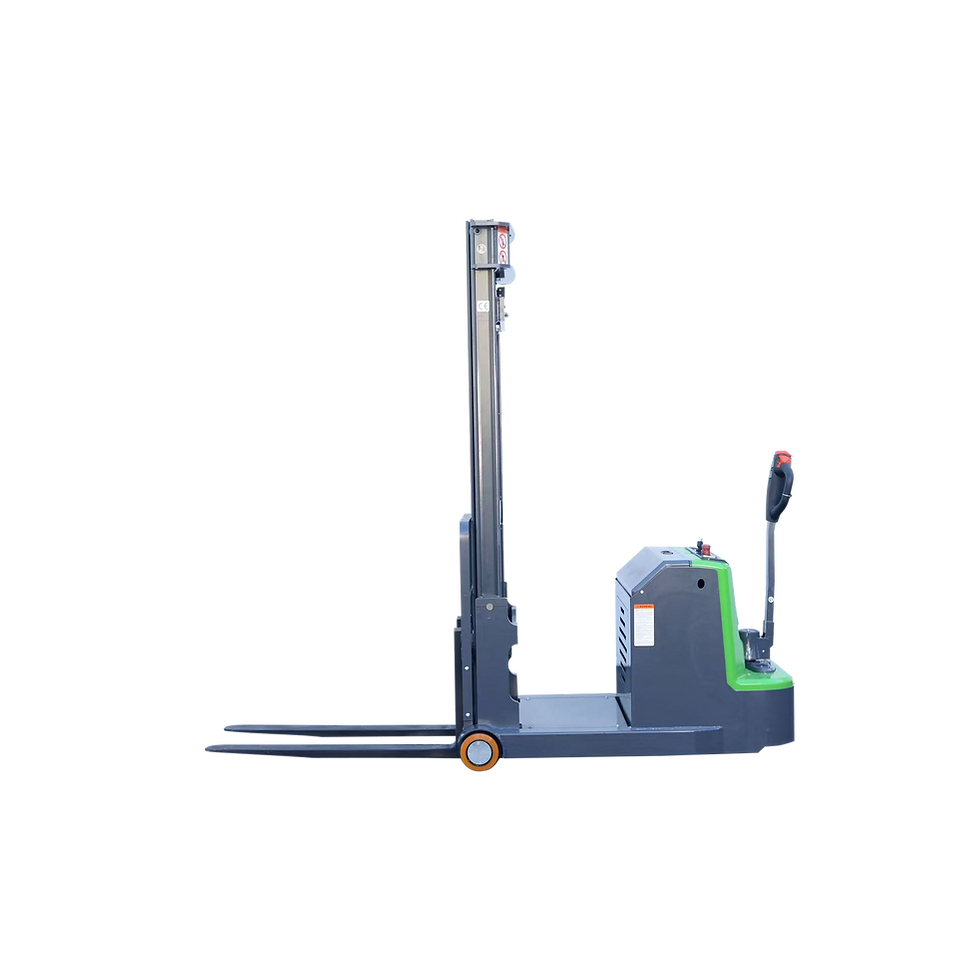

The EKKO EK10S-118LI is a lithium-powered counterbalanced walkie stacker designed for warehouses, loading docks, stock rooms, and manufacturing environments requiring pallet stacking and retrieval up to 118 inches without straddle legs or outrigger arms. Rated for 2,200 lbs at a 24-inch load center with a service weight of 3,535 lbs, the unit operates on a 24V / 100Ah lithium-ion battery with a built-in 24V / 30A charger — eliminating the need for an external charging station or a dedicated charging bay. The 53-inch turning radius, 34.5-inch overall width, and counterbalanced design allow this unit to operate in standard aisles where straddle-leg stackers cannot enter due to ground clearance or aisle width constraints. Battery, built-in charger, and a 3-year limited warranty are included standard.
- 2,200 lb. Capacity with 118 in. Lift Height - Rated for 2,200 lbs at a 24 in. load center with a maximum lift height of 118 in., a lowered mast height of 79.53 in., and a lowered fork height of 2.36 in. for low-clearance entry
- 24V / 100Ah Lithium-Ion Battery with Built-In Charger - Powered by a 24V / 100Ah lithium-ion battery with an onboard 24V / 30A charger, allowing opportunity charging without a dedicated external charger or stationary charging station
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing the unit to pick and place standard pallets on the floor or from racking without leg clearance restrictions
- Compact 53 in. Turning Radius with 34.5 in. Width - At 34.5 in. overall width, 99 in. overall length, and a 53 in. turning radius, the EK10S-118LI operates in standard warehouse aisles and tight storage environments
- 0.9 kW Drive Motor and 2.2 kW Lift Motor - Equipped with a 0.9 kW DC drive motor and 2.2 kW lift motor rated at S3 10% duty cycle, with polyurethane tires and forks measuring 1.4 in. x 3.9 in. x 42.1 in.
Product Specifications:
| Model Number | EK10S-118LI |
| Product Type | Lithium-Powered Counterbalanced Walkie Stacker |
| Load Capacity | 2,200 lbs |
| Load Center | 24 in. |
| Lift Height | 118 in. |
| Mast Overall Height (Lowered) | 79.53 in. |
| Mast Extended Height | 137.48 in. |
| Lowered Fork Height | 2.36 in. |
| Overall Length | 99 in. |
| Overall Width | 34.5 in. |
| Turning Radius | 53 in. |
| Service Weight | 3,535 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 3.9 in. x 42.1 in. |
| Power Type | Lithium-Ion Electric |
| Battery | 24V / 100Ah Lithium-Ion (Included) |
| Charger | 24V / 30A Built-In (Included) |
| Drive Motor | 0.9 kW |
| Lift Motor | 2.2 kW (S3 10% Duty Cycle) |
| Drive Control Type | DC Speed Control |
| Tire Type | Polyurethane |
| Construction | Steel |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
