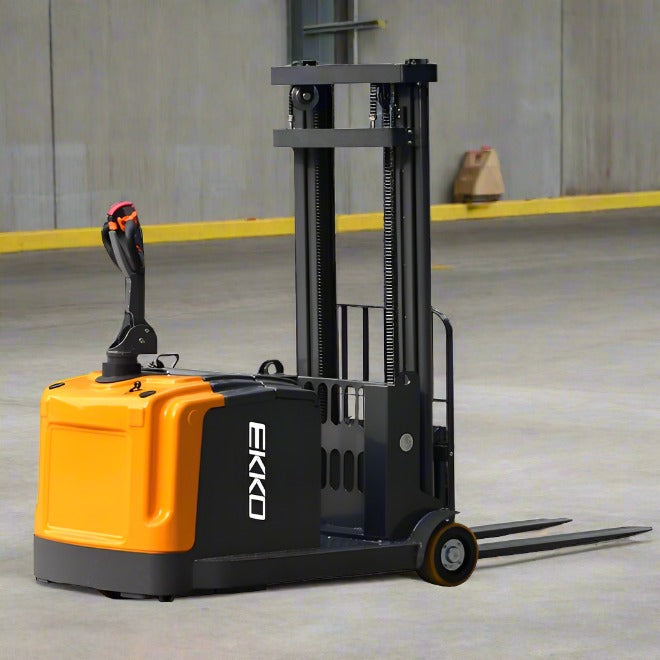

The EKKO EK14-138 is a fully powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with a 3,300 lb. capacity and 138-inch maximum lift height. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from ground-level racking with restricted clearance that straddle-leg stackers cannot access, with the 138 in. lift height extending vertical reach 8 inches beyond the EK14-130 variant. Powered by a 24V / 210Ah battery with a 24V AC 2,500W drive motor, 24V 3,000W lift motor, Curtis controller, and Electronic Power Steering, it delivers fully powered drive and lift with a 62 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Charger and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 138 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 138 in., a free lift of 4 in., and a lowered mast height of 90 in. for aisle and door entry clearance
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing pallet retrieval from low-clearance racking and floor-level positions inaccessible to standard straddle stackers
- 24V AC 2,500W Drive and 3,000W Lift Motor with EPS - Equipped with a 24V / 2,500W AC drive motor, 24V / 3,000W lift motor, 24V / 200W EPS steering motor, and Curtis controller for responsive, fully powered operation at the 138 in. lift range
- Adjustable Tilting Forks with 62 in. Turning Radius - Forks measure 1.4 in. x 4 in. x 37 in. and adjust from 8.7 to 28 in. O.D. with 2°/5° forward/backward tilt, and the 62 in. turning radius supports operation in standard warehouse aisles
- 24V / 210Ah Battery and 24V / 30A Charger Included - Ships with a 24V / 210Ah lead acid battery and 24V / 30A charger at no additional cost, with a service weight of 3,880 lbs and a robotically welded steel frame backed by a 3-year limited warranty
Product Specifications:
| Model Number | EK14-138 |
| Product Type | Fully Powered Counterbalanced Walkie Stacker |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 138 in. |
| Free Lifting Height | 4 in. |
| Mast Overall Height (Lowered) | 90 in. |
| Extended Mast Height | 155 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 105 in. |
| Overall Width | 39 in. |
| Wheelbase | 47 in. |
| Turning Radius | 62 in. |
| Service Weight | 3,880 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 37 in. |
| Fork Adjust Width | 8.7 in. – 28 in. |
| Lifting Speed (Laden / Unladen) | 4 in/s / 5.5 in/s |
| Lowering Speed (Laden / Unladen) | 5.3 in/s / 4.7 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Electric |
| Battery | 24V / 210Ah (Included) |
| Charger | 24V / 30A (Included) |
| Drive Motor | 24V / 2,500W AC |
| Lift Motor | 24V / 3,000W |
| Steering Motor | 24V / 200W EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
