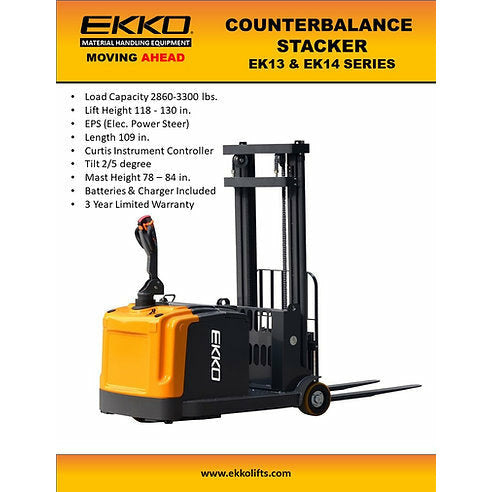

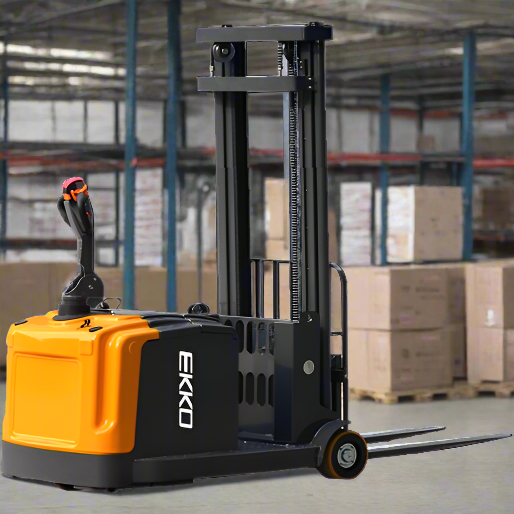

The EKKO EK14-130 is a fully powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact, no-outrigger stacking unit with a 3,300 lb. capacity and 130-inch lift height. The counterbalanced frame eliminates front support legs entirely, allowing the unit to operate in narrower aisles and pick pallets from low-clearance racking that straddle-leg stackers cannot access, with a 12-inch lift height advantage over the EK14-118 variant. Powered by a 24V / 210Ah battery with a 24V AC 2,500W drive motor, 24V 2,500W lift motor, Curtis controller, and Electronic Power Steering, it delivers fully powered drive and lift with a 57 in. turning radius and 2°/5° fork tilt for standard warehouse aisle operation. Battery, charger, and a 3-year limited warranty are included standard.
- 3,300 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,300 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 84 in. for low-clearance aisle and door entry
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing the unit to place and retrieve pallets from ground-level racking with restricted clearance where standard straddle stackers cannot operate
- Dual 24V AC 2,500W Drive and Lift Motors with EPS - Equipped with a 24V / 2,500W AC drive motor, 24V / 2,500W lift motor, 24V / 200W EPS steering motor, and Curtis controller for responsive, fully powered operation with smooth directional control
- Adjustable Tilting Forks with 57 in. Turning Radius - Forks measure 1.4 in. x 4 in. x 45.3 in. and adjust from 8.6 to 28.3 in. O.D. with 2°/5° forward/backward tilt, and the 57 in. turning radius supports standard warehouse aisle operation
- 24V / 210Ah Battery and 24V / 30A Charger Included - Ships with a 24V / 210Ah lead acid battery and 24V / 30A charger at no additional cost, with a service weight of 3,840 lbs and a robotically welded steel frame backed by a 3-year limited warranty

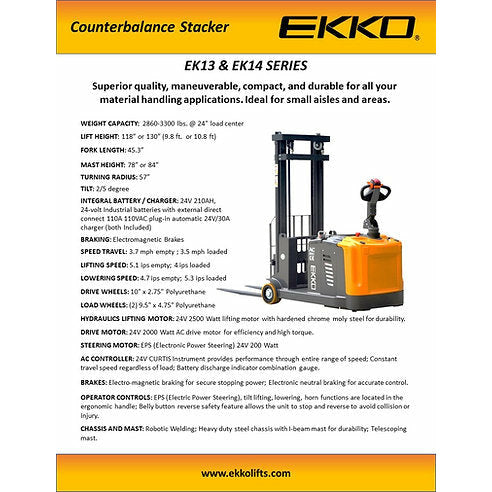

Product Specifications:
| Model Number | EK14-130 |
| Product Type | Fully Powered Counterbalanced Walkie Stacker |
| Load Capacity | 3,300 lbs |
| Load Center | 24 in. |
| Lift Height | 130 in. |
| Free Lifting Height | 4 in. |

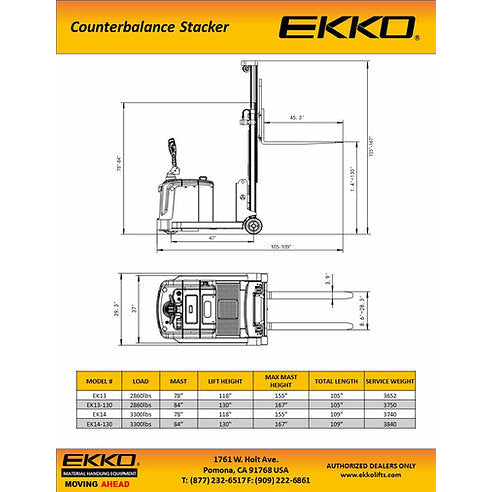

| Mast Overall Height (Lowered) | 84 in. |
| Extended Mast Height | 167 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 109 in. |
| Overall Width | 39 in. |
| Wheelbase | 47 in. |
| Turning Radius | 57 in. |
| Service Weight | 3,840 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 45.3 in. |
| Fork Adjust Width | 8.6 in. – 28.3 in. |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Electric |
| Battery | 24V / 210Ah (Included) |
| Charger | 24V / 30A (Included) |
| Drive Motor | 24V / 2,500W AC |
| Lift Motor | 24V / 2,500W |
| Steering Motor | 24V / 200W EPS |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
