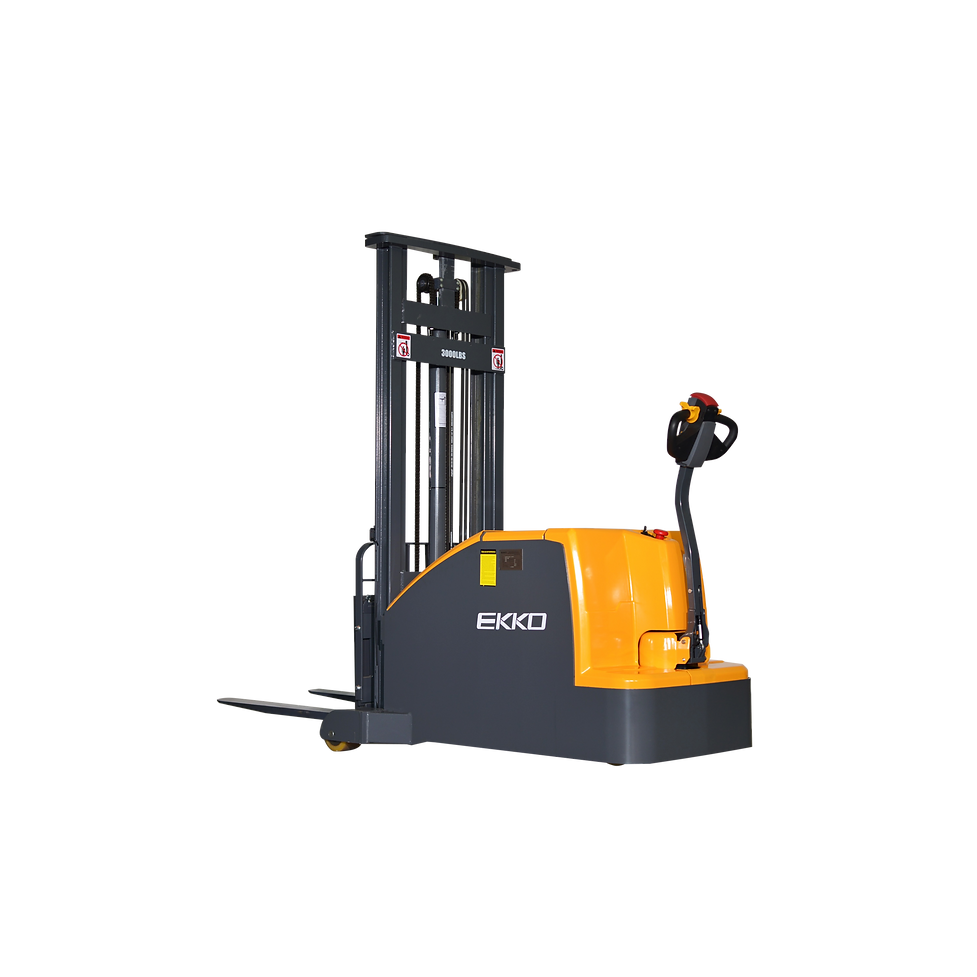

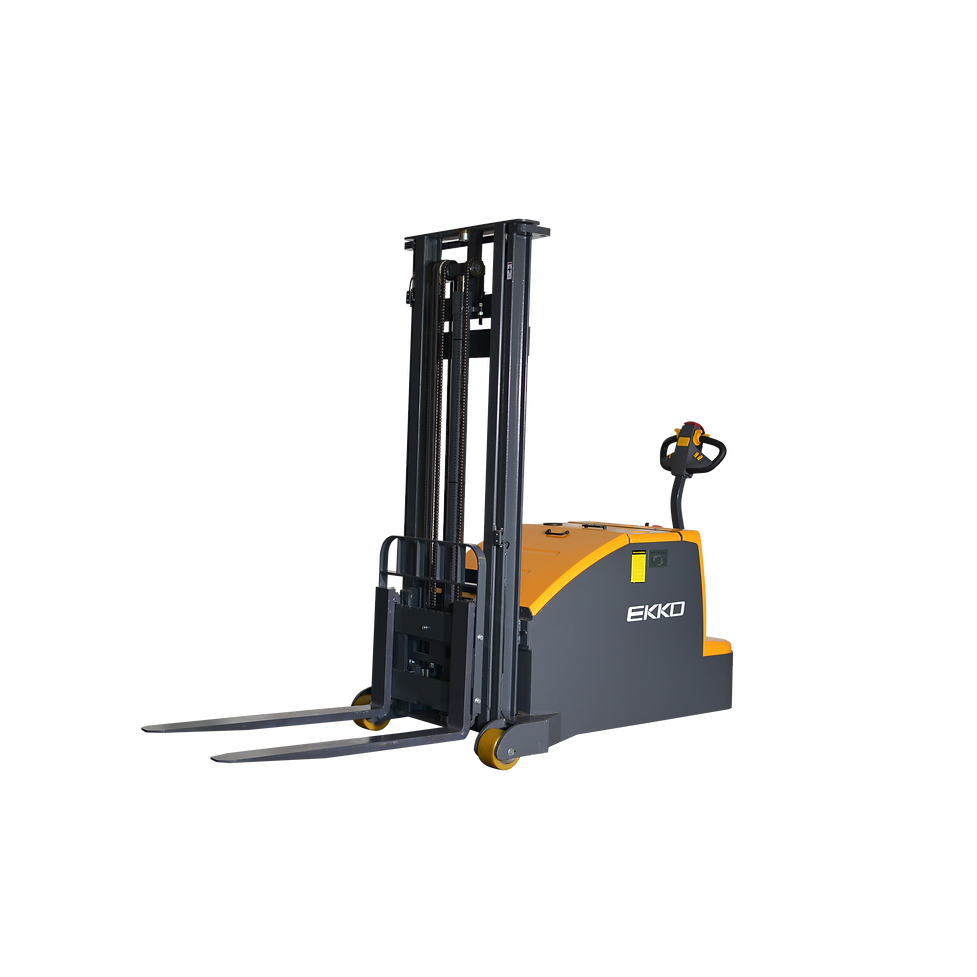

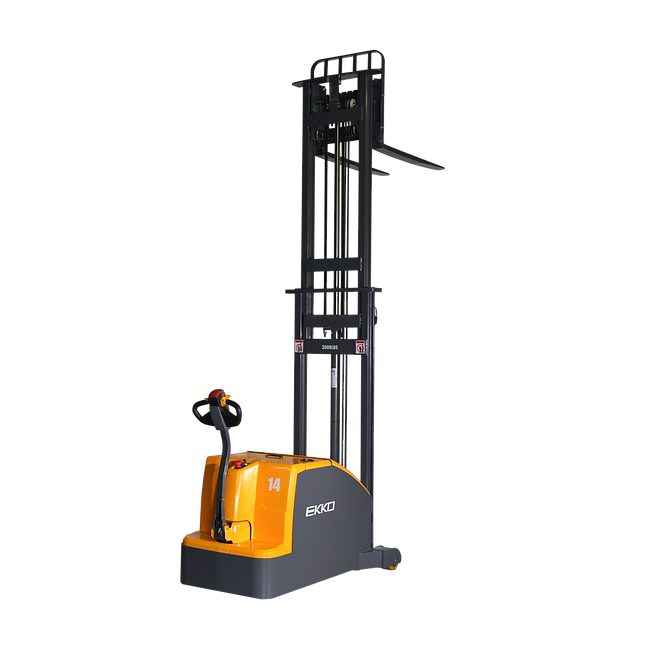

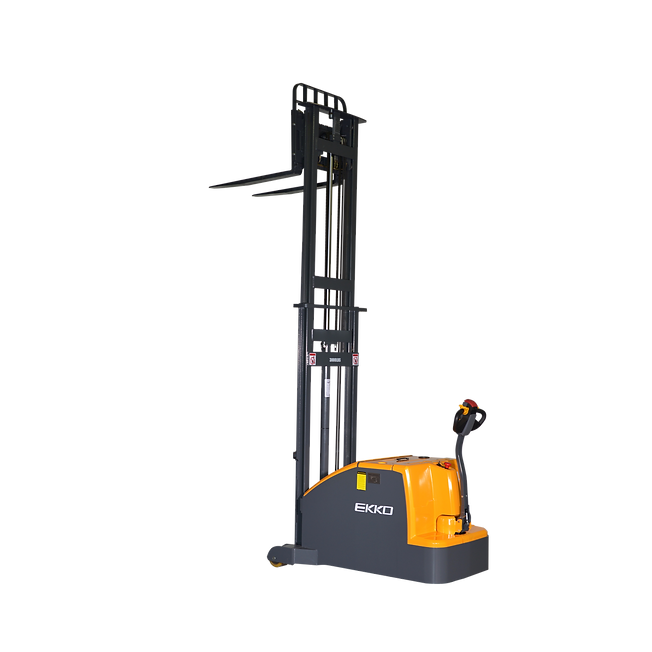

EKKO EK14C-130 Counterbalanced Walkie Stacker | 130" Lift Height | 3000 lb Capacity
The EKKO EK14C-130 is a fully powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with a 3,000 lb. capacity and 130-inch lift height. The counterbalanced frame eliminates front support legs entirely, allowing the unit to pick and place pallets from low-clearance racking and ground-level positions inaccessible to straddle-leg stackers, with a 4-inch free lift and 85.6-inch lowered mast height for door and low-clearance entry. Powered by a 24V / 210Ah battery with a 1.5 kW AC drive motor, 2.2 kW lift motor, EPS steering, and Curtis controller, the unit delivers fully powered drive and lift with a 66.3 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, 24V / 30A charger, and a 3-year limited warranty are included standard.
- 3,000 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,000 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 85.6 in. for low-clearance aisle and door entry
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing the unit to place and retrieve pallets from ground-level racking with restricted clearance where standard straddle stackers cannot operate
- 1.5 kW AC Drive and 2.2 kW Lift Motor with EPS - Equipped with a 24V / 1.5 kW AC drive motor, 24V / 2.2 kW lift motor, and Electronic Power Steering with a Curtis controller for fully powered, smooth directional control during continuous shift use
- Adjustable Tilting Forks with 66.3 in. Turning Radius - Forks measure 1.4 in. x 4 in. x 42.1 in. and adjust from 8.6 to 26 in. O.D. with 2°/5° forward/backward tilt, supported by a 66.3 in. turning radius for standard warehouse aisle operation
- 24V / 210Ah Battery and 24V / 30A Charger Included - Ships with a 24V / 210Ah lead acid battery and 24V / 30A charger at no additional cost, with a service weight of 4,230 lbs and a robotically welded steel frame backed by a 3-year limited warranty
- Model Number
- EK14C-130
- Product Type
- Fully Powered Counterbalanced Walkie Stacker
- Load Capacity
- 3,000 lbs
- Load Center
- 24 in.
- Lift Height
- 130 in.
- Free Lifting Height
- 4 in.
- Mast Overall Height (Lowered)
- 85.6 in.
- Extended Mast Height
- 158.66 in.
- Mast Tilt (Forward / Backward)
- 2° / 5°
- Overall Length
- 118 in.
- Overall Width
- 39 in.
- Wheelbase
- 44.7 in.
- Turning Radius
- 66.3 in.
- Service Weight
- 4,230 lbs
- Fork Size (Thick / Width / Length)
- 1.4 in. x 4 in. x 42.1 in.
- Fork Adjust Width
- 8.6 in. – 26 in.
- Lifting Speed (Laden / Unladen)
- 2.95 in/s / 3.94 in/s
- Max Gradeability (Laden / Unladen)
- 6% / 10%
- Power Type
- Electric
- Battery
- 24V / 210Ah (Included)
- Charger
- 24V / 30A (Included)
- Drive Motor
- 1.5 kW AC
- Lift Motor
- 2.2 kW
- Steering
- EPS (Electronic Power Steering)
- Controller
- Curtis
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
