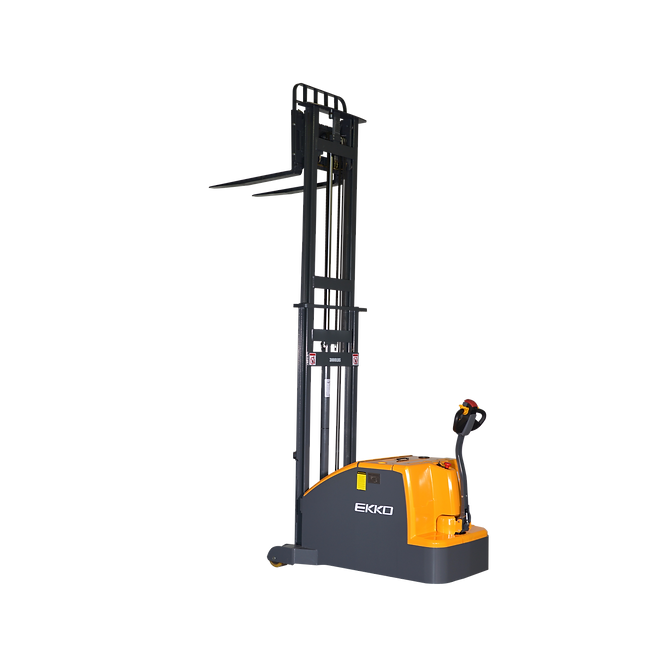

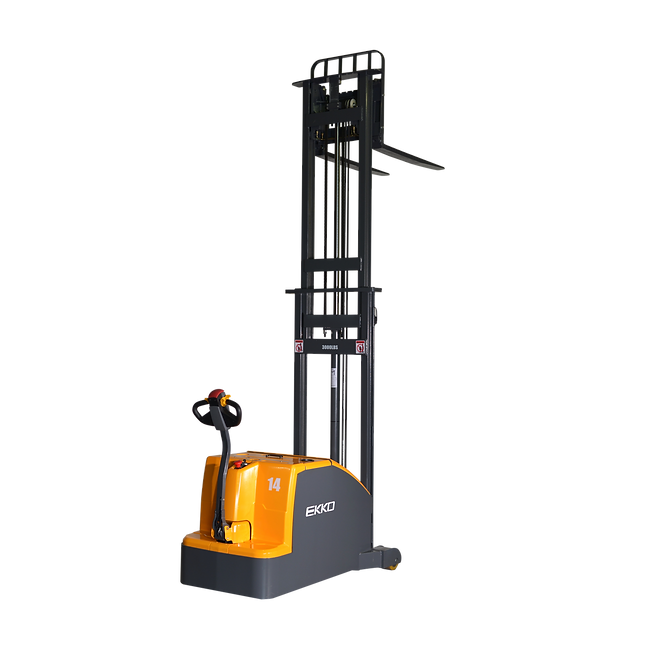

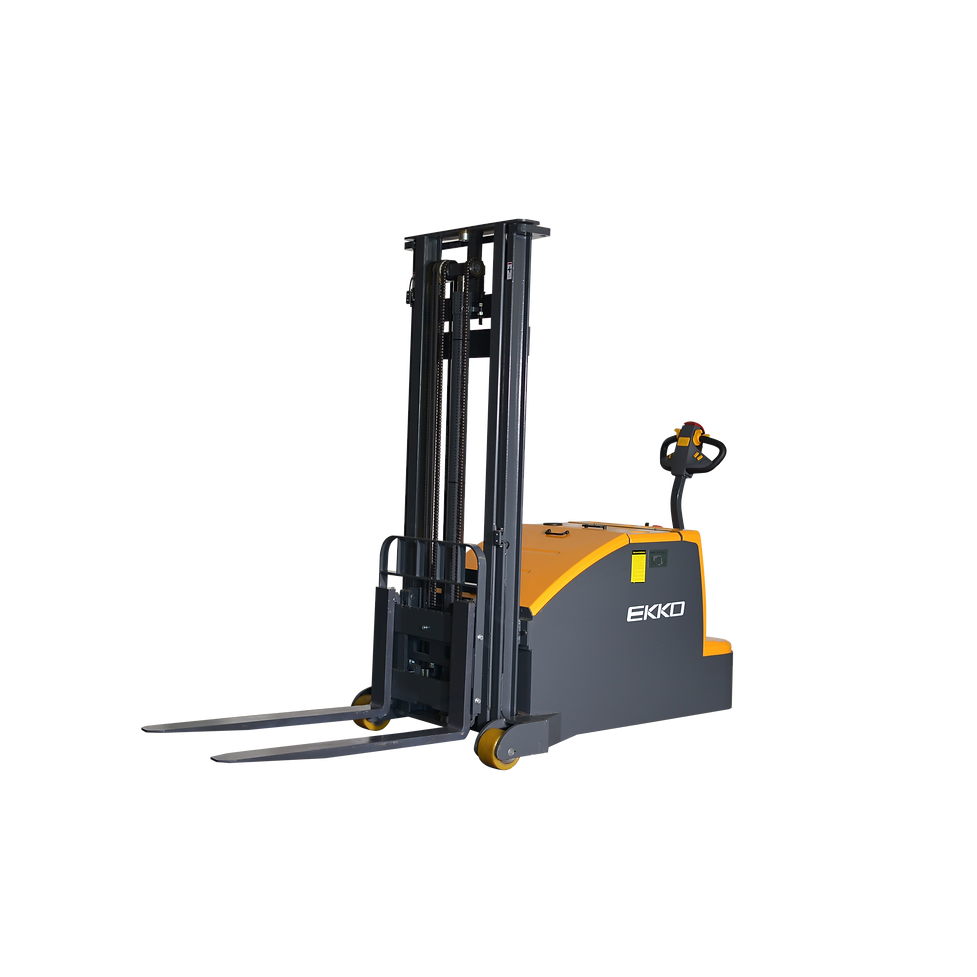

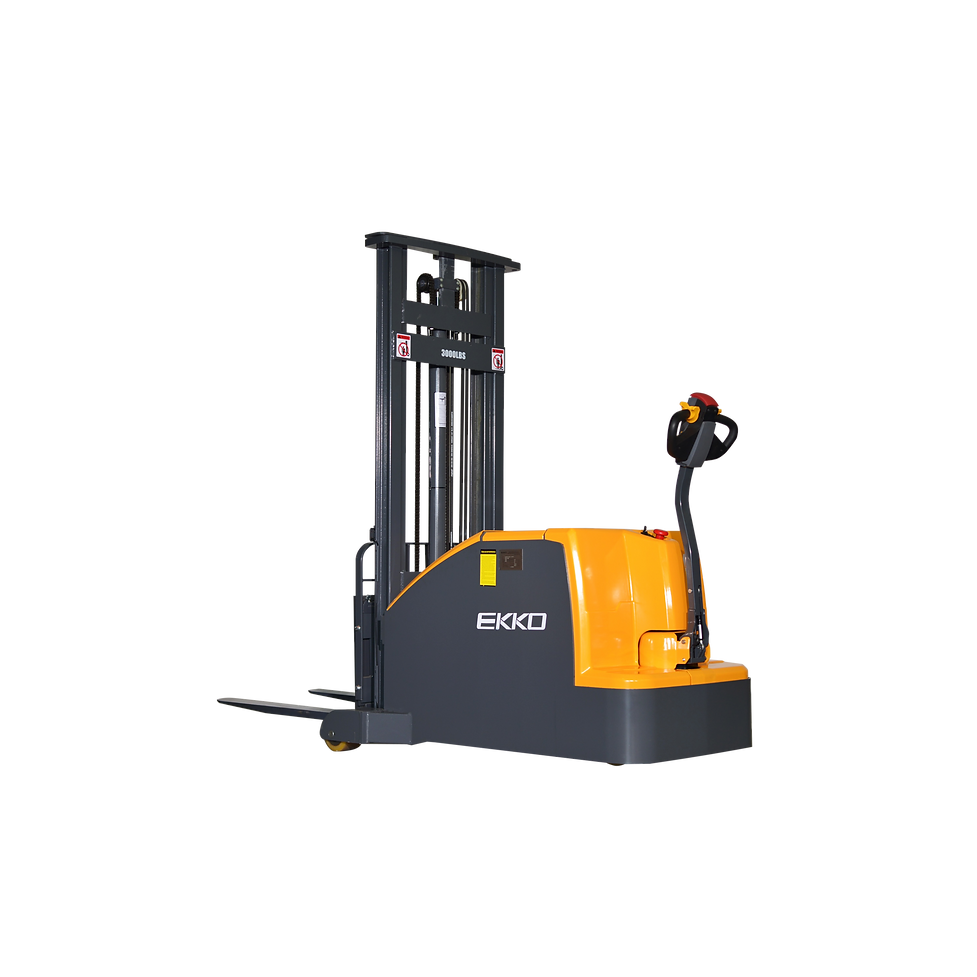

The EKKO EK14C-130 is a fully powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a compact no-outrigger stacking unit with a 3,000 lb. capacity and 130-inch lift height. The counterbalanced frame eliminates front support legs entirely, allowing the unit to pick and place pallets from low-clearance racking and ground-level positions inaccessible to straddle-leg stackers, with a 4-inch free lift and 85.6-inch lowered mast height for door and low-clearance entry. Powered by a 24V / 210Ah battery with a 1.5 kW AC drive motor, 2.2 kW lift motor, EPS steering, and Curtis controller, the unit delivers fully powered drive and lift with a 66.3 in. turning radius and 2°/5° fork tilt on a robotically welded steel frame. Battery, 24V / 30A charger, and a 3-year limited warranty are included standard.
- 3,000 lb. Capacity with 130 in. Maximum Lift Height - Rated for 3,000 lbs at a 24 in. load center with a maximum lift height of 130 in., a free lift of 4 in., and a lowered mast height of 85.6 in. for low-clearance aisle and door entry
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing the unit to place and retrieve pallets from ground-level racking with restricted clearance where standard straddle stackers cannot operate
- 1.5 kW AC Drive and 2.2 kW Lift Motor with EPS - Equipped with a 24V / 1.5 kW AC drive motor, 24V / 2.2 kW lift motor, and Electronic Power Steering with a Curtis controller for fully powered, smooth directional control during continuous shift use
- Adjustable Tilting Forks with 66.3 in. Turning Radius - Forks measure 1.4 in. x 4 in. x 42.1 in. and adjust from 8.6 to 26 in. O.D. with 2°/5° forward/backward tilt, supported by a 66.3 in. turning radius for standard warehouse aisle operation
- 24V / 210Ah Battery and 24V / 30A Charger Included - Ships with a 24V / 210Ah lead acid battery and 24V / 30A charger at no additional cost, with a service weight of 4,230 lbs and a robotically welded steel frame backed by a 3-year limited warranty
Product Specifications:
| Model Number | EK14C-130 |
| Product Type | Fully Powered Counterbalanced Walkie Stacker |
| Load Capacity | 3,000 lbs |
| Load Center | 24 in. |
| Lift Height | 130 in. |
| Free Lifting Height | 4 in. |
| Mast Overall Height (Lowered) | 85.6 in. |
| Extended Mast Height | 158.66 in. |
| Mast Tilt (Forward / Backward) | 2° / 5° |
| Overall Length | 118 in. |
| Overall Width | 39 in. |
| Wheelbase | 44.7 in. |
| Turning Radius | 66.3 in. |
| Service Weight | 4,230 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 4 in. x 42.1 in. |
| Fork Adjust Width | 8.6 in. – 26 in. |
| Lifting Speed (Laden / Unladen) | 2.95 in/s / 3.94 in/s |
| Max Gradeability (Laden / Unladen) | 6% / 10% |
| Power Type | Electric |
| Battery | 24V / 210Ah (Included) |
| Charger | 24V / 30A (Included) |
| Drive Motor | 1.5 kW AC |
| Lift Motor | 2.2 kW |
| Steering | EPS (Electronic Power Steering) |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
