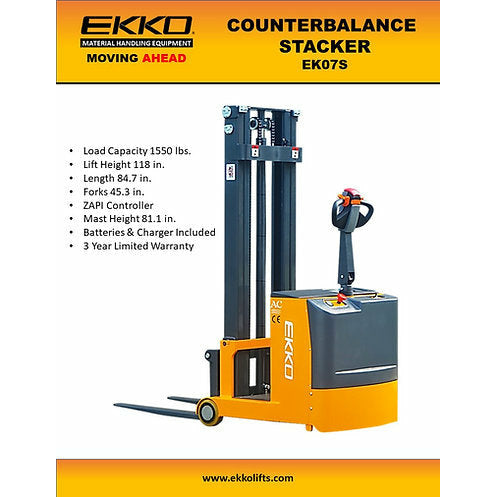

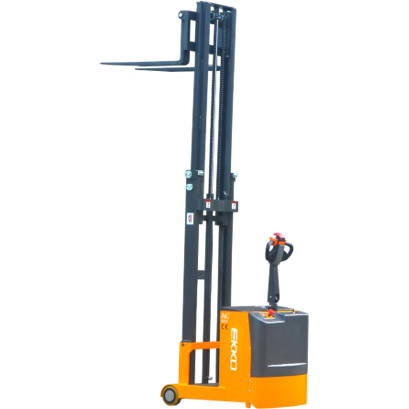

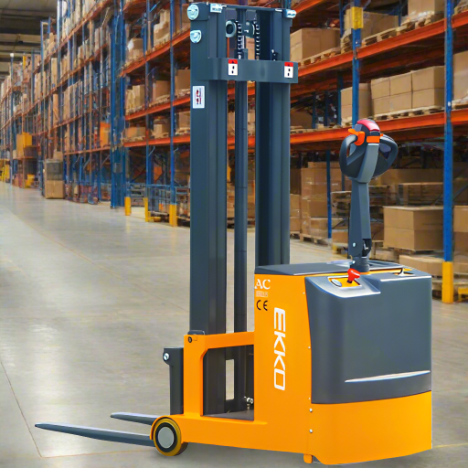

The EKKO EK07S is a fully powered counterbalanced walkie stacker designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a lightweight, compact no-outrigger stacking unit with a 1,550 lb. capacity and 118-inch lift height. At 84.7 inches overall length and 34.5 inches overall width with a 51-inch turning radius, this is the most compact counterbalanced stacker in the EKKO lineup, suited for tight aisle applications and space-constrained facilities where larger counterbalanced units cannot operate. The counterbalanced frame eliminates straddle legs entirely, allowing the unit to pick and place pallets from low-clearance racking and floor-level positions, powered by a 24V AC 0.75 kW drive motor, 24V 1.5 kW lift motor, and Curtis controller with an on-board 24V / 20A charger included. Battery, on-board charger, and a 3-year limited warranty are included standard.
- 1,550 lb. Capacity with 118 in. Maximum Lift Height - Rated for 1,550 lbs at a 20 in. load center with a maximum lift height of 118 in. and a lowered mast height of 81.1 in. for low-clearance aisle and door entry
- Counterbalanced Design — No Straddle Legs Required - The counterbalanced frame eliminates outrigger arms and straddle legs, allowing the unit to place and retrieve loads from ground-level racking with restricted clearance where standard straddle stackers cannot operate
- Compact 51 in. Turning Radius with 84.7 in. Overall Length - At 34.5 in. overall width, 84.7 in. overall length, and a 51 in. turning radius, the EK07S is the most maneuverable counterbalanced stacker in the EKKO product line and suited for confined storage environments
- 24V AC 0.75 kW Drive and 1.5 kW Lift Motor with Curtis Controller - Equipped with a 24V AC 0.75 kW drive motor and 24V 1.5 kW lift motor controlled by a Curtis controller for fully powered drive and lift operation with polyurethane wheels for smooth indoor floor performance
- 24V / 120Ah Battery and On-Board 24V / 20A Charger Included - Ships with a 24V / 120Ah battery and an on-board 24V / 20A charger at no additional cost, with a service weight of 2,090 lbs and a robotically welded steel frame backed by a 3-year limited warranty

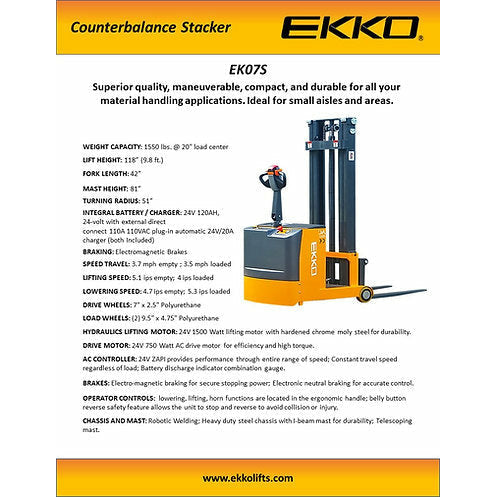

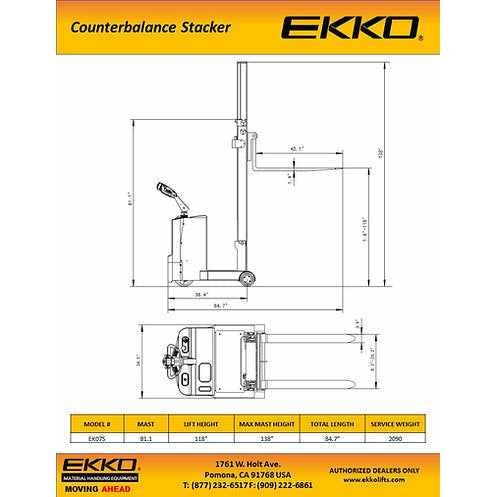

Product Specifications:
| Model Number | EK07S |
| Product Type | Fully Powered Counterbalanced Walkie Stacker |
| Load Capacity | 1,550 lbs |
| Load Center | 20 in. |
| Lift Height | 118 in. |
| Mast Overall Height (Lowered) | 81.1 in. |
| Overall Length | 84.7 in. |
| Overall Width | 34.5 in. |
| Turning Radius | 51 in. |
| Service Weight | 2,090 lbs |
| Fork Size (Thick / Width / Length) | 1.4 in. x 2.9 in. x 42 in. |
| Fork Adjust Width | 8.3 in. – 25.2 in. |
| Power Type | Electric |
| Battery | 24V / 120Ah (Included) |
| On-Board Charger | 24V / 20A (Included) |
| Drive Motor | 24V / 0.75 kW AC |
| Lift Motor | 24V / 1.5 kW |
| Controller | Curtis |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
