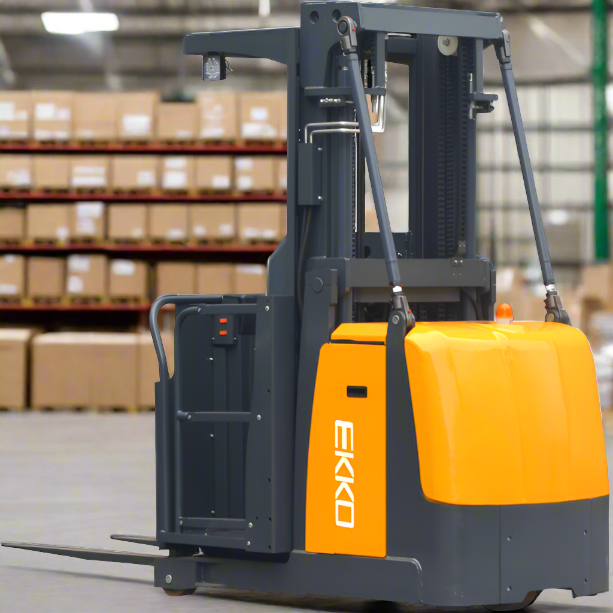

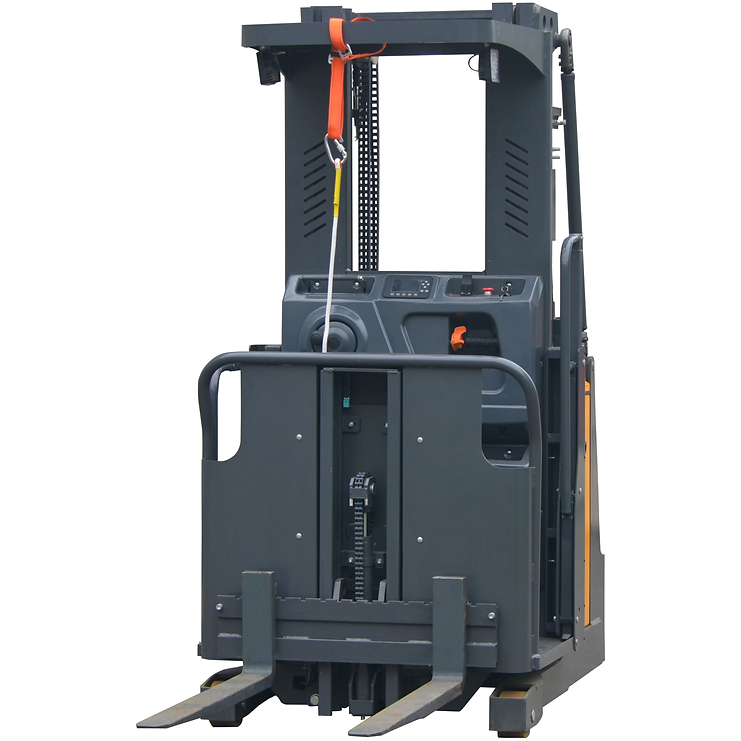

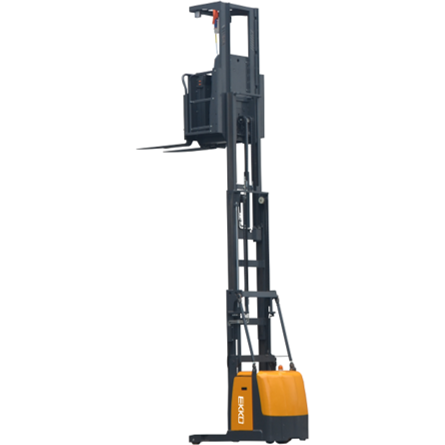

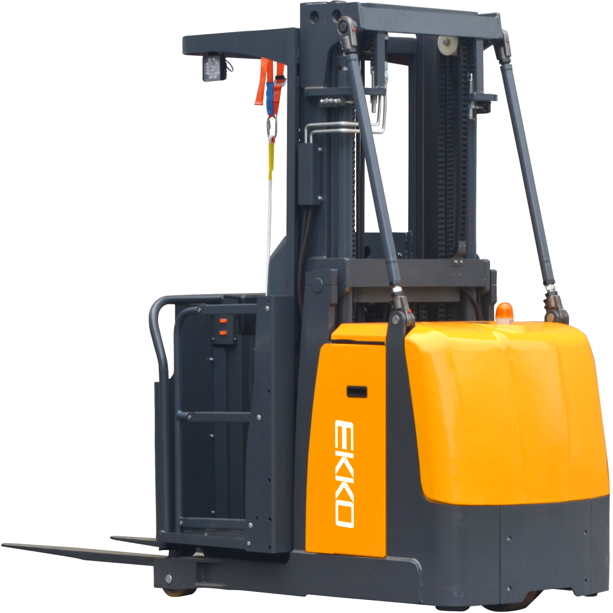

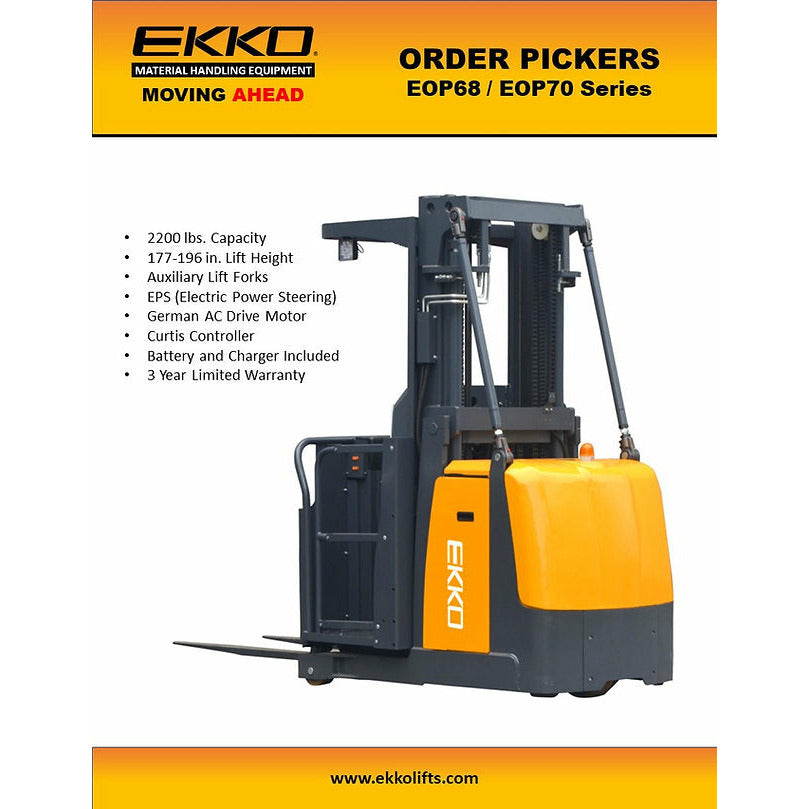

EKKO EOP70 42" Fork Electric Mid-Level Order Picker with 196" Lift and 2200 lb Load Capacity
The EKKO EOP70 is a fully electric mid-level order picker designed for high-density warehouses, distribution centers, racking storage facilities, and manufacturing environments requiring an operator-elevated picking unit with a 2,200 lb. load capacity and 196-inch platform lift height. Powered by a 24V / 350Ah lead acid battery with a German AC drive motor, Curtis controller, and Electronic Power Steering, the unit elevates both the operator and forks simultaneously for direct access to upper-level racking positions, with a maximum picking height of 258 in. and a total lift height of 227 in. The triple mast configuration, adjustable forks, auxiliary fork, and 61.81 in. turning radius make this unit suited for standard warehouse aisle configurations where pallet-level order retrieval at height is required continuously throughout a shift. Battery, charger, and a 3-year limited warranty are included standard.
- 2,200 lb. Capacity with 196 in. Lift Height and 258 in. Picking Height - Rated for 2,200 lbs at a 19.68 in. load center with a fork lift height of 196 in., a total lift height of 227 in., and a maximum picking height of 258.01 in. for operator-level access to upper-tier racking
- German AC Drive and Lift Motors with Curtis Controller - Equipped with a 3 kW German AC drive motor, 6 kW lift motor, Curtis controller, Electronic Power Steering, and electromagnetic brake for controlled, responsive operation at elevated picking heights
- Triple Mast with Adjustable and Auxiliary Forks - Triple mast configuration with adjustable forks and an auxiliary fork provides precise load positioning across varied pallet sizes, with a fork size of 1.37 in. x 3.93 in. x 42.13 in.
- 61.81 in. Turning Radius with Standard Aisle Compatibility - With a 61.81 in. turning radius and 39.37 in. overall width, the EOP70 operates in aisles as narrow as 122.24 in. for crossways pallets and 126.77 in. for lengthways pallets
- 24V / 350Ah Battery and Charger Included - Ships with a 24V / 350Ah industrial lead acid battery and 24V / 50A charger at no additional cost, with a service weight of 6,600 lbs and an operator noise level rated at 75 dB(A) or below
- Model Number
- EOP70
- Product Type
- Electric Mid-Level Stand-On Order Picker
- Load Capacity
- 2,200 lbs
- Load Center
- 19.68 in.
- Lift Height (Fork)
- 196 in.
- Total Lift Height
- 227 in.
- Maximum Picking Height
- 258.01 in.
- Platform Lifting Height
- 206.87 in.
- Mast Type
- Triple Mast
- Mast Overall Height (Lowered)
- 93.11 in.
- Extended Mast Height
- 285 in.
- Overhead Guard Height
- 89.48 in.
- Overall Length
- 111.41 in.
- Body Length
- 69.29 in.
- Overall Width
- 39.37 in.
- Wheelbase
- 53.46 in.
- Turning Radius
- 61.81 in.
- Min. Aisle Width (Crossways Pallet)
- 122.24 in.
- Min. Aisle Width (Lengthways Pallet)
- 126.77 in.
- Ground Clearance
- 1.97 in.
- Service Weight (with Battery)
- 6,600 lbs
- Fork Size (Thick / Width / Length)
- 1.37 in. x 3.93 in. x 42.13 in.
- Max Travel Speed
- 8 km/h
- Climbing Ability (Laden / Unladen)
- 3% / 6%
- Power Type
- Electric
- Battery
- 24V / 350Ah Lead Acid (Included)
- Charger
- 24V / 50A (Included)
- Drive Motor
- 3 kW German AC
- Lift Motor
- 6 kW
- Controller
- Curtis Instrument
- Steering
- EPS (Electronic Power Steering)
- Brake Type
- Electromagnetic
- Tire Type
- Polyurethane
- Noise Level (at Operator)
- ≤75 dB(A)
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
