THE BEST CHOICE FOR NARROW SITE
- 650-watt drive motor, 2,200-watt lift motor.
- Curtis (US Brand) Controller.
- Use GEL battery free to maintain.

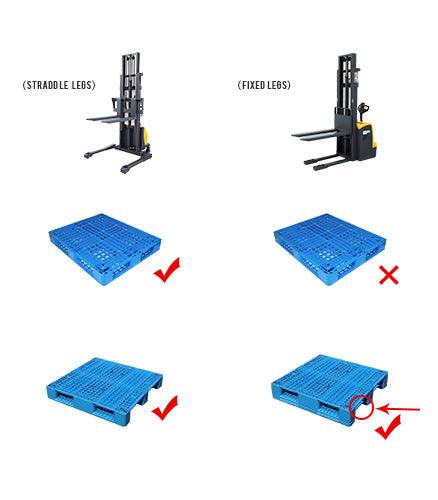

- Fixed forks suits for EU type pallet.
- Both sides of button for lifting and lowering operation.
- Red dot and IF design award winner
*FULLY POWERED STACKER
| MODEL NO. | LOAD CAPACITY | BATTERY CAPACITY | HEIGHT RAISED | WHEEL DIAMETER | WT(LBS) | PRICE EACH |
|
A-3038 |
2,640 lbs | 24V/105AH | 98'' | 7.7" | 1,250 | $5437 |
|
A-3042 |
2,640 lbs | 24V/105AH | 118'' | 7.7" | 1,270 | $5737 |
| A-3022 | 3,300 lbs | 24V/125AH | 98'' | 7.7" | 1,420 | $6497 |
| A-3023 | 3,300 lbs | 24V/125AH | 118'' | 7.7" | 1,466 | $6797 |
| A-3035 | 2,640lbs | 24V/60AH | 118" | 7.7" | 1,270 | $6237 |
*SHIPS ASSEMBLED VIA MOTOR FREIGHT
*REPLACEMENT PARTS
| MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | DIMENSIONS | PRICE EACH | 2 PCS PRICE |
| S-1005 | Gel Battery | 24V/105AH | 115 | 10.2x6.6x8.5" | $600 | $1,150 |
DIMENSIONS:
- Overall Length：68.8"
- Overall Width: 31.5''
- Recommended Aisle Width：87.3"
- Turning Radius: 53.7"
- Mast Height Lowered:82.2''
- Mast Height Raised: 140.1''
- Load Center: 23.6"
FORKS:
- Fork height, Lowered: 3.5''
- Thickness: 2.3''
- Single fork width: 6.7''
- Overall forks width: 27.3"
- Length: 45''
FEATURES:
- Smooth rolling polyurethane wheels.180° steering arc.
- 110V Built-in Charger.
- 6 hours service per charge: two 12-volt, 125 Ah rechargeable GEL batteries.
SPEED:
- Travel speed(laden/unladen) : 2.8/3.1mph
- Lifting speed(laden/unladen) : 4.3/5.5inch/s
- Lowering speed(laden/unladen) : 4.7/3.9inch/s
SPECIFICATIONS:
- Not explosion proof.
- This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
