How to Protect Pallet Racking From Forklift Damage: 4 Questions That Pick the Guard (With OSHA Rules and Real Prices)

The cheapest way to protect pallet racking from forklift damage is a guard on the bottom of the upright, starting at the ends of the rows, because that is where the forks and the counterweight make contact. On Warehouse Gear Hub, a floor-anchored 1/4 inch steel Valley Craft Universal Post Protector is $39.00 at 12 inches, $49.00 at 18 inches, and $59.00 at 24 inches; a magnetic UltraTech 2374 Rack Protector Plus that holds to the upright with no drilling is $42.00; and the UltraTech protectors for the building around the rack run from $63.00 for a wall protector to $137.00 for an 8 inch bollard sleeve. The four questions below take you from the dent you keep seeing to the part number, with 29 CFR 1910.176 quoted from the regulation, OSHA's own warehousing guidance on upright guards, the Rack Manufacturers Institute's placement advice, and every dimension from the manufacturer's spec page or our product listing.

What does OSHA require to protect pallet racking from forklift damage?

No OSHA standard says "install rack guards." The rule that applies is 29 CFR 1910.176(b), Secure storage: "Storage of material shall not create a hazard. Bags, containers, bundles, etc., stored in tiers shall be stacked, blocked, interlocked and limited in height so that they are stable and secure against sliding or collapse." A loaded rack standing on a crushed upright is storage that creates a hazard, and that sentence is the hook.

OSHA's own warehousing guidance spells out the fix. Its Warehousing: Hazards and Solutions page lists, under materials storage and handling: "Install rack upright guards to prevent damage from incidental forklift contact," and one line above it: "Inspect and maintain shelving and racking to prevent collapse. If damage occurs, immediately isolate the affected area." The agency's Warehousing: Know the Law page lists the enforcement tools behind that advice: the general duty clause, under which employers "can be cited for violation of this section if a recognized serious hazard exists in their workplace" and "the employer does not take reasonable steps to prevent or abate the hazard," and the National Emphasis Program on Warehousing and Distribution Center Operations, CPL 03-00-026.

The same page lists ANSI MH16.1, "Specification for the Design, Testing, and Utilization of Industrial Steel Storage Racks," as the consensus standard for racks, with OSHA's note that "These are NOT OSHA regulations and compliance with them does not imply compliance with applicable OSHA standards." In practice the Rack Manufacturers Institute standard is the document that defines when a struck upright is damaged enough to unload, which Question 4 covers. So the regulation does not name a guard, OSHA's guidance recommends one, and the consensus standard tells you what it costs when you skip it.

Question 1: Where does the forklift actually hit the rack?

Low, and at the ends. A Damotech case study published through MHI describes a warehouse manager whose rack survey found that "damage to the upright columns consistently occurred below 12 inches," and the fix was 24 inch steel guards on the columns that had not been hit yet. That is the fork and carriage zone of a counterbalanced truck entering a bay, and it is where the base plate and the lowest brace of the frame sit. Read the case study for the layout; the number to keep is 12 inches.

The Rack Manufacturers Institute's rack safety site puts the locations in order. Guarding "can be applied to the aisle-side face of the rack column" where uprights take impact from loads and reversing vehicles, and "it can be installed at the ends of rack rows to protect corners a vehicle must navigate." Uprights at cross-aisles and in rack tunnel bays "are at higher risk because of the higher traffic entering and exiting aisles," per RMI's column guard article. So the order of purchase is: every end-of-row upright on the aisle side first, then tunnel bay and cross-aisle uprights, then the aisle-side face of every upright on lanes where trucks travel at speed. RMI's own publication, the article notes, lists "more than 20 different options" for protective accessories in its section 3.4.2, and factory-installed column inserts "range from 12 inches to 5 feet tall." For a rack that is already standing, a guard is the retrofit.

Height is the decision this question settles. The Valley Craft Universal Post Protector comes in 12, 18, and 24 inch heights, and the UltraTech 2374 Rack Protector Plus is 15.5 inches per unit and stacks. Buy 12 inches where the only contact is fork tips at floor level on a slow pick aisle. Buy 24 inches, or two stacked magnetic units, on aisle ends and anywhere a truck turns in with a load, since the case study above chose 24 inches to cover damage that happened below 12.

Question 2: Bolt-down steel or magnetic polyethylene?

Both guards do the same job at the same height, and they fail in different ways, which is the real choice. A floor-anchored steel guard takes the hit instead of the upright and bends; a magnetic polyethylene guard takes the hit and either flexes back or pops off. RMI describes both families: "free standing column protectors, made of formed steel plates, wrap around the face and sides of the rack column" and are anchored to the floor, while attached guards of "steel, foam, or plastic" are fastened "with bolts, rivets, or straps directly to the column." The UltraTech unit replaces the straps with a magnet.

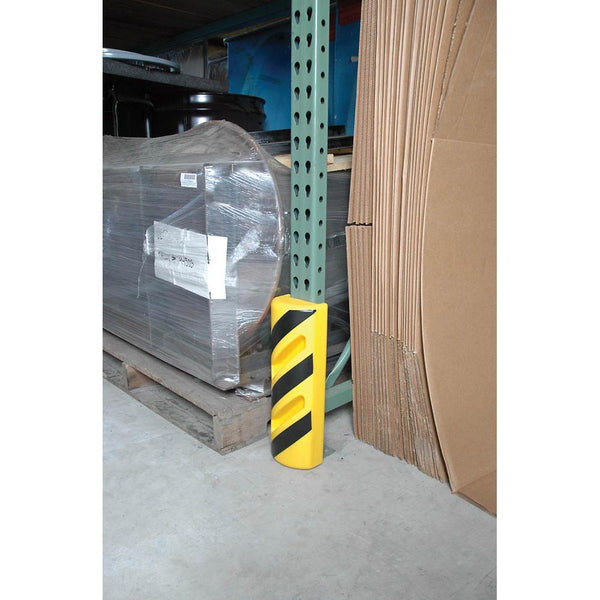

Per our listing, the Valley Craft Universal Post Protector is 1/4 inch (3 gauge) steel, fits posts up to 3.5 inches wide, ships fully assembled and powder coated, and mounts to the floor through pre-drilled holes with the hardware included. It is made in the USA. The 12, 18, and 24 inch versions are $39.00, $49.00, and $59.00. Per UltraTech's product data sheet, the 2374 Rack Protector Plus is polyethylene, 5.3 x 3.3 x 15.5 inches, 1.5 pounds, made for "industrial racking with supports up to 4 in. wide," held by "a very strong, heavy-duty magnet," and "multiple units can be stacked for added protection." UltraTech's product page adds that the magnet is rare earth and that no hardware or tools are needed. It is $42.00 each.

Two things decide between them. First, the floor. A bolt-down guard needs a slab you can drill, and it sits in front of the upright, in the aisle. RMI's caution is that "anchoring guards in front of the uprights may obstruct traffic" in narrow layouts, and 29 CFR 1910.176(a) requires that "sufficient safe clearances shall be allowed for aisles, at loading docks, through doorways and wherever turns or passage must be made." Measure the aisle with the guard's footprint in it before you order forty. Second, the hit. A 1/4 inch steel plate anchored to concrete stops a truck; a 1.5 pound polyethylene shell cushions a glancing blow and marks the column in safety yellow so the operator sees it. Put steel where trucks turn in at speed, and magnetic units on pick aisles, on uprights you cannot drill in front of, and on leased floors where the landlord does not want anchor holes.

Guard we stock	Material	Height	Fits upright	Mounting	Stacks	Price as listed
Valley Craft Universal Post Protector, 12 in	1/4 in steel (3 gauge), powder coated	12 in	Up to 3.5 in wide	Floor anchored, pre-drilled, hardware included	No	$39.00
Valley Craft Universal Post Protector, 18 in	1/4 in steel (3 gauge), powder coated	18 in	Up to 3.5 in wide	Floor anchored, pre-drilled, hardware included	No	$49.00
Valley Craft Universal Post Protector, 24 in	1/4 in steel (3 gauge), powder coated	24 in	Up to 3.5 in wide	Floor anchored, pre-drilled, hardware included	No	$59.00
UltraTech 2374 Rack Protector Plus, Magnetic	Polyethylene, 1.5 lb	15.5 in per unit	Up to 4 in wide	Rare earth magnet, no tools, no drilling	Yes	$42.00

Question 3: What else in the building gets hit?

The uprights are not the only steel in the lane. Building I-beam columns, dock door corners, walls along a travel lane, and the bollards you already set at aisle ends take the same hits, and a bent building column is a structural engineer's problem, not a rack dealer's. UltraTech makes a polyethylene protector for each, and all of them install without a welder.

Per UltraTech's I-beam protector page, the 1521 is 7 x 7.3 x 36 inches and 8 pounds, slides onto a single flange with a molded friction-fit groove, needs only a screwdriver as a wedging tool, is not recommended by UltraTech for flanges thicker than 1/2 inch, and four units "cover a fully exposed I-beam for 360-degree protection," with units stackable for height. It is $74.00 each. The 1523 Corner Protector is 5.8 x 5.6 x 42 inches of safety yellow HDPE at 5 pounds with a hardware kit for different surfaces, per its spec page, at $75.00; the 1522 Wall Protector is the flat version with a 2 inch depth per our listing, at $63.00.

The 1525 through 1528 Post Protector Plus sleeves slide over 4, 6, 7, and 8 inch steel bollards. Per UltraTech's post protector page, they are linear low-density polyethylene, 52 inches tall, with a 1/8 inch wall on the 4 and 6 inch sizes and a 1/4 inch wall on the 7 and 8 inch sizes, held in place by two bands of foam neoprene tape, with a UV inhibitor in the resin. The page also gives the sizing check: steel pipe is sized by inside diameter, so the bollard measures 1/2 to 5/8 inch larger outside, and you get the post diameter by dividing the measured circumference by 3.14. They are $65.00, $67.00, $133.00, and $137.00, and they end the repaint cycle on a scraped bollard.

Protector we stock	Protects	Size, per UltraTech	Material	Mounting	Price as listed
UltraTech 1521 I-Beam Protector	Building I-beam columns, one flange per unit	7 x 7.3 x 36 in, 8 lb	Polyethylene	Friction-fit groove on the flange, no hardware	$74.00
UltraTech 1523 Corner Protector	Building and dock door corners	5.8 x 5.6 x 42 in, 5 lb	HDPE	Hardware kit included	$75.00
UltraTech 1522 Wall Protector	Walls along travel lanes	2 in depth, per our listing	Polyethylene	Hardware kit for masonry or metal	$63.00
UltraTech 1525 Post Protector Plus, 4 in	4 in steel bollards	5.25 x 5.25 x 52 in, 1/8 in wall	LLDPE	Slides over the post, neoprene tape bands	$65.00
UltraTech 1526 Post Protector Plus, 6 in	6 in steel bollards	7.25 x 7.25 x 52 in, 1/8 in wall	LLDPE	Slides over the post, neoprene tape bands	$67.00
UltraTech 1527 Post Protector Plus, 7 in	7 in steel bollards	8.25 x 8.25 x 52 in, 1/4 in wall	LLDPE	Slides over the post, neoprene tape bands	$133.00
UltraTech 1528 Post Protector Plus, 8 in	8 in steel bollards	9.375 x 9.375 x 52 in, 1/4 in wall	LLDPE	Slides over the post, neoprene tape bands	$137.00

Question 4: What happens after the hit?

A guard that took a hit did its job, and the next step is a look at the upright behind it. OSHA's warehousing page says: "If damage occurs, immediately isolate the affected area." ANSI MH16.1 is more specific. A rack inspection guide hosted by MHI quotes the 2012 edition: "Upon visible damage, the pertinent portions of the rack shall be unloaded immediately and removed from service," and sets the repair trigger at column deflection over 1/2 inch in either the down-aisle or front-to-back direction, with corner damage the most critical kind. The same guide calls for "a minimum of one anchor per footplate or per manufacturer's requirements" and tells inspectors to look for missing, loose, or sheared anchors, so check the base plate as well as the column.

That is where the price of a guard gets measured. One rack repair contractor, SRS, publishes installed costs of $165 to $285 to repair an upright and $235 to $350 to replace one, before the labor to unload the bay. A $59.00 steel guard or a $42.00 magnetic one in front of an end-of-row upright costs less than the first repair on that upright. Buy guards for the uprights with no dents yet. The ones already bent need an engineer, not a cover.

Guards also do not fix the truck. RMI's page is direct: "they are no substitute for properly training operators to operate forklifts with care." The rules the operator is already under are in 29 CFR 1910.178(n): "All traffic regulations shall be observed, including authorized plant speed limits," the driver "shall be required to slow down and sound the horn at cross aisles and other locations where vision is obstructed," "under all travel conditions the truck shall be operated at a speed that will permit it to be brought to a stop in a safe manner," and "while negotiating turns, speed shall be reduced to a safe level." A rack that keeps getting hit at the same end of the same aisle is a layout or a speed problem with a guard on it. Our walkie stacker vs forklift guide covers the aisle widths each truck needs. And inspect the guards: RMI says "any damage to the guards should be noted, reported, and promptly repaired or replaced" during routine rack inspections.

Which rack protector should you buy?

Match the upright to the line that describes it.

• End-of-row uprights where trucks turn in with a load: Valley Craft Universal Post Protector, 24 inch ($59.00). Floor-anchored 1/4 inch steel, two per double row end.
• Aisle-side uprights with fork-tip contact only: Valley Craft 12 inch ($39.00) or one UltraTech 2374 Rack Protector Plus ($42.00).
• Loaded racks you cannot drill in front of, narrow aisles, leased floors: UltraTech 2374, one or two stacked, on uprights up to 4 inches wide.
• Building columns in a travel lane: UltraTech 1521 I-Beam Protector ($74.00), four per fully exposed column, two stacked where raised forks reach.
• Dock door corners, building corners, and the wall between them: UltraTech 1523 Corner Protector ($75.00) and 1522 Wall Protector ($63.00).
• Bollards you repaint every year: UltraTech Post Protector Plus sized to the post, 4 inch ($65.00), 6 inch ($67.00), 7 inch ($133.00), or 8 inch ($137.00). Measure the circumference first.

The steel guards are in the Valley Craft collection, and the magnetic rack protector, bollard sleeves, corner protector, and wall protector are in the Rack Protector, Post Protector, Column Protectors, and Wall Protector collections. If the same racks hold drums, our pallet rack spill containment guide covers the sump that goes on the beam above the guard. For a full row count, call 1-800-794-1049, 8 AM to 4 PM Central, with the number of aisle ends, the upright width, and whether you can drill the slab. We price match authorized US dealers and quote volume and B2B orders in writing.

Frequently Asked Questions

Does OSHA require pallet rack protectors?

No standard names them. 29 CFR 1910.176(b) requires that "storage of material shall not create a hazard," and OSHA's Warehousing: Hazards and Solutions page lists "install rack upright guards to prevent damage from incidental forklift contact" as the way to meet it. Under the general duty clause, OSHA's Know the Law page says employers can be cited when a recognized serious hazard exists and "the employer does not take reasonable steps to prevent or abate the hazard." A row of uprights with repeat forklift dents and no guards is that situation.

How tall should a pallet rack column protector be?

Tall enough to cover where the truck makes contact. The Damotech case study published through MHI found upright damage "consistently occurred below 12 inches" and installed 24 inch guards. The Valley Craft Universal Post Protector comes in 12, 18, and 24 inches; the UltraTech 2374 Rack Protector Plus is 15.5 inches and stacks to 31. Use 12 inches on slow pick aisles with fork-tip contact and 24 inches, or two stacked magnetic units, at aisle ends and anywhere a loaded truck turns in.

Can you install rack protectors without unloading the rack?

Yes, on an undamaged upright. The UltraTech 2374 attaches with its magnet and needs no tools, and the Valley Craft guard anchors to the floor in front of the upright through its pre-drilled holes, so neither touches the load. If the upright is already visibly damaged, ANSI MH16.1 as quoted in the MHI-hosted inspection guide says "the pertinent portions of the rack shall be unloaded immediately and removed from service," and the repair comes before the guard.

Will a magnetic rack protector hold on a painted upright?

The magnet grips the steel through paint, and UltraTech's data sheet describes it as "a very strong, heavy-duty magnet" on a 1.5 pound unit for racking up to 4 inches wide. UltraTech does not publish a pull-force figure, so on a column with heavy scale, a vinyl wrap, or a width over 4 inches, test one unit before you order a case.

What do you do with a bent rack upright?

Isolate it, unload it, and measure it. OSHA's warehousing page says "If damage occurs, immediately isolate the affected area." The MHI-hosted inspection guide puts the repair trigger at deflection over 1/2 inch down-aisle or front-to-back, and SRS publishes installed costs of $165 to $285 to repair an upright and $235 to $350 to replace one. A guard goes on after the repair, not instead of it.

How much do pallet rack protectors cost?

On Warehouse Gear Hub as of this writing, the Valley Craft Universal Post Protector is $39.00 at 12 inches, $49.00 at 18 inches, and $59.00 at 24 inches; the UltraTech 2374 magnetic Rack Protector Plus is $42.00; the 1521 I-Beam Protector is $74.00; the 1523 Corner Protector is $75.00; the 1522 Wall Protector is $63.00; and the Post Protector Plus bollard sleeves are $65.00 to $137.00 by post size. Start with two 24 inch steel guards per double-row end.
